ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories

← Back to categories

4,383 items

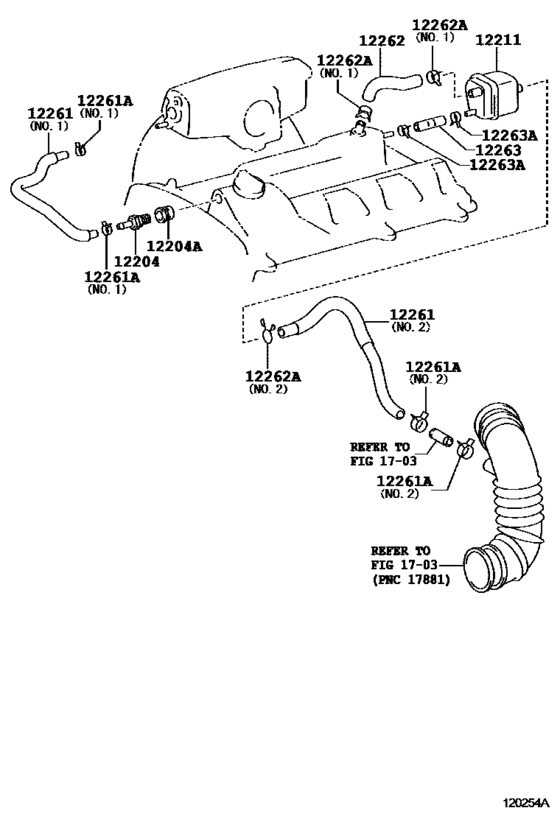

Ventilation Hose ([09.2002 - ] (0209- )3SGTE) 12

#	OEM	Part name
12204	12204-88581	Valve Sub-Assy, Ventilation
12204	90480-18008	Grommet(For Ventilation System)
12211	12211-88480	Case, Ventilation, No.1
12261	12261-74290	Hose, Ventilation
12261	12261-88581	Hose, Ventilation
12261	90467-14037	Clip Or Clamp(For Ventilation Hose)
12261	96134-52600	Clip Or Clamp(For Ventilation Hose)
12262	12262-88580	Hose, Ventilation, No.2
12262	90467-24038	Clip(For Ventilation Tube)
12262	90467-26007	Clip(For Ventilation Hose No.2)
12263	12263-88580	Hose, Ventilation, No.3
12263	90467-15004	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
12204-88581	Valve Sub-Assy, Ventilation	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
12211-88480	Case, Ventilation, No.1	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
12261-74290	Hose, Ventilation	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
12261-88581	Hose, Ventilation	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
12262-88580	Hose, Ventilation, No.2	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
12263-88580	Hose, Ventilation, No.3	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
90467-14037	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
90467-15004	Clip(For Ventilation Hose No.2)	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
90467-24038	Clip(For Ventilation Tube)	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
90467-26007	Clip(For Ventilation Hose No.2)	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
90480-18008	Grommet(For Ventilation System)	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
96134-52600	Clip Or Clamp(For Ventilation Hose)	Ventilation Hose ([09.2002 - ] (0209- )3SGTE)
