ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories
ST246 ×

← Back to categories

4,383 items

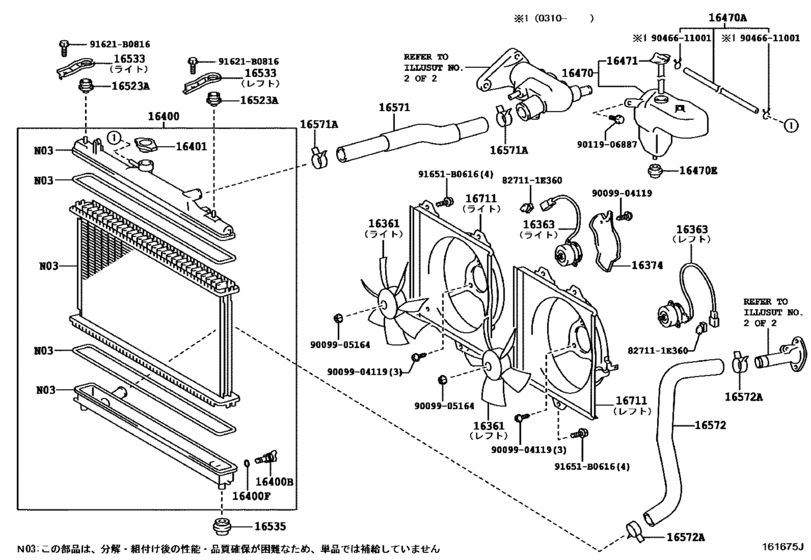

Radiator & Water Outlet ([09.2002 - ] (0209- )3SGTE) 68
#OEMPart name
0 82711-1E360 Clamp, Wiring Harness
16027 16027-88580 Pipe Sub-Assy, Turbo Water, No.1
16261 16261-88460 Hose, Water By-Pass
16261 90467-23009 Clip Or Clamp(For Ventilation Hose)
16261 96134-41900 Clip Or Clamp(For Ventilation Hose)
16267 16267-88581 Hose, Water By-Pass, No.3
16267 90467-13073 Clamp Or Clip, Hose(For Water By-Pass Hose)
16267 90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)
16268 16268-88581 Pipe, Water By-Pass, No.1
16268 96761-24019 Ring, O(For Water By-Pass Pipe)
16278 16278-88580 Pipe, Water By-Pass, No.2
16281 16281-88580 Hose, Water By-Pass, No.4
16281 90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)
16283 16283-88580 Hose, Water By-Pass, No.6
16284 16284-88580 Hose, Turbo Water, No.1
16284 90467-15004 Clip(For Ventilation Hose No.2)
16285 16285-88480 Hose, Turbo Water, No.2
16295 16295-74020 Hose, Water By-Pass, No.7
16321 16321-88460 Inlet, Water
16331 16304-88580 Outlet, Water
16331 90916-03100 Thermostat
16341 16341-88460 Gasket, Water Outlet
16346 16346-32010 Gasket, Water Inlet Housing, No.1
16347 16347-88380 Gasket, Water By-Pass
16361 16361-64060 Fan
16361 16361-74130 Fan
16363 16363-74380 Motor, Cooling Fan
16363 16363-74390 Motor, Cooling Fan
16374 16374-64110 Insulator, Cooling Fan Motor
16400 16400-7A670 Radiator Assy
16400 23322-54010 Plug,air(For Oil Cooler Drain Cock)
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16401 16401-72090 Cap Sub-Assy, Radiator
16401 16401-20353 Cap Sub-Assy, Radiator
16401 16401-36030 Cap Sub-Assy, Radiator
16470 16470-22060 Tank Assy, Radiator Reserve
16470 16567-22010 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12078 Hose(For Radiator Breather)
16470 90480-18010 Grommet, Radiator Reserve Tank Hose
16471 16405-22040 Cap Sub-Assy, Radiator Reserve Tank
16523 16523-74010 Cushion, Sub-Radiator Support
16533 16533-74330 Support, Radiator, Upper
16533 16533-74340 Support, Radiator, Upper
16535 16535-74230 Support, Radiator, Lower
16571 16571-74540 Hose, Radiator, Inlet
16571 90467-34003 Clip(For Oil Return Hose)
16571 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16571 96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-74360 Hose, Radiator, Outlet
16607 16631-88580 Bracket Sub-Assy, Idler Pulley, No.1
16636 90109-08191 Bolt(For Idler Pully Tension)
16711 16711-74740 Shroud, Fan
16711 16711-74750 Shroud, Fan
91511 91511-B0812 BOLT FLANGE
91621 91621-B0816 BOLT WWASHER
91641 91641-H0840 New Genuine Part
91641 91641-K0822 BOLT WWASHER
91643 91643-H0822 New Genuine Part
91643 91641-H0822 New Genuine Part
91651 91651-B0616 BOLT WWASHER
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9011906887 90119-06887 New Genuine Part
9017906311 90179-06311 New Genuine Part
9017908150 90179-08150 NUT
9046611001 90466-11001 Clamp Or Clip(For Radiator Reserve Tank Hose)
9164180855 91641-80855 Bolt
9415080630 94150-80630 New Genuine Part
