ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories
ST246 ×

← Back to categories

4,383 items

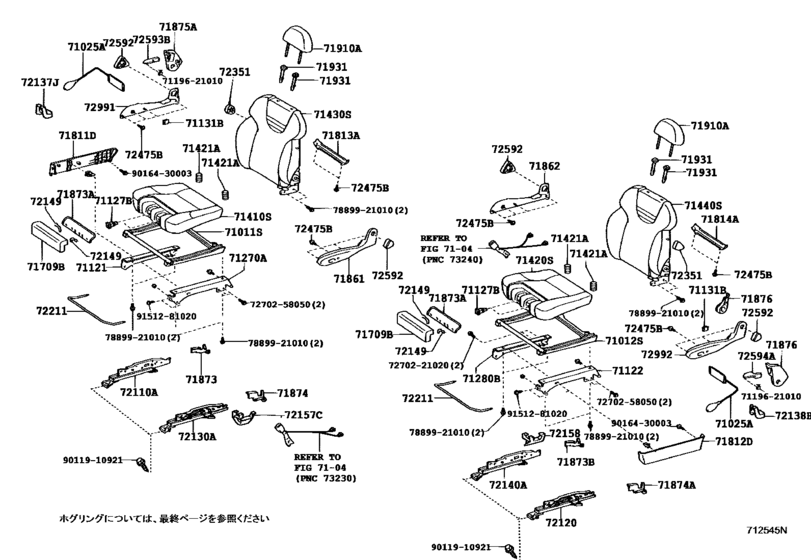

Front Seat & Seat Track ([09.2002 - ] ﾚｶﾛ ｼ-ﾄ (0209- )ST246) 80
#OEMPart name
71011 71011-21030 Frame Sub-Assy, Front Seat Cushion, Rh
71025 71025-21010 Bracket Sub-Assy, Front Seat Back
71121 71121-21030 Bracket, Front Seat Cushion, Rh
71122 71122-21010 Bracket, Front Seat Cushion, Lh
71127 71127-21010 Plate, Fr Seat Cushion Protector Set
71131 71131-21020 Plate, Front Seat Cushion, No.1
71270 71270-21010 Bracket Assy, Seat, Inner Rh
71280 71280-21010 Bracket Assy, Seat, Inner Lh
71410 71410-21330 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-21332 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-21331 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-21430 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-21390 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-21392 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-21391 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-21500 Cushion Assy, Front Seat, Lh (For Separate Type)
71421 71421-21010 Spring, Front Seat Cushion
71430 71430-21320 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-21322 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-21321 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-21440 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-21220 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-21222 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-21221 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-21330 Back Assy, Front Seat, Lh(For Separate Type)
71709 71709-21010 Cushion Sub-Assy, Seat Support
71709 71709-21011-C0 Strap Sub-assy, 3rd Seat Back
71709 71709-21010-B0 Cushion Sub-Assy, Seat Support
71709 71709-21011-B0 Cushion Sub-Assy, Seat Support
71811 71811-21030-C0 Shield, Front Seat Cushion, Rh
71811 71811-21030-B2 Shield, Front Seat Cushion, Rh
71811 71811-21040-C0 Shield, Front Seat Cushion, Rh
71812 71812-21030-C0 Shield, Front Seat Cushion, Lh
71812 71812-21030-B2 Shield, Front Seat Cushion, Lh
71812 71812-21040-C0 Shield, Front Seat Cushion, Lh
71813 71813-21010 Shield, Front Seat Back, Rh
71814 71814-21010 Shield, Front Seat Back, Lh
71861 71861-21010-C0 Shield, Front Seat Cushion, Inner Rh
71861 71861-21020 Shield, Front Seat Cushion, Inner Rh
71862 71862-21010-C0 Shield, Front Seat Cushion, Inner Lh
71862 71862-21020 Shield, Front Seat Cushion, Inner Lh
71873 71873-21010-C0 Shield, Front Seat Cushion, Lower Rh
71873 71873-21020 Shield, Front Seat Cushion, Lower
71874 71874-21010-C0 Shield, Front Seat Cushion, Lower Lh
71875 71875-21020 Cover, Reclining Adjuster Inside, Rh
71875 71875-52030-C0 Cover, Reclining Adjuster Inside, Rh
71876 71876-21020 Cover, Reclining Adjuster Inside, Lh
71876 71876-52030-C0 Cover, Reclining Adjuster Inside, Lh
71910 71910-21130-C0 Headrest Assy, Front Seat
71910 71910-21320-C0 Headrest Assy, Front Seat
71910 71910-21150-B1 Headrest Assy, Front Seat
71910 71910-21360-B0 Headrest Assy, Front Seat
71910 71910-21150-C0 Headrest Assy, Front Seat
71910 71910-21360-C0 Headrest Assy, Front Seat
71931 71930-47010-C0 Support, Front Seat Headrest
71931 71931-47010-C0 Support Assy, Rear Seat Legrest
72110 72110-21060 Track Assy, Front Seat, Outer Rh
72120 72120-21070 Track Assy, Front Seat, Outer Lh
72130 72130-21090 Track Assy, Front Seat, Inner Rh
72137 72137-21010 Cover, Front Seat Track, Rh Rear Outer
72140 72140-21080 Track Assy, Front Seat,inner Lh
72149 72149-21010 Pin, Fr Seat Location
72157 72157-21010 Cover, Seat Track Bracket, Inner Rh
72158 72158-21010 Cover, Seat Track Bracket, Inner Lh
72211 72211-21020 Handle, Seat Track Adjusting
72351 72351-21010 Handle, Side Support Adjusting
72475 72475-21010 Screw, Front Seat Horizontal Jack, Outer
72592 72592-21010 Knob, Reclining Adjuster
72593 72593-21010 Knob, Reclining Remote Control Lever, Rh
72594 72594-21010 Knob, Reclining Remote Control Lever, Lh
72991 72991-21010 Cover, Front Seat Cushion, Rh
72992 72992-21010 Cover, Front Seat Cushion, Lh
7119621010 71196-21010 Clip(for Rear Spoiler)
7270221020 72702-21020 Bracket Sub-assy, Rear Seat Back Striker
7270221020 72702-21030 Bracket Sub-assy, Rear Seat Back Striker
7270258050 72702-58050 Bracket Sub-assy, Rear Seat Back Striker
7889921010 78899-21010 Bolt, Front Seat
9011910921 90119-10921 BOLT WWASHER
9016430003 90164-30003 New Genuine Part
9151281020 91512-81020 BOLT FLANGE
