ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories

4,383 items

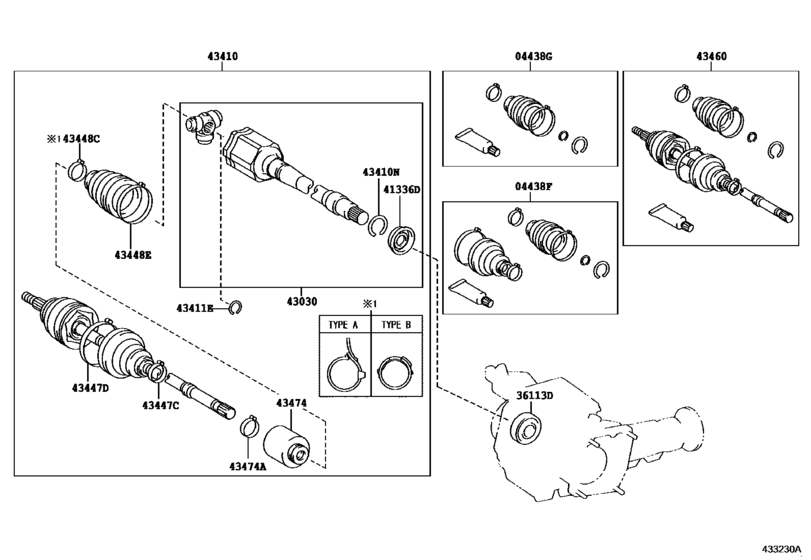

Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246) 28

#	OEM	Part name
4438	04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH
4438	04438-42081	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04428-42090	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-28041	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-42071	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-58030	Boot Kit, Front Drive Shaft Inboard Joint
36113	90311-34021	Seal, Oil (For Transfer Case Rh)
41336	41336-21010	Cover, Front Drive Shaft Dust, Rh
43030	43030-42021	Joint Assy, Front Drive Inboard, Rh
43410	43410-21090	Shaft Assy, Front Drive, Rh
43410	90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43460	43460-49167	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-28010	Damper, Drive Shaft
43474	43474-28030	Damper, Front Drive Shaft, Rh
43474	43474-48011	Damper, Drive Shaft
43474	43474-48080	Damper, Front Drive Shaft, Rh
43474	43474-48020	Damper, Drive Shaft
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04428-42070	Boot Kit, Front Drive Shaft, In & Outboard, LH	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
04428-42090	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
04438-28041	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
04438-28052	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
04438-42071	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
04438-42081	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
04438-58030	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
41336-21010	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43030-42021	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43410-21090	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43460-49167	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43474-28010	Damper, Drive Shaft	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43474-28030	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43474-48011	Damper, Drive Shaft	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43474-48020	Damper, Drive Shaft	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
43474-48080	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
90311-34021	Seal, Oil (For Transfer Case Rh)	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([09.2002 - ] ﾗｲﾄ (0209- )ST246)
