ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories
ST246 ×

← Back to categories

4,383 items

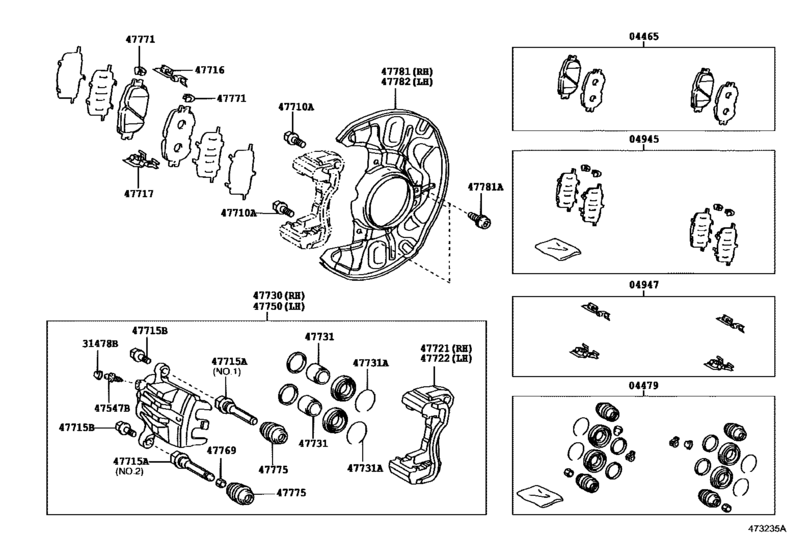

Front Disc Brake Caliper & Dust Cover ([09.2002 - ] (0209- )ST246) 25
#OEMPart name
4465 04465-21020 Pad Kit, Disc Brake, Front
4479 04478-21020 Cylinder Kit, Disc Brake, Front
4479 04479-33170 Cylinder Kit, Disc Brake, Front
4945 04945-21011 Shim Kit, Anti Squeal, Front
4947 04947-33180 Fitting Kit, Disc Brake, Front
31478 31478-30010 Bleeder Plug Cap
47547 47547-21030 Plug, Bleeder(For Front Disc Brake)
47710 90105-12208 Bolt, Hexagon(For Front Disc Brake Caliper)
47715 47715-22070 Pin, Front Disc Brake Cylinder Slide
47715 47715-33060 Pin, Front Disc Brake Cylinder Slide
47715 90105-08164 Bolt(For Front Disc Brake Cylinder Slide)
47716 47716-33130 Plate, Pad Support, No.1(For Front Disc Brake)
47717 47717-33100 Plate, Pad Support, No.2(For Front Disc Brake)
47721 47721-21020 Mounting, Front Disc Brake Cylinder, Rh
47730 47730-21020 Cylinder Assy, Front Disc Brake, Rh
47731 47731-33100 Piston, Front Disc Brake
47731 90520-51002 Ring, Set(For Front Disc Brake Piston)
47750 47750-21020 Cylinder Assy, Disc Brake, Lh
47769 47769-50010 Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771 47771-33020 Plate, Pad Wear Indicator, No.1
47775 47775-30070 Boot, Bush Dust(For Front Disc Brake)
47775 47775-50010 Boot, Bush Dust(For Front Disc Brake)
47781 47781-21030 Cover, Disc Brake Dust, Front Rh
47781 90119-06227 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782 47782-21030 Cover, Disc Brake Dust, Front Lh
