| 11101-88580 |
Head Sub-Assy, Cylinder |

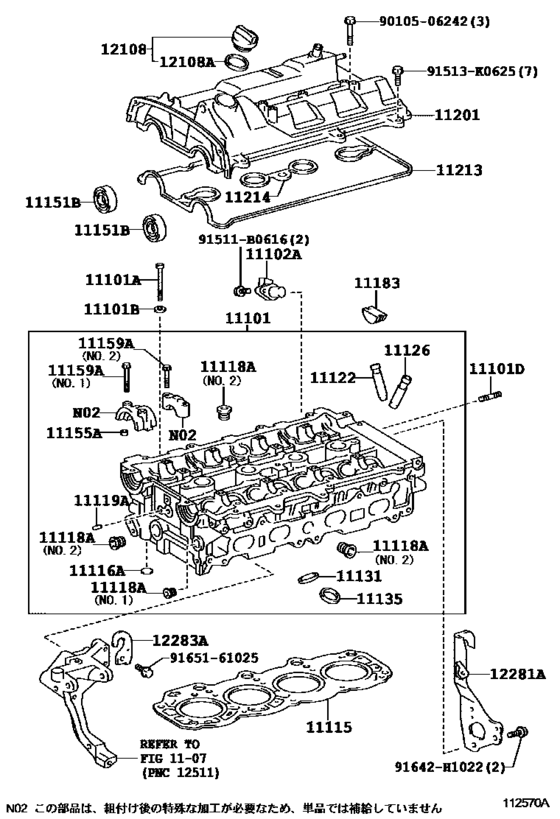

Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11115-88580 |
Gasket, Cylinder Head |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11122-88460 |
Bush, Intake Valve Guide |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11123-88460 |
Bush, Intake Valve Guide |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11131-74010 |
Seat, Intake Valve |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11132-74010 |
Seat, Intake Valve |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11135-74010 |
Seat, Exhaust Valve |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11136-74010 |
Seat, Exhaust Valve |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11183-88580 |
Plug, Semicircular |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11201-88581 |
Cover Sub-Assy, Cylinder Head |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11213-88580 |
Gasket, Cylinder Head Cover |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 11214-88580 |
Gasket, Cylinder Head Cover, No.2 |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 12180-21010 |
Cap Sub-Assy, Oil Filler |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 12281-88581 |
Hanger, Engine, No.1 |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 12283-74010 |
Hanger, Engine, No.3 |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90080-10164 |
BOLT, FLANGE |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90105-06242 |
New Genuine Part |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90119-07001 |
Bolt(For Head To Camshaft Bearing Cap) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90119-07002 |
Bolt(For Head To Camshaft Bearing Cap) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90126-08008 |
Bolt, Stud(For Water Outlet) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90201-10060 |
Washer, Plate(For Cylinder Head Set) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90250-06003 |
Pin, Straight |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90253-10004 |
Pin, Ring W/head |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90311-35035 |
Seal, Oil(For Camshaft Setting) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90311-35052 |
Seal, Oil(For Camshaft Setting) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90341-18010 |
Plug, W/head Straight Screw, No.1 |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90341-27003 |
Plug, W/head Taper Screw, No.1 |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90430-37140 |
Gasket(For Oil Filler Cap) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90910-02094 |
Bolt(For Cylinder Head Set) |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 90919-05007 |
Sensor, Cam Position |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 91511-B0616 |
BOLT, FLANGE |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 91513-K0625 |
New Genuine Part |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 91642-H1022 |
BOLT W-WASHER |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 91651-61025 |
Bolt with washer |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
| 96411-41800 |
Plug, Tight, No.1 |
Cylinder Head ([09.2002 - ] (0209- )3SGTE) |
