ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories

4,383 items

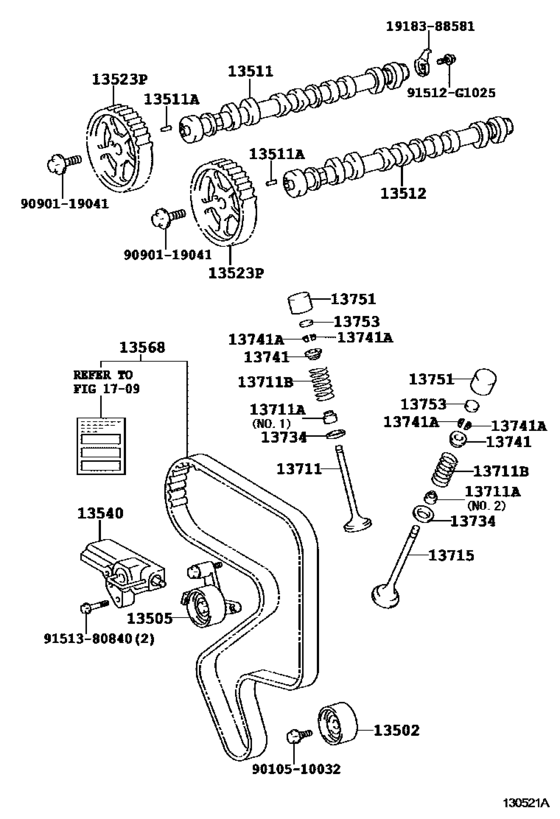

Camshaft & Valve ([09.2002 - ] (0209- )3SGTE) 42

#	OEM	Part name
13502	13503-88560	Idler Sub-Assy, Timing Belt, No.2
13505	13505-88560	Idler Sub-Assy, Timing Belt, No.1
13511	13501-88580	Camshaft
13511	90250-05021	Pin, Straight
13512	13502-88480	Camshaft, No.2
13523	13523-88301	Pulley, Camshaft Timing
13540	13540-88480	Tensioner Assy, Chain, No.1
13568	13568-79105	Belt, Timing
13568	13568-79315	Belt, Timing
13711	13711-88580	Valve, Intake
13711	90913-02090	Seal Or Ring, O(For Valve Stem Oil)
13711	90913-02104	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-35022	Spring, Compression(For Inner)
13715	13715-88480	Valve, Exhaust
13734	13734-88460	Seat, Valve Spring
13741	13741-88460	Retainer, Valve Spring
13741	90913-03021	Seal Or Ring, O(For Valve Stem Oil)
13751	13751-88460	Lifter, Valve
13753	13753-88003	Shim, Valve Adjusting
13753	13753-88053	Shim, Valve Adjusting
13753	13753-88103	Shim, Valve Adjusting
13753	13753-88153	Shim, Valve Adjusting
13753	13753-88203	Shim, Valve Adjusting
13753	13753-88253	Shim, Valve Adjusting
13753	13753-88303	Shim, Valve Adjusting
13753	13753-88353	Shim, Valve Adjusting
13753	13753-88403	Shim, Valve Adjusting
13753	13753-88453	Shim, Valve Adjusting
13753	13753-88503	Shim, Valve Adjusting
13753	13753-88553	Shim, Valve Adjusting
13753	13753-88603	Shim, Valve Adjusting
13753	13753-88653	Shim, Valve Adjusting
13753	13753-88703	Shim, Valve Adjusting
13753	13753-88753	Shim, Valve Adjusting
13753	13753-88803	Shim, Valve Adjusting
13753	13753-88853	Shim, Valve Adjusting
13753	13753-88893	Shim, Valve Adjusting
91512	91512-G1025	BOLTFLANGE
1918388581	19183-88581	Rotor, Signal
9010510032	90105-10032	BOLT
9090119041	90901-19041	BOLT WWASHER
9151380840	91513-80840	New Genuine Part

OEM	Part name	Category
13501-88580	Camshaft	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13502-88480	Camshaft, No.2	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13503-88560	Idler Sub-Assy, Timing Belt, No.2	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13505-88560	Idler Sub-Assy, Timing Belt, No.1	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13523-88301	Pulley, Camshaft Timing	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13540-88480	Tensioner Assy, Chain, No.1	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13568-79105	Belt, Timing	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13568-79315	Belt, Timing	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13711-88580	Valve, Intake	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13715-88480	Valve, Exhaust	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13734-88460	Seat, Valve Spring	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13741-88460	Retainer, Valve Spring	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13751-88460	Lifter, Valve	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88003	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88053	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88103	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88153	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88203	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88253	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88303	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88353	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88403	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88453	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88503	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88553	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88603	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88653	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88703	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88753	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88803	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88853	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
13753-88893	Shim, Valve Adjusting	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
19183-88581	Rotor, Signal	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
90105-10032	BOLT	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
90250-05021	Pin, Straight	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
90501-35022	Spring, Compression(For Inner)	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
90901-19041	BOLT WWASHER	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
90913-02090	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
90913-02104	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
90913-03021	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
91512-G1025	BOLTFLANGE	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
91513-80840	New Genuine Part	Camshaft & Valve ([09.2002 - ] (0209- )3SGTE)
