ST246

Toyota CALDINA · 2002 · 4,383 parts · 199 categories

← Back to categories

4,383 items

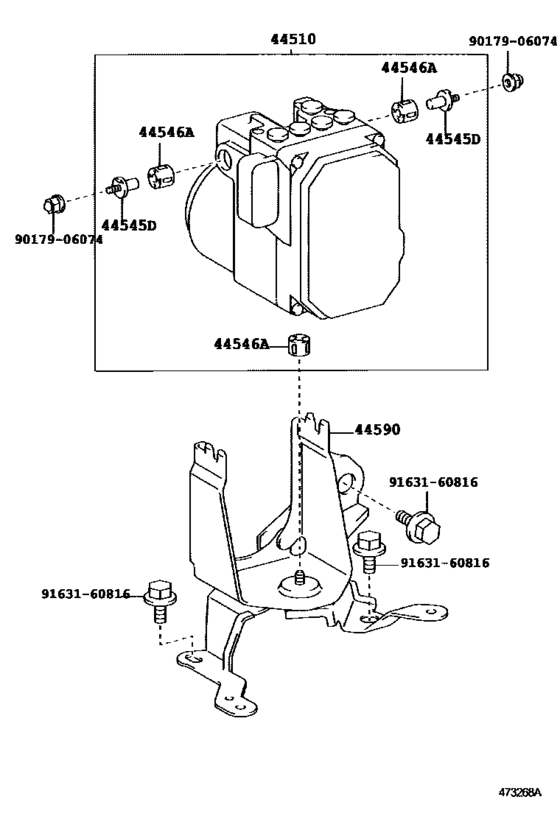

Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246) 11

#	OEM	Part name
44510	44050-21060	Actuator Assy, Brake
44510	44050-21090	Actuator Assy, Brake
44545	44545-42090	Holder, Brake Actuator Bolt
44545	44545-63010	Bolt, Union(For Brake Actuator)
44546	44546-42090	Cushion, Brake Actuator Bolt
44546	44546-63010	Spacer, Air Inlet
44590	44590-21010	Bracket Assy, Brake Actuator
44590	44590-21020	Bracket Assy, Brake Actuator
44590	44590-21021	Bracket Assy, Brake Actuator
9017906074	90179-06074	Nut(For Suspension Control Oil Cooler)
9163160816	91631-60816	BOLT

OEM	Part name	Category
44050-21060	Actuator Assy, Brake	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44050-21090	Actuator Assy, Brake	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44545-42090	Holder, Brake Actuator Bolt	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44545-63010	Bolt, Union(For Brake Actuator)	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44546-42090	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44546-63010	Spacer, Air Inlet	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44590-21010	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44590-21020	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
44590-21021	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
90179-06074	Nut(For Suspension Control Oil Cooler)	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
91631-60816	BOLT	Brake Tube & Clamp ([09.2002 - ] ｱﾘ(VSC) OR ｽﾎﾟ-ﾂ ABS (0209- )ST246)
