Search › Model › ST246
ST246

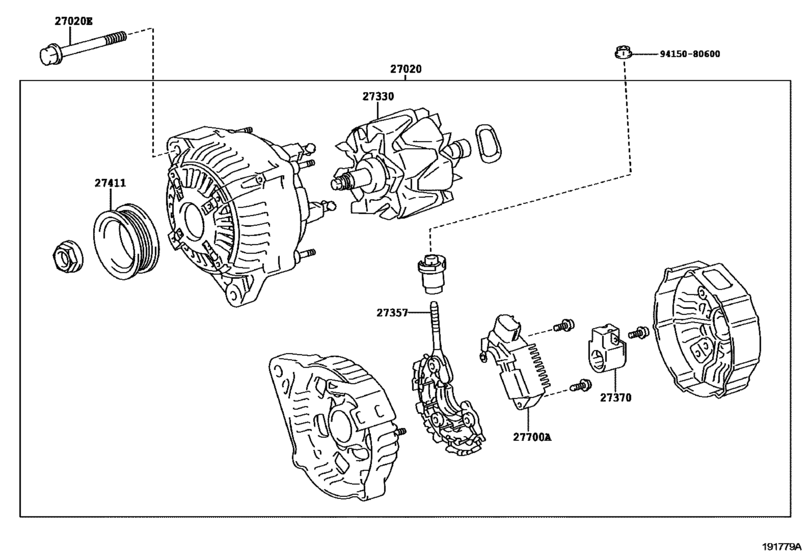

Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) 8
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-7A030 | Alternator Assy |
| 27020 | 90105-10249 | Bolt(For Alternator) |
| 27330 | 27330-28050 | Rotor Assy, Alternator |
| 27357 | 27357-70450 | Holder, Alternator, W/rectifier |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27411 | 27411-74050 | Pulley, Alternator |
| 27700 | 27700-21040 | Regulator Assy, Generator |
| 9415080600 | 94150-80600 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 27060-7A030 | Alternator Assy | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
| 27330-28050 | Rotor Assy, Alternator | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
| 27357-70450 | Holder, Alternator, W/rectifier | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
| 27411-74050 | Pulley, Alternator | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
| 27700-21040 | Regulator Assy, Generator | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
| 90105-10249 | Bolt(For Alternator) | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
| 94150-80600 | NUT FLANGE | Alternator ([09.2002 - ] 12V 100A (0209- )3SGTE) |
