Search › Model › ST215

ST215

Toyota CALDINA · 1997 · 5,706 parts · 216 categories

5,706 items

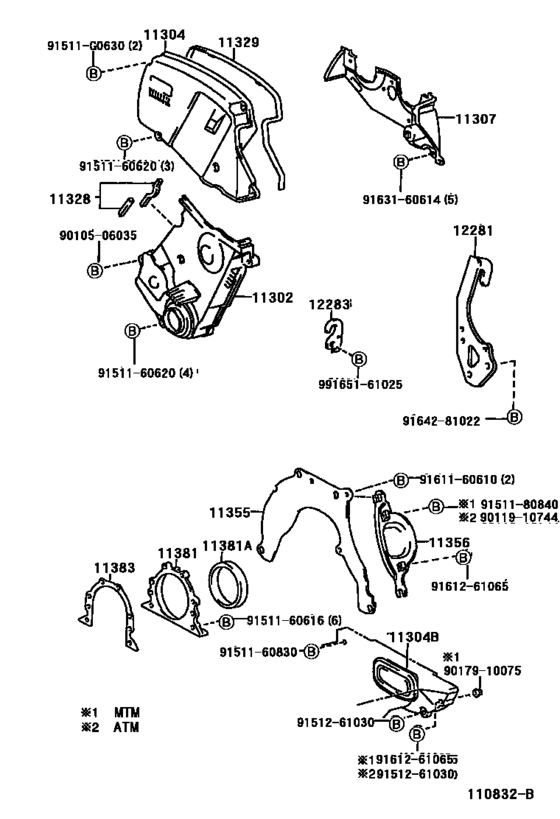

Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE) 39

#	OEM	Part name
11302	11321-88560	Cover Sub-Assy, Timing Chain Or Belt
11304	11322-88460	Cover, Timing Chain Or Belt, No.2
11304	90950-01809	Plug, Semi Circular(For Chain Cover No.2)
11307	11323-88580	Cover, Sub-Assy, Timing Belt, No.3
11328	11328-88560	Gasket, Timing Gear Or Chain Cover
11328	11328-88561	Gasket, Timing Gear Or Chain Cover
11329	11329-88460	Gasket, Timing Gear Rear Cover
11355	11355-88480	Plate, Rear End
11356	11356-88480	Plate, Rear End, No.2
11381	11381-74010	Retainer, Engine Rear Oil Seal
11381	90311-89001	Seal, Engine Rear Oil
11381	90311-89010	Seal, Engine Rear Oil
11381	90311-89003	Seal, Engine Rear Oil
11383	11383-88460	Gasket, Engine Rear Oil Seal Retainer
12281	12281-88580	Hanger, Engine, No.1
12283	12283-74010	Hanger, Engine, No.3
12283	12283-74060	Hanger, Engine, No.3
91511	91511-G0630	BOLT FLANGE
9010506035	90105-06035	New Genuine Part
9011910744	90119-10744	New Genuine Part
9017910075	90179-10075	Nut(For Front Suspension Lower Arm No.1 Rh)
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9151160620	91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)
9151160620	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9151160830	91511-60830	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151160830	91511-B0830	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151180840	91511-80840	Bolt(For Crankshaft Bearing Cap Set)
9151180840	91511-K0840	Bolt(For Crankshaft Bearing Cap Set)
9151261030	91512-61030	Bolt (For Transaxle Case Upper Cover)
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161261065	91612-61065	Bolt(For Transaxle & Engine Setting)
9161261065	90119-A0104	Bolt with Washer
9163160614	91631-60614	BOLT
9163160614	91661-60616	BOLT
9164281022	91642-81022	BOLT WWASHER
9164281022	91642-H1022	BOLT W-WASHER
9165161025	91651-61025	Bolt with washer

OEM	Part name	Category
11321-88560	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11322-88460	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11323-88580	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11328-88560	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11328-88561	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11329-88460	Gasket, Timing Gear Rear Cover	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11355-88480	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11356-88480	Plate, Rear End, No.2	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11381-74010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
11383-88460	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
12281-88580	Hanger, Engine, No.1	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
12283-74010	Hanger, Engine, No.3	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
12283-74060	Hanger, Engine, No.3	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90105-06035	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90119-10744	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90119-A0104	Bolt with Washer	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90179-10075	Nut(For Front Suspension Lower Arm No.1 Rh)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90311-89001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90311-89003	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90311-89010	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
90950-01809	Plug, Semi Circular(For Chain Cover No.2)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-60616	BOLTFLANGE	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-60620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-60830	Bolt Or Ring, Exhaust Pipe Front (For Front)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-80840	Bolt(For Crankshaft Bearing Cap Set)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-B0616	BOLT, FLANGE	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-B0830	Bolt Or Ring, Exhaust Pipe Front (For Front)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-G0630	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91511-K0840	Bolt(For Crankshaft Bearing Cap Set)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91512-61030	Bolt (For Transaxle Case Upper Cover)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91612-61065	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91631-60614	BOLT	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91642-81022	BOLT WWASHER	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91642-H1022	BOLT W-WASHER	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91651-61025	Bolt with washer	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
91661-60616	BOLT	Timing Gear Cover & Rear End Plate ([08.1997 - ] (9708- )3SGTE)
