ST215

Toyota CALDINA · 1997 · 5,706 parts · 216 categories

5,706 items

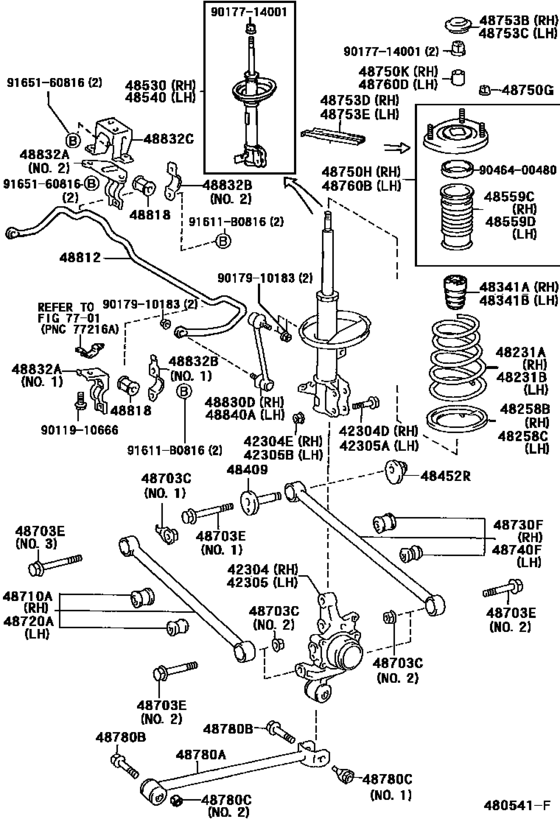

Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT) 58

#	OEM	Part name
42304	42304-20210	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-21020	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90901-05001	Bolt (For Rear Axle Carrier Rh)
42304	90178-15001	Nut (For Rear Axle Carrier Rh)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20210	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-21020	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-21110	Spring, Coil, Rear Rh
48231	48231-21120	Spring, Coil, Rear Rh
48258	48258-32010	Insulator, Rear Coil Spring, Lower
48341	48341-21020	Bumper, Rear Spring, No.1 Rh
48341	48341-32071	Bumper, Rear Spring, No.1 Rh
48409	48409-32030	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32030	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-29725	Absorber Assy, Shock, Rear Rh
48530	48530-29815	Absorber Assy, Shock, Rear Rh
48540	48540-29285	Absorber Assy, Shock, Rear Lh
48540	48540-29345	Absorber Assy, Shock, Rear Lh
48559	48559-20040	Cover, Rear Shock Absober Dust, Rh No.1
48703	90179-12100	Nut(For Rear Suspension Arm)
48703	90179-14019	Nut
48703	90119-12126	Bolt(For Rear Suspension Arm)
48703	90901-19002	Bolt(For Rear Suspension Arm)
48703	90901-19046	Bolt(For Rear Suspension Arm)
48703	90119-12438	Bolt(For Rear Suspension Arm)
48703	90901-19003	Bolt(For Rear Suspension Arm)
48710	48710-21020	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-21040	Arm Assy, Rear Suspension, No.2
48730	48730-21090	Arm Assy, Rear Suspension, No.2 Rh
48740	48730-21080	Arm Assy, Rear Suspension, No.2 Lh
48750	90179-08122	Nut(For Rear Suspension Support)
48750	48750-21020	Support Assy, Rear Suspension, Rh
48750	48750-21050	Support Assy, Rear Suspension, Rh
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48753	48753-20040	Cover, Rear Suspension Supoport, No.1 Rh
48753	48753-20070	Cover, Rear Suspension Supoport, No.2 Rh
48753	48753-21010	Cover, Rear Suspension Supoport, No.2 Rh
48780	48780-21010	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48780	90179-12114	Nut(For Strut Rod)
48812	48812-21020	Bar, Stabilizer, Rear
48818	48818-21030	Bush, Stabilizer, Rear
48830	48830-21010	Link Assy, Rear Stabilizer, Rh
48832	48832-32050	Bracket, Rear Stabilizer Bar, Lh
48832	48832-32070	Bracket, Rear Stabilizer Bar, No.1
48832	48832-32060	Bracket, Rear Stabilizer Bar, Lh
48832	48832-32080	Bracket, Rear Stabilizer Bar, Rh
48832	48832-32090	Bracket, Rear Stabilizer Bar, No.3
91611	91611-B0816	Bolt
9011910666	90119-10666	New Genuine Part
9017714001	90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9046400480	90464-00480	New Genuine Part
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt

OEM	Part name	Category
42304-20210	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
42304-21020	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
42305-20210	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
42305-21020	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48231-21110	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48231-21120	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48258-32010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48341-21020	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48341-32071	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48409-32030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48452-32030	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48530-29725	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48530-29815	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48540-29285	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48540-29345	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48559-20040	Cover, Rear Shock Absober Dust, Rh No.1	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48710-21020	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48730-21040	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48730-21080	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48730-21090	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48750-21020	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48750-21050	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48753-20040	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48753-20070	Cover, Rear Suspension Supoport, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48753-21010	Cover, Rear Suspension Supoport, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48780-21010	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48812-21020	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48818-21030	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48830-21010	Link Assy, Rear Stabilizer, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48832-32050	Bracket, Rear Stabilizer Bar, Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48832-32060	Bracket, Rear Stabilizer Bar, Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48832-32070	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48832-32080	Bracket, Rear Stabilizer Bar, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
48832-32090	Bracket, Rear Stabilizer Bar, No.3	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90080-11396	Bolt	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90119-10666	New Genuine Part	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90119-12126	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90119-12438	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90178-15001	Nut (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90179-12100	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90179-12114	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90179-14019	Nut	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90464-00480	New Genuine Part	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90901-05001	Bolt (For Rear Axle Carrier Rh)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90901-19002	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90901-19003	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
90901-19046	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
91651-60816	BOLT	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )ST215..GT,GTT)
