Search › Model › ST210

ST210

Toyota CALDINA · 1997 · 5,616 parts · 235 categories

5,616 items

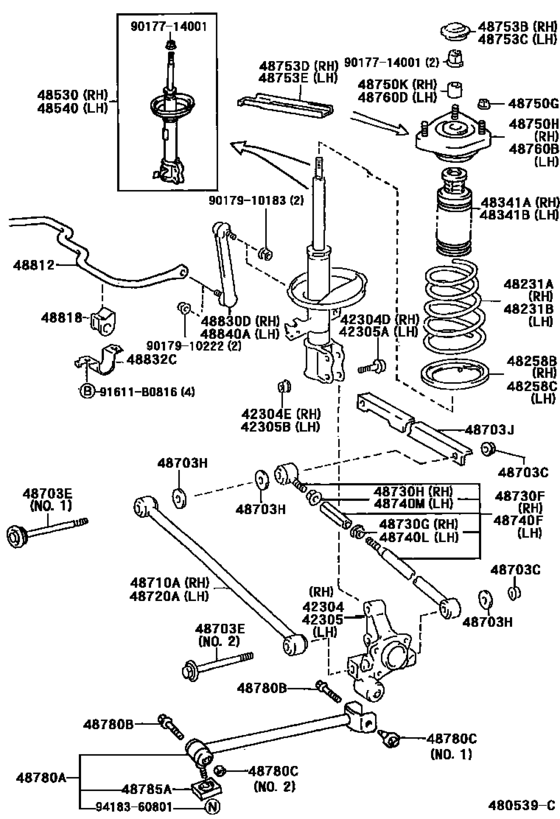

Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210) 53

#	OEM	Part name
42304	42304-20370	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42304	42304-20300	Carrier Sub-Assy, Rear Axle, Rh
42305	42305-20370	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-20300	Carrier Sub-Assy, Rear Axle, Lh
48231	48231-21140	Spring, Coil, Rear Rh
48231	48231-21100	Spring, Coil, Rear Rh
48231	48231-21130	Spring, Coil, Rear Rh
48258	48258-32010	Insulator, Rear Coil Spring, Lower
48341	48341-20280	Bumper, Rear Spring, No.1 Rh
48530	48530-29795	Absorber Assy, Shock, Rear Rh
48530	48530-29705	Absorber Assy, Shock, Rear Rh
48540	48540-29325	Absorber Assy, Shock, Rear Lh
48540	48540-29265	Absorber Assy, Shock, Rear Lh
48703	90179-14019	Nut
48703	90901-09001	Bolt(For Rear Suspension Arm)
48703	90901-19001	Bolt(For Rear Suspension Arm)
48703	90201-14017	Washer(For Rear Suspension Arm)
48703	48715-20020	Washer, No.2(For Rear Suspension Arm)
48710	48710-20260	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-20241	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-21060	Arm Assy, Rear Suspension, No.2 Rh
48730	90179-16022	Nut, No.1(For Rear Suspension Arm No.2)
48730	90179-16021	Nut, No.2(For Arm Assy, Rear Suspension, No.2)
48730	48730-20220	Arm Assy, Rear Suspension, No.2 Rh
48730	48730-21050	Arm Assy, Rear Suspension, No.2 Rh
48740	48740-21010	Arm Assy, Rear Suspension, No.2 Lh
48740	48740-20080	Arm Assy, Rear Suspension, No.2 Lh
48750	90179-08122	Nut(For Rear Suspension Support)
48750	48750-21040	Support Assy, Rear Suspension, Rh
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48750	48750-20150	Support Assy, Rear Suspension, Rh
48753	48753-20040	Cover, Rear Suspension Supoport, No.1 Rh
48753	48753-21010	Cover, Rear Suspension Supoport, No.2 Rh
48753	48753-20070	Cover, Rear Suspension Supoport, No.2 Rh
48780	48780-20200	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48780	90179-12114	Nut(For Strut Rod)
48785	48785-20010	Damper, Strud Rod Dynamic
48812	48812-20770	Bar, Stabilizer, Rear
48812	48812-20700	Bar, Stabilizer, Rear
48818	48818-21040	Bush, Stabilizer, Rear
48818	48818-21060	Bush, Stabilizer, Rear
48830	48830-20010	Link Assy, Rear Stabilizer
48832	48832-20080	Bracket, Rear Stabilizer Bar, No.1
91611	91611-B0816	Bolt
9017714001	90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9017910222	90179-10222	Nut(For Rear Stabilizer Link)
9418360801	94183-60801	NUT LOCK

OEM	Part name	Category
42304-20300	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
42304-20370	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
42305-20300	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
42305-20370	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48231-21100	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48231-21130	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48231-21140	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48258-32010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48341-20280	Bumper, Rear Spring, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48530-29705	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48530-29795	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48540-29265	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48540-29325	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48710-20241	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48710-20260	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48715-20020	Washer, No.2(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48730-20220	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48730-21050	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48730-21060	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48740-20080	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48740-21010	Arm Assy, Rear Suspension, No.2 Lh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48750-20150	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48750-21040	Support Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48753-20040	Cover, Rear Suspension Supoport, No.1 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48753-20070	Cover, Rear Suspension Supoport, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48753-21010	Cover, Rear Suspension Supoport, No.2 Rh	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48780-20200	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48785-20010	Damper, Strud Rod Dynamic	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48812-20700	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48812-20770	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48818-21040	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48818-21060	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
48832-20080	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90177-14001	Nut(For Rear Support To Rear Shock Absorber Rh)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-10222	Nut(For Rear Stabilizer Link)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-12114	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-14019	Nut	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-16021	Nut, No.2(For Arm Assy, Rear Suspension, No.2)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90179-16022	Nut, No.1(For Rear Suspension Arm No.2)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90201-14017	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90901-09001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
90901-19001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
94183-60801	NUT LOCK	Rear Spring & Shock Absorber ([08.1997 - ] (9708- )AT211,ST210)
