Search › Model › ST210

ST210

Toyota CALDINA · 1997 · 5,616 parts · 235 categories

5,616 items

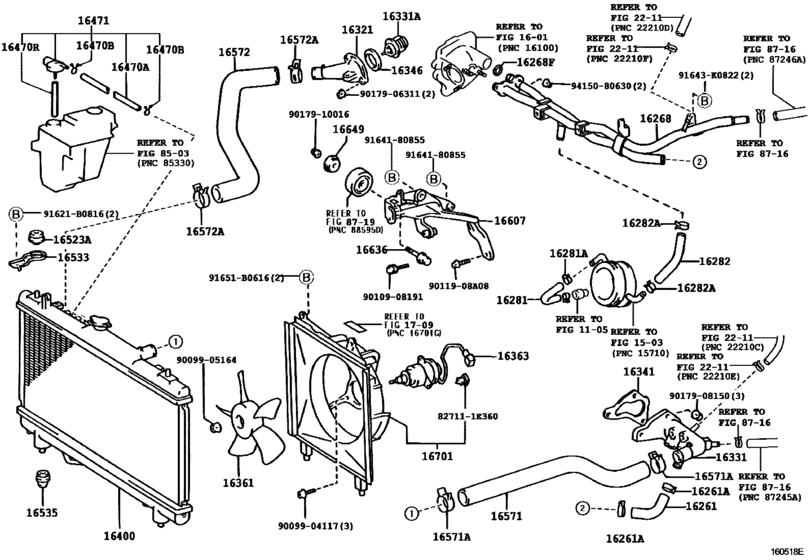

Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE) 45

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16261	16261-88460	Hose, Water By-Pass
16261	90467-23009	Clip Or Clamp(For Ventilation Hose)
16261	90467-23013	Clip Or Clamp(For Ventilation Hose)
16268	16268-88463	Pipe, Water By-Pass, No.1
16268	96761-24019	Ring, O(For Water By-Pass Pipe)
16281	16281-88460	Hose, Water By-Pass, No.4
16281	90467-20011	Clamp Or Clip(For Water By-Pass Hose No.2)
16282	16282-88462	Hose, Water By-Pass, No.5
16321	16321-88460	Inlet, Water
16331	16304-88560	Outlet, Water
16331	90916-03100	Thermostat
16341	16341-88460	Gasket, Water Outlet
16346	16346-32010	Gasket, Water Inlet Housing, No.1
16361	16361-74110	Fan
16363	16363-74270	Motor, Cooling Fan
16400	16400-7A690	Radiator Assy
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-16130	Cap Sub-Assy, Reserve Tank
16523	16523-74010	Cushion, Sub-Radiator Support
16533	16533-74240	Support, Radiator, Upper
16535	16535-74030	Support, Radiator, Lower
16571	16571-74430	Hose, Radiator, Inlet
16571	90467-34003	Clip(For Oil Return Hose)
16571	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	16572-74300	Hose, Radiator, Outlet
16607	16631-88480	Bracket Sub-Assy, Idler Pulley, No.1
16636	16636-74020	Shaft, Idler Pully, No.1
16649	16649-88360	Plate, Idler Pulley Cover
16701	16711-16301	Shroud Sub-Assy, Fan
91621	91621-B0816	BOLT WWASHER
91643	91643-K0822	New Genuine Part
91643	91641-K0822	BOLT WWASHER
91651	91651-B0616	BOLT WWASHER
9011908	90119-08A08	New Genuine Part
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9010908191	90109-08191	Bolt(For Idler Pully Tension)
9017906311	90179-06311	New Genuine Part
9017908150	90179-08150	NUT
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9164180855	91641-80855	Bolt
9415080630	94150-80630	New Genuine Part

OEM	Part name	Category
16261-88460	Hose, Water By-Pass	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16268-88463	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16281-88460	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16282-88462	Hose, Water By-Pass, No.5	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16304-88560	Outlet, Water	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16321-88460	Inlet, Water	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16341-88460	Gasket, Water Outlet	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16346-32010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16361-74110	Fan	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16363-74270	Motor, Cooling Fan	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16400-7A690	Radiator Assy	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16405-16130	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16523-74010	Cushion, Sub-Radiator Support	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16533-74240	Support, Radiator, Upper	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16535-74030	Support, Radiator, Lower	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16571-74430	Hose, Radiator, Inlet	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16572-74300	Hose, Radiator, Outlet	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16631-88480	Bracket Sub-Assy, Idler Pulley, No.1	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16636-74020	Shaft, Idler Pully, No.1	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16649-88360	Plate, Idler Pulley Cover	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
16711-16301	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90099-05164	Nut	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90109-08191	Bolt(For Idler Pully Tension)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90119-08A08	New Genuine Part	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90179-06311	New Genuine Part	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90179-08150	NUT	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90179-10016	Nut(For Counter Gear Shaft)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90179-10132	Nut	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90467-20011	Clamp Or Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90467-23009	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90467-23013	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90467-34003	Clip(For Oil Return Hose)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
90916-03100	Thermostat	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
91621-B0816	BOLT WWASHER	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
91641-80855	Bolt	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
91641-K0822	BOLT WWASHER	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
91643-K0822	New Genuine Part	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
94150-80630	New Genuine Part	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
96761-24019	Ring, O(For Water By-Pass Pipe)	Radiator & Water Outlet ([08.1997 - ] (9708- )3SGE)
