ST210

Toyota CALDINA · 1997 · 5,616 parts · 235 categories

← Back to categories

5,616 items

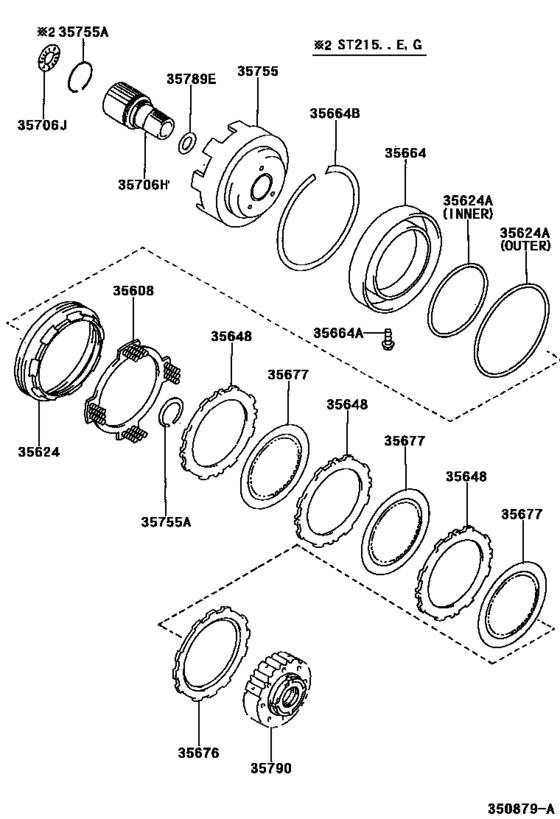

Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT) 16

#	OEM	Part name
35608	35608-32010	Spring Sub-Assy, 2Nd Brake Piston Return
35624	35624-32010	Piston, 2Nd Brake
35624	90301-99021	Ring, O (For 2Nd Brake Piston)
35624	90301-99023	Ring, O (For 2Nd Brake Piston)
35648	35648-32010	Plate, Clutch (For 2Nd Brake)
35664	35664-32010	Cylinder, 2Nd Brake
35664	90109-06060	Bolt (For 2Nd Brake Cylinder)
35664	90521-99013	Ring, Hole Snap (For 2Nd Brake Cylinder)
35676	35676-12030	Flange, Brake (For 2Nd Brake)
35677	35677-12070	Disc, Clutch (For 2Nd Brake)
35706	35706-33012	Gear Sub-Assy, Planetary Sun
35706	90374-30014	Bearing, Thrust Needle Roller (For Planetary Sun Gear)
35755	35755-32030	Drum, Sun Gear Input
35755	90520-36017	Ring, Shaft Snap (For Sun Gear Input Drum)
35789	35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)
35790	35790-32031	Clutch Assy, 1 Way

OEM	Part name	Category
35608-32010	Spring Sub-Assy, 2Nd Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35624-32010	Piston, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35648-32010	Plate, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35664-32010	Cylinder, 2Nd Brake	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35676-12030	Flange, Brake (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35677-12070	Disc, Clutch (For 2Nd Brake)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35706-33012	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35755-32030	Drum, Sun Gear Input	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
35790-32031	Clutch Assy, 1 Way	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
90109-06060	Bolt (For 2Nd Brake Cylinder)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
90301-99021	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
90301-99023	Ring, O (For 2Nd Brake Piston)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
90374-30014	Bearing, Thrust Needle Roller (For Planetary Sun Gear)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
90520-36017	Ring, Shaft Snap (For Sun Gear Input Drum)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
90521-99013	Ring, Hole Snap (For 2Nd Brake Cylinder)	Center Support & Planetary Sun Gear (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC..E,G,GT ; (9912- )ST210..GT)
