Search › Model › ST210

ST210

Toyota CALDINA · 1997 · 5,616 parts · 235 categories

← Back to categories

5,616 items

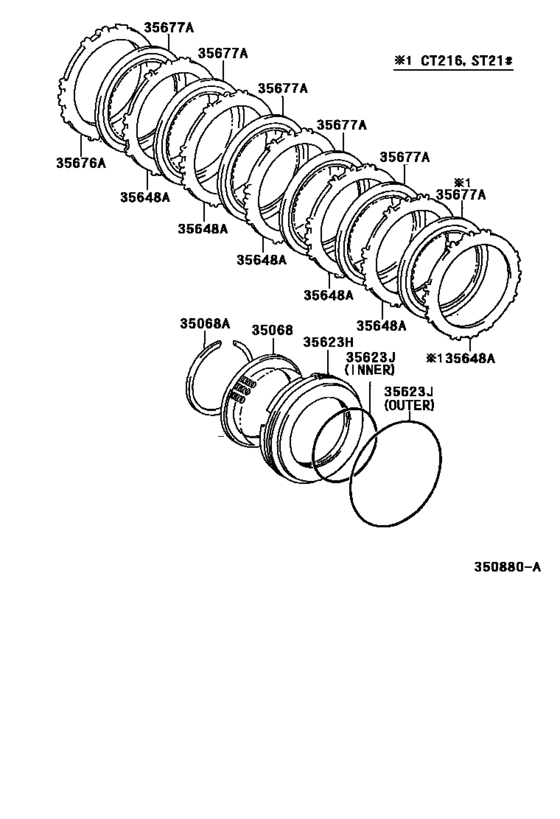

Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT) 15

#	OEM	Part name
35068	35068-20010	Spring Sub-Assy, 1St & Reverse Brake Return
35068	90520-90001	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
35068	35068-12010	Spring Sub-Assy, 1St & Reverse Brake Return
35623	35623-20030	Piston, 1St & Reverse Brake
35623	90301-94001	Ring, O (For 1St & Reverse Brake)
35623	90301-99022	Ring, O (For Overdrive Brake Piston)
35623	35623-12030	Piston, 1St & Reverse Brake
35623	90301-94004	Ring, O (For 1St & Reverse Brake)
35623	90301-99131	Ring, O (For Brake Piston No.2)
35648	35648-32020	Plate, Clutch (For 1St & Reverse Brake)
35648	35648-12020	Valve, Secondary Regulator
35676	35676-12030	Flange, Brake (For 2Nd Brake)
35676	35676-32010	Flange, Brake (For 2Nd Brake)
35677	35677-12060	Disc, Clutch (For 1St & Reverse Brake)
35677	35677-20070	Disc, Clutch (For 1St & Reverse Brake)

OEM	Part name	Category
35068-12010	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35068-20010	Spring Sub-Assy, 1St & Reverse Brake Return	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35623-12030	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35623-20030	Piston, 1St & Reverse Brake	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35648-12020	Valve, Secondary Regulator	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35648-32020	Plate, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35676-12030	Flange, Brake (For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35676-32010	Flange, Brake (For 2Nd Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35677-12060	Disc, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
35677-20070	Disc, Clutch (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
90301-94001	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
90301-94004	Ring, O (For 1St & Reverse Brake)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
90301-99022	Ring, O (For Overdrive Brake Piston)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
90301-99131	Ring, O (For Brake Piston No.2)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)
90520-90001	Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)	Brake No.3, 1St & Reverse Brake (Atm) ([08.1997 - ] A245E,A247E,A241F,A243E,A243F (9708- )4FC..E,G,GT)

Source: Public OEM parts-catalog data
Variants: 2 / 3
Category: 235
Collected: 2026-08-02
