Search › Model › ST210

ST210

Toyota CALDINA · 1997 · 5,616 parts · 235 categories

5,616 items

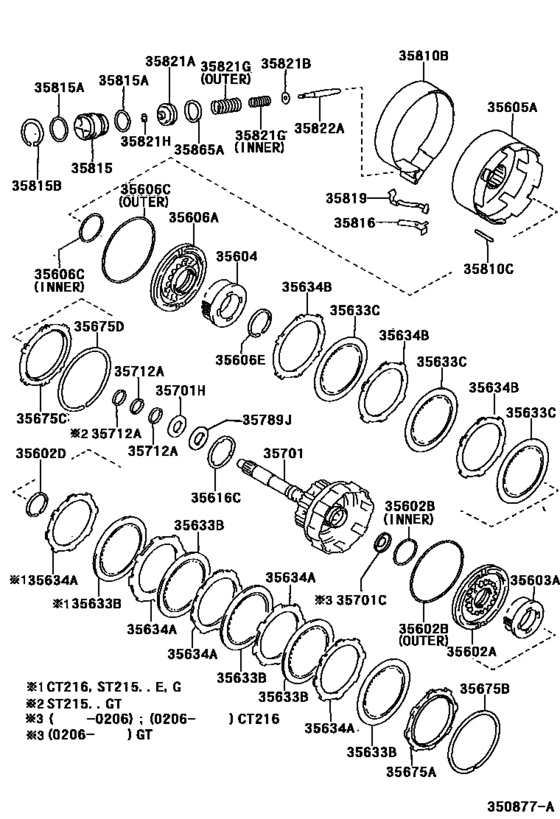

Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT) 43

#	OEM	Part name
35602	35602-21020	Piston Sub-Assy, Forward Clutch
35602	90301-59004	Ring, O (For Forward Clutch Piston)
35602	90301-99016	Ring, O (For Overdrive Direct Clutch Piston)
35602	90520-54002	Ring, Shaft Snap(For Forward Clutch Piston Return Spring)
35603	35603-33010	Spring Sub-Assy, Forward Clutch Return
35604	35604-33010	Spring Sub-Assy, Direct Clutch Return
35605	35605-33011	Drum Sub-Assy, Direct Clutch
35606	35606-32031	Piston Sub-Assy, Direct Clutch
35616	35616-21010	Washer, Clutch Drum Thrust (For Direct Clutch Drum)
35633	35633-33100	Disc, Clutch (For Forward Multiple Disc Clutch)
35633	35633-21030	Disc, Clutch (For Direct Multiple Disc Clutch)
35634	35634-33010	Plate, Clutch (For Forward Multiple Disc Clutch)
35634	35634-33020	Plate, Clutch (For Forward Multiple Disc Clutch)
35634	35647-33010	Plate, Clutch (For Direct Multiple Disc Clutch)
35675	35675-33010	Flange, Forward Clutch
35675	35675-33020	Flange, Forward Clutch
35675	35675-33050	Flange, Forward Clutch
35675	90521-99001	Ring, Hole Snap, No.2 (For Overdrive)
35675	35675-32040	Flange, Direct Clutch
35675	35675-32050	Flange, Direct Clutch
35675	90521-99032	Ring, Hole Snap (For Direct Clutch Flange)
35701	35701-21020	Shaft Sub-Assy, Input
35701	35789-32040	Race, Thrust Bearing (For Input Shaft Rear)
35701	90374-27003	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90374-27004	Bearing, Thrust Needle Roller (For Input Shaft)
35701	90374-27012	Bearing, Thrust Needle Roller (For Input Shaft)
35712	35712-32010	Ring, Input Shaft Oil Seal
35789	35789-32010	Race, Thrust Bearing (For Input Shaft Front)
35810	35810-32020	Band Assy, 2Nd Coast Brake
35810	90250-07001	Pin (For 2Nd Coast Brake Band)
35815	35815-32010	Cover, 2Nd Coast Brake
35815	90301-41002	Ring, O (For 2Nd Coast Brake Cover)
35815	90521-53001	Ring, Hole Snap (For 2Nd Coast Brake Cover)
35816	35816-12010	Retainer, Brake Band Guide Plate
35819	35819-12020	Plate, 2Nd Coast Brake Band Guide
35821	35821-32010	Piston, 2Nd Coast Brake
35821	90201-06557	Washer, Plate (For 2Nd Coast Brake Piston)
35821	90501-20051	Spring, Compression (For 2Nd Coast Brake Piston)
35821	90501-26024	Spring, Compression (For 2Nd Coast Brake Piston)
35821	96160-00500	Ring, E(For Over Center Lever)
35822	35822-32010	Rod, 2Nd Coast Brake Piston
35822	35822-32020	Rod, 2Nd Coast Brake Piston
35865	35865-32010	Ring, 2Nd Coast Brake Piston Oil Seal

OEM	Part name	Category
35602-21020	Piston Sub-Assy, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35603-33010	Spring Sub-Assy, Forward Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35604-33010	Spring Sub-Assy, Direct Clutch Return	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35605-33011	Drum Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35606-32031	Piston Sub-Assy, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35616-21010	Washer, Clutch Drum Thrust (For Direct Clutch Drum)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35633-21030	Disc, Clutch (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35633-33100	Disc, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35634-33010	Plate, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35634-33020	Plate, Clutch (For Forward Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35647-33010	Plate, Clutch (For Direct Multiple Disc Clutch)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35675-32040	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35675-32050	Flange, Direct Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35675-33010	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35675-33020	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35675-33050	Flange, Forward Clutch	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35701-21020	Shaft Sub-Assy, Input	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35712-32010	Ring, Input Shaft Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35789-32010	Race, Thrust Bearing (For Input Shaft Front)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35789-32040	Race, Thrust Bearing (For Input Shaft Rear)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35810-32020	Band Assy, 2Nd Coast Brake	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35815-32010	Cover, 2Nd Coast Brake	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35816-12010	Retainer, Brake Band Guide Plate	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35819-12020	Plate, 2Nd Coast Brake Band Guide	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35821-32010	Piston, 2Nd Coast Brake	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35822-32010	Rod, 2Nd Coast Brake Piston	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35822-32020	Rod, 2Nd Coast Brake Piston	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
35865-32010	Ring, 2Nd Coast Brake Piston Oil Seal	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90201-06557	Washer, Plate (For 2Nd Coast Brake Piston)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90250-07001	Pin (For 2Nd Coast Brake Band)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90301-41002	Ring, O (For 2Nd Coast Brake Cover)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90301-59004	Ring, O (For Forward Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90301-99016	Ring, O (For Overdrive Direct Clutch Piston)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90374-27003	Bearing, Thrust Needle Roller (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90374-27004	Bearing, Thrust Needle Roller (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90374-27012	Bearing, Thrust Needle Roller (For Input Shaft)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90501-20051	Spring, Compression (For 2Nd Coast Brake Piston)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90501-26024	Spring, Compression (For 2Nd Coast Brake Piston)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90520-54002	Ring, Shaft Snap(For Forward Clutch Piston Return Spring)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90521-53001	Ring, Hole Snap (For 2Nd Coast Brake Cover)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90521-99001	Ring, Hole Snap, No.2 (For Overdrive)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
90521-99032	Ring, Hole Snap (For Direct Clutch Flange)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
96160-00500	Ring, E(For Over Center Lever)	Brake Band & Multiple Disc Clutch (Atm) ([12.1999 - ] A241F,A243E,A243F (9708- )CT216,ST215..4FC ; (9912- )ST210.. GT)
