Search › Model › ST206
ST206

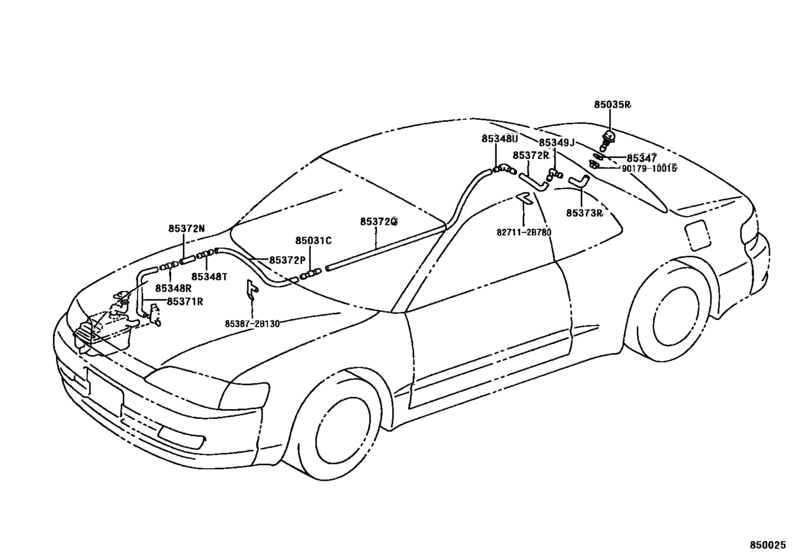

Rear Washer ([09.1995 - ] (9509- )) 15
| # | OEM | Part name |
|---|---|---|
| 85031 | 85031-90A00 | Valve Sub-Assy, Washer |
| 85035 | 85391-20060 | Nozzle Sub-Assy, Rear Washer |
| 85035 | 85391-22060 | Nozzle Sub-Assy, Rear Washer |
| 85347 | 85347-12010 | Packing, Rear Washer |
| 85348 | 85349-89122 | Valve Sub-Assy, Washer |
| 85348 | 85355-20200 | Joint, Windshield Washer Hose, No.1 |
| 85349 | 85387-14540 | Joint, Windshield Washer Elbow, No.2 |
| 85371 | 90446-07001 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90099-33299 | Joint, Windshield Washer Elbow, No.2 |
| 85372 | 90099-59151 | Hose, Rear Washer (From Joint To Joint), No.3 |
| 85373 | 85370-20830 | Hose, Rear Washer (From Joint To Nozzle) |
| 85373 | 90099-33080 | Hose, Windshield Washer (From Motor To Joint) |
| 827112 | 82711-2B780 | Clamp No.1 (For Windseield Washer) |
| 853872 | 85387-2B130 | Clamp No.1 (for Windseield Washer) |
| 9017910015 | 90179-10015 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 82711-2B780 | Clamp No.1 (For Windseield Washer) | Rear Washer ([09.1995 - ] (9509- )) |
| 85031-90A00 | Valve Sub-Assy, Washer | Rear Washer ([09.1995 - ] (9509- )) |
| 85347-12010 | Packing, Rear Washer | Rear Washer ([09.1995 - ] (9509- )) |
| 85349-89122 | Valve Sub-Assy, Washer | Rear Washer ([09.1995 - ] (9509- )) |
| 85355-20200 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([09.1995 - ] (9509- )) |
| 85370-20830 | Hose, Rear Washer (From Joint To Nozzle) | Rear Washer ([09.1995 - ] (9509- )) |
| 85387-14540 | Joint, Windshield Washer Elbow, No.2 | Rear Washer ([09.1995 - ] (9509- )) |
| 85387-2B130 | Clamp No.1 (for Windseield Washer) | Rear Washer ([09.1995 - ] (9509- )) |
| 85391-20060 | Nozzle Sub-Assy, Rear Washer | Rear Washer ([09.1995 - ] (9509- )) |
| 85391-22060 | Nozzle Sub-Assy, Rear Washer | Rear Washer ([09.1995 - ] (9509- )) |
| 90099-33080 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([09.1995 - ] (9509- )) |
| 90099-33299 | Joint, Windshield Washer Elbow, No.2 | Rear Washer ([09.1995 - ] (9509- )) |
| 90099-59151 | Hose, Rear Washer (From Joint To Joint), No.3 | Rear Washer ([09.1995 - ] (9509- )) |
| 90179-10015 | NUT | Rear Washer ([09.1995 - ] (9509- )) |
| 90446-07001 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([09.1995 - ] (9509- )) |
