Search › Model › ST205

ST205

Toyota CARINA · 1994 · 4,670 parts · 199 categories

4,670 items

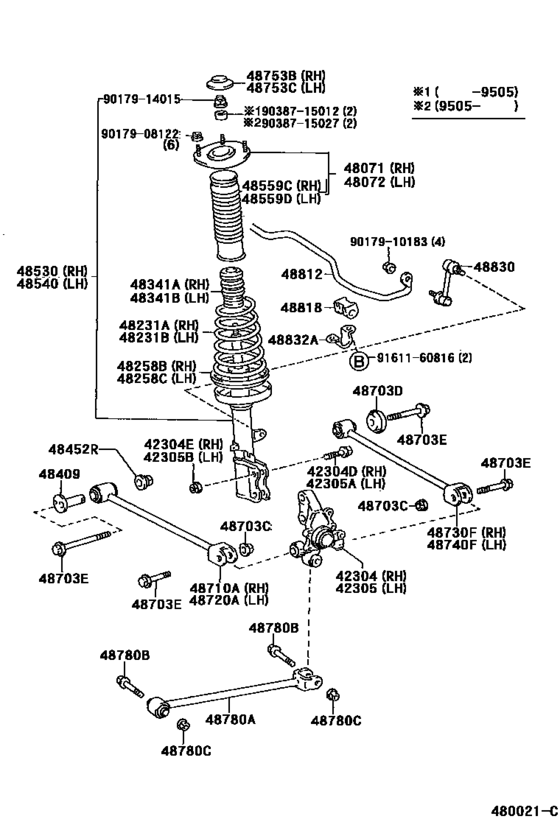

Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205) 40

#	OEM	Part name
42304	42304-20280	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-20290	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20280	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-20290	Carrier Sub-Assy, Rear Axle, Lh
48071	48071-20151	Support Sub-Assy, Rear Suspension, Rh
48072	48072-20061	Support Sub-Assy, Rear Suspension, Lh
48231	48231-2G410	Spring, Coil, Rear Rh
48258	48258-20030	Insulator, Rear Coil Spring, Lower
48341	48341-20240	Bumper, Rear Spring, No.1
48409	48409-20030	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-20010	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-29325	Absorber Assy, Shock, Rear Rh
48530	48530-29335	Absorber Assy, Shock, Rear Rh
48540	48540-29055	Absorber Assy, Shock, Rear Lh
48540	48540-29065	Absorber Assy, Shock, Rear Lh
48703	90179-14045	Nut(For Front Shock Absorber Bracket Lower)
48703	90209-13005	Washer(For Rear Suspension Arm)
48703	90119-12083	Bolt(For Front Suspension Lower Arm)
48703	90119-12285	Bolt(For Rear Suspension Arm)
48703	90119-14024	Bolt(For Rear Suspension Arm)
48710	48710-20330	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-20200	Arm Assy, Rear Suspension, No.2 Rh
48753	48753-12050	Cover, Rear Suspension Support
48780	48780-20170	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48812	48812-2B020	Bar, Stabilizer, Rear
48818	48818-12160	Bush, Stabilizer, Rear
48830	48830-20010	Link Assy, Rear Stabilizer
48832	48832-20030	Bracket, Stabilizer(For Rear)
9017908122	90179-08122	Nut(For Rear Suspension Support)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9017914015	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
9038715012	90387-15012	Collar(For Rear Support To Rear Shock Absorber)
9038715012	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
42304-20280	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
42304-20290	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
42305-20280	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
42305-20290	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48071-20151	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48072-20061	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48231-2G410	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48258-20030	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48341-20240	Bumper, Rear Spring, No.1	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48409-20030	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48452-20010	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48530-29325	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48530-29335	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48540-29055	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48540-29065	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48710-20330	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48730-20200	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48753-12050	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48780-20170	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48812-2B020	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48818-12160	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
48832-20030	Bracket, Stabilizer(For Rear)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90119-12083	Bolt(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90119-12285	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90119-14024	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90179-14045	Nut(For Front Shock Absorber Bracket Lower)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90209-13005	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90387-15012	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([05.1994 - ] (9405- )ST205)
