Search › Model › ST205

ST205

Toyota CARINA · 1994 · 4,670 parts · 199 categories

4,670 items

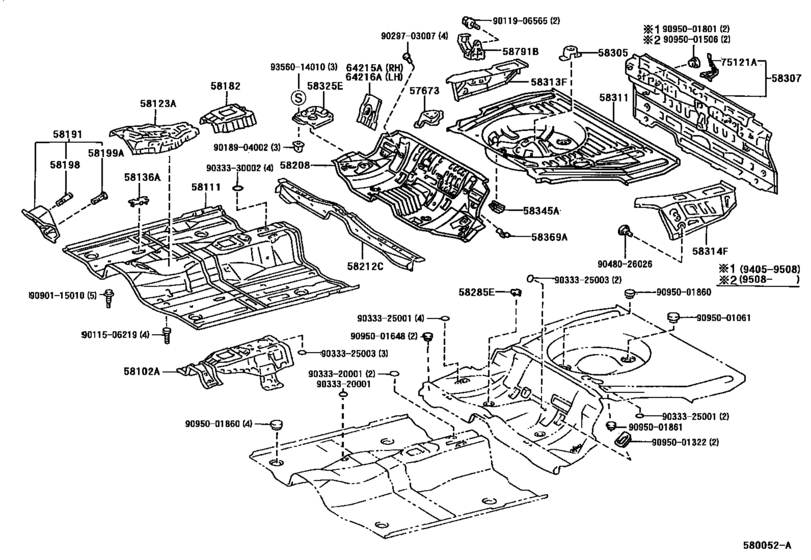

Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205) 44

#	OEM	Part name
57673	57673-20090	Bracket, Rear Seat Back Hinge Mounting
58102	58102-20190	Reinforcement Sub-Assy, Front Floor
58111	58111-20170	Pan, Front Floor
58111	58111-20230	Pan, Front Floor
58123	58123-20090	Support, Shift & Select Lever
58136	58136-33010	Cover, Front Floor Hole
58182	58182-20080	Bracket, Front Seat Inside Mounting, Front Lh
58191	58191-20070	Footrest, Front Floor
58198	58198-20160	Clip, Footrest
58199	58199-20040	Clip, Footrest, No.2
58208	58211-20390	Pan, Center Floor
58212	58212-20090	Pan, Center Floor, Front
58285	58285-20030	Cover, Rear Floor Hole
58305	58305-10011	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-2B230	Panel Sub-Assy, Body Lower Back
58311	58311-20360	Pan, Rear Floor
58313	58313-20905	Extension, Rear Floor Pan To Quarter Panel, Rh
58314	58314-20360	Extension, Rear Floor Pan To Quarter Panel, Lh
58325	58325-20040	Cover, Rear Floor Service Hole
58345	58345-20070	Bracket, Rear Floor Heat Insulator, No.1
58369	58369-20010	Bracket, Fuel Tube, No.3
58791	58791-20130	Carrier, Jack
64215	64215-20040	Extension, Rear Floor To Package Tray, Rh
64216	64216-20050	Extension, Rear Floor To Package Tray, Lh
75121	75121-20180	Bracket, Rear License Plate
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011906565	90119-06565	BOLT WWASHER
9018904002	90189-04002	GROMMET
9029703007	90297-03007	Retainer, Rear Heater Mounting
9033320001	90333-20001	PLUG
9033325001	90333-25001	Plug, Hole(For Hood)
9033325003	90333-25003	Plug, Hole(For Hood)
9033330002	90333-30002	Cover, Front Floor Hole
9048026026	90480-26026	Grommet, Sliding Roof Drain
9090115010	90901-15010	New Genuine Part
9095001061	90950-01061	Plug, Hole, No.3(For Dash Panel)
9095001061	90950-01872	Plug, Hole, No.3(For Dash Panel)
9095001322	90950-01322	New Genuine Part
9095001506	90950-01506	Plug, Hole(For Luggage Compartment Door Panel)
9095001648	90950-01648	New Genuine Part
9095001801	90950-01801	PLUG HOLE
9095001860	90950-01860	PLUG HOLE
9095001861	90950-01861	New Genuine Part
9356014010	93560-14010	SCREW

OEM	Part name	Category
57673-20090	Bracket, Rear Seat Back Hinge Mounting	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58102-20190	Reinforcement Sub-Assy, Front Floor	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58111-20170	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58111-20230	Pan, Front Floor	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58123-20090	Support, Shift & Select Lever	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58136-33010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58182-20080	Bracket, Front Seat Inside Mounting, Front Lh	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58191-20070	Footrest, Front Floor	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58198-20160	Clip, Footrest	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58199-20040	Clip, Footrest, No.2	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58211-20390	Pan, Center Floor	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58212-20090	Pan, Center Floor, Front	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58285-20030	Cover, Rear Floor Hole	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58305-10011	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58307-2B230	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58311-20360	Pan, Rear Floor	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58313-20905	Extension, Rear Floor Pan To Quarter Panel, Rh	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58314-20360	Extension, Rear Floor Pan To Quarter Panel, Lh	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58325-20040	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58345-20070	Bracket, Rear Floor Heat Insulator, No.1	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58369-20010	Bracket, Fuel Tube, No.3	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
58791-20130	Carrier, Jack	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
64215-20040	Extension, Rear Floor To Package Tray, Rh	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
64216-20050	Extension, Rear Floor To Package Tray, Lh	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
75121-20180	Bracket, Rear License Plate	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90119-06565	BOLT WWASHER	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90189-04002	GROMMET	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90297-03007	Retainer, Rear Heater Mounting	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90333-20001	PLUG	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90333-25001	Plug, Hole(For Hood)	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90333-25003	Plug, Hole(For Hood)	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90333-30002	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90480-26026	Grommet, Sliding Roof Drain	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90901-15010	New Genuine Part	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01061	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01322	New Genuine Part	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01506	Plug, Hole(For Luggage Compartment Door Panel)	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01648	New Genuine Part	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01801	PLUG HOLE	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01860	PLUG HOLE	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01861	New Genuine Part	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
90950-01872	Plug, Hole, No.3(For Dash Panel)	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
93560-14010	SCREW	Floor Pan & Lower Back Panel ([05.1994 - ] (9405- )ST205)
