Search › Model › ST204

ST204

Toyota CELICA · 1993 · 4,105 parts · 192 categories
ST204 ×

← Back to categories

4,105 items

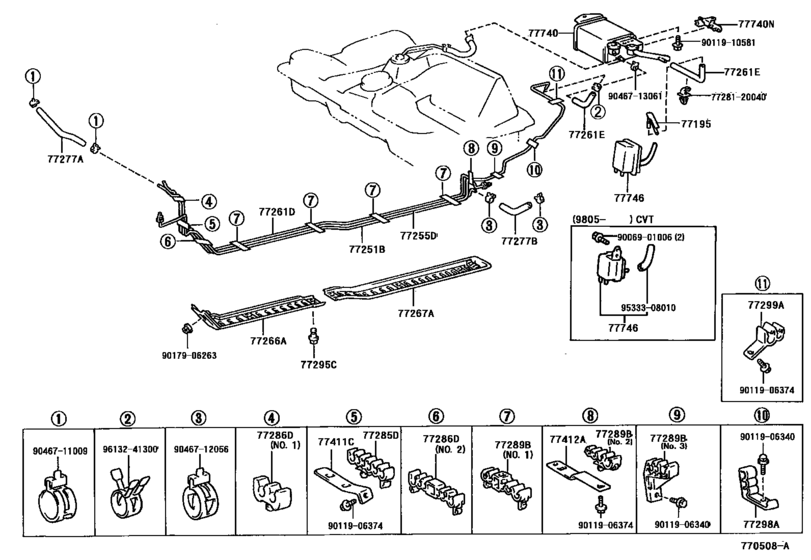

Fuel Tank & Tube ([12.1997 - ] CALIFORNIA SPEC (9712- )USA ; (9808- )CND) 54
#OEMPart name
77195 77195-20070 Tube, Fuel Expansion
77251 77251-20710 Tube, Fuel Main
77255 77255-20580 Tube, Fuel Return
77261 77261-20280 Tube, Fuel Tank To Canister
77261 77261-20380 Tube, Fuel Tank To Canister
77261 77259-20160 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77261 95333-08020 Hose, Lpg Injector
77261 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77261 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77266 77266-20130 Protector, Fuel Tube, No.1
77267 77267-20130 Protector, Fuel Tube, No.2
77277 23271-74500 Hose, Fuel, No.1(For Return Tube, No.1)
77277 90447-12084 Hose, Fuel
77277 23271-74680 Hose, Fuel, No.1(For Return Tube, No.1)
77277 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77277 95337-06020 Hose, Differential Pressure Control
77285 77285-20110 Clamp, Fuel Tube, No.1
77285 77285-20160 Clamp, Fuel Tube, No.1
77286 77286-10010 Clamp, Fuel Tube W/grommet, No.2
77286 77286-20080 Clamp, Fuel Tube, No.2
77286 77286-20160 Clamp, Fuel Tube, No.2
77286 77286-23010 Clamp, Fuel Tube W/grommet, No.2
77289 77289-20020 Clamp, Fuel Tube, No.3
77289 77289-20030 Clamp, Fuel Tube, No.3
77289 77289-20040 Clamp, Fuel Tube, No.3
77289 77289-20050 Clamp, Fuel Tube, No.3
77289 77289-22020 Clamp, Fuel Tube W/grommet, No.3
77295 77295-22090 Grommet, Fuel Tube
77298 77298-20030 Clamp, Fuel Tube, No.4
77299 77299-20030 Clamp, Fuel Tube, No.5
77411 77411-20040 Support, Fuel Tube Grommet, No.1
77412 77412-20050 Support, Fuel Tube Grommet, No.2
77740 77740-20450 Canister Assy, Charcoal
77740 77740-20490 Canister Assy, Charcoal
77740 90910-12191 Valve, Vacuum Switching(For Charcoal Canister)
77746 77746-20010 Filter, Charcoal Canister, No.2
7728120040 77281-20040 Bracket, Fuel Main Tube, No.1
9006901006 90069-01006 New Genuine Part
9006901006 90080-11272 New Genuine Part
9011906340 90119-06340 BOLT
9011906374 90119-06374 BOLT
9011906374 91653-A0614 BOLT WWASHER
9011910581 90119-10581 Bolt, Fuel Tank
9011910581 91645-C1032 Bolt, Fuel Tank
9017906263 90179-06263 Nut (For Rear Wiper Arm Setting)
9017906263 90179-06178 Nut (For Rear Wiper Arm Setting)
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9533308010 95333-08010 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
9613241300 96132-41300 Clip, No.4(For Idle-Up Hose)
9613241300 96132-51300 Clip(For Ventilation Hose No.2)
