Search › Model › ST204

ST204

Toyota CELICA · 1993 · 4,105 parts · 192 categories
ST204 ×

← Back to categories

4,105 items

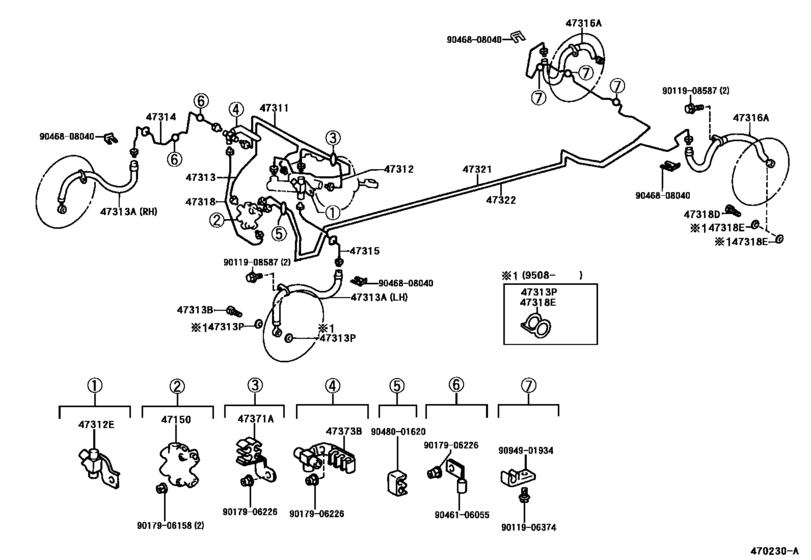

Brake Tube & Clamp ([09.1993 - ] (9309- )ST204) 32
#OEMPart name
47150 47150-20240 Valve Assy, Proportioning
47311 47311-2B090 Tube, Front Brake, No.1
47311 47311-2B170 Tube, Front Brake, No.1
47312 47311-2B120 Tube, Front Brake, No.2
47312 90904-12015 Way, No.2(For Front Brake Tube)
47312 90904-13009 Way, No.2(For Front Brake Tube)
47313 47313-20700 Tube, Front Brake, No.3
47313 47313-20770 Tube, Front Brake, No.3
47313 90947-02847 Hose, Flexible, No.1(For Front)
47313 90947-02848 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-20590 Tube, Front Brake, No.4
47314 47314-20650 Tube, Front Brake, No.4
47315 47315-20640 Tube, Front Brake, No.5
47316 90947-02852 Hose, Flexible(For Rear Brake Tube)
47318 47318-20350 Tube, Front Brake, No.8
47318 47318-20390 Tube, Front Brake, No.8
47321 47321-20380 Tube, Rear Brake, No.1
47322 47322-20490 Tube, Rear Brake, No.2
47371 47371-20530 Clamp, Brake Tube, No.1
47373 47371-20540 Clamp, Brake Tube, No.3
9011906374 90119-06374 BOLT
9011906374 91653-A0614 BOLT WWASHER
9011908587 90119-08587 New Genuine Part
9011908587 90129-08007 New Genuine Part
9017906158 90179-06158 Nut, Rear Wiper Link Pivot, No.2
9017906226 90179-06226 Nut (For Rear Wiper Arm Setting)
9046106055 90461-06055 Clamp, Brake Tube, No.1
9046808040 90468-08040 CLIP
9048001620 90480-01620 Grommet, No.1(For Front Brake Tube)
9094901934 90949-01934 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 30
Category
192
Collected
2026-08-02
