Search › Model › ST202

ST202

Toyota CARINA · 1993 · 4,710 parts · 229 categories

4,710 items

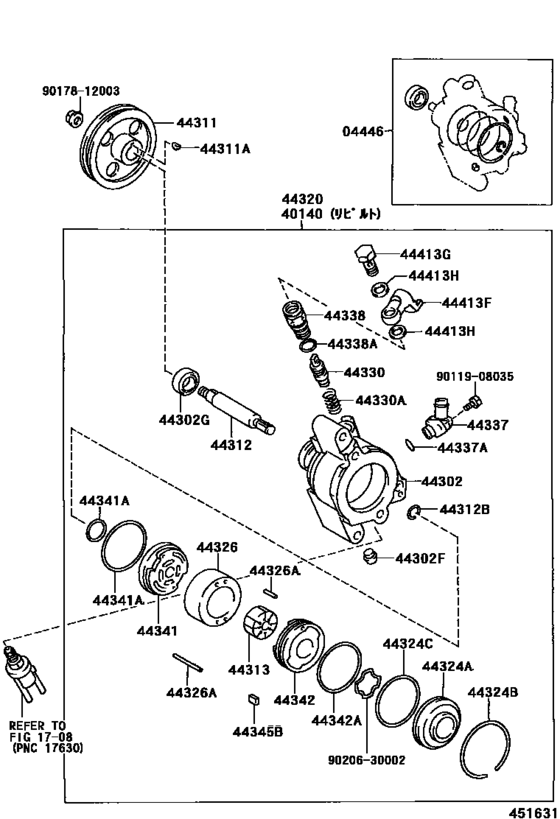

Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- )) 71

#	OEM	Part name
4446	04446-20090	Gasket Kit, Power Steering Pump
40140	40140-20451	Pump Assy,vane Rebuilt
40140	40140-20471	Pump Assy,vane Rebuilt
44302	44302-20060	Housing Sub-Assy, Vane Pump, Front
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir
44311	44311-20060	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-20451	Pump Assy, Vane
44320	44320-20461	Pump Assy, Vane
44320	44320-20471	Pump Assy, Vane
44324	44324-20050	Housing, Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-53006	Ring, O(For Pump Housing Rear)
44324	90301-53007	Ring, O(For Pump Housing Rear)
44326	44325-12110	Ring, Fixed(For Vane Pump)
44326	44325-12120	Ring, Fixed(For Vane Pump)
44326	44325-12130	Ring, Fixed(For Vane Pump)
44326	44325-12140	Ring, Fixed(For Vane Pump)
44326	44325-12150	Ring, Fixed(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-20400	Valve Assy, Flow Control
44330	44330-26190	Valve Assy, Flow Control
44330	44330-20410	Valve Assy, Flow Control
44330	44330-26200	Valve Assy, Flow Control
44330	44330-20420	Valve Assy, Flow Control
44330	44330-26210	Valve Assy, Flow Control
44330	44330-20430	Valve Assy, Flow Control
44330	44330-26220	Valve Assy, Flow Control
44330	44330-20440	Valve Assy, Flow Control
44330	44330-26230	Valve Assy, Flow Control
44330	44330-20450	Valve Assy, Flow Control
44330	44330-26240	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44337	44337-12020	Union, Power Steering Suction Port
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44337	90301-12003	Ring, O(For Power Steering Suction Port)
44338	44308-20080	Union, Pressure Port
44338	44308-20090	Union, Pressure Port
44338	90301-19003	Ring, O(For Pressure Port Union)
44338	90301-19018	Ring, O(For Pressure Port Union)
44338	90301-19013	Seal, Oil, No.1(For Vane Pump Housing)
44341	44341-20010	Plate, Vane Pump Side, Front
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44341	90301-53004	Ring, O(For Pump Housing Rear)
44342	44342-20030	Plate, Vane Pump Side, Rear
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-20180	Reservoir Assy, Vane Pump Oil
44360	44360-20170	Reservoir Assy, Vane Pump Oil
44369	44390-20030	Bracket, Oil Reservoir, No.1
44413	44413-10040	Tube, Pressure Feed, No.2
44413	96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)
44413	90430-16242	Gasket, W/head Straight Screw Plug
9011908035	90119-08035	New Genuine Part
9017812003	90178-12003	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9166660616	91666-60616	New Genuine Part

OEM	Part name	Category
04446-20090	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
40140-20451	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
40140-20471	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44302-20060	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44305-12030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44305-12040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44308-20080	Union, Pressure Port	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44308-20090	Union, Pressure Port	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44311-20060	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44320-20451	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44320-20461	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44320-20471	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44324-20050	Housing, Pump, Rear	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44325-12110	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44325-12120	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44325-12130	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44325-12140	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44325-12150	Ring, Fixed(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-20400	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-20410	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-20420	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-20430	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-20440	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-20450	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-26190	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-26200	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-26210	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-26220	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-26230	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44330-26240	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44337-12020	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44341-20010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44342-20030	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44360-20170	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44360-20180	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44390-20030	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
44413-10040	Tube, Pressure Feed, No.2	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-12003	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-19003	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-19013	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-53004	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-53006	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90301-53007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90430-16242	Gasket, W/head Straight Screw Plug	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
91666-60616	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)	Vane Pump & Reservoir (Power Steering) ([09.1993 - ] (9309- ))
