ST202

Toyota CARINA · 1993 · 4,710 parts · 229 categories
ST202 ×

← Back to categories

4,710 items

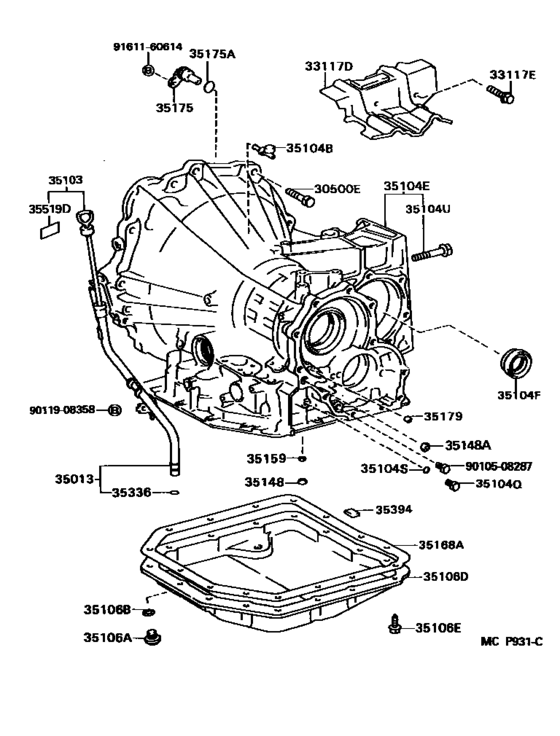

Transmission Case & Oil Pan (Atm) ([09.1993 - 04.1998] A140E (9309-9804)ST200,201,202,203..ATM) 33
#OEMPart name
30500 90105-08040 Bolt(For Plate Bolt Lock)
30500 91641-H0820 Bolt
30500 90105-10077 Bolt(For Transaxle Case Protector)
30500 91619-61245 Bolt(For Transaxle & Engine Setting)
33117 33117-32060 Protector, Automatic Transmission Case
35013 35013-20620 Tube Sub-Assy, Transmission Oil Filler
35103 35103-20320 Gage Sub-Assy, Transmission Oil Level
35104 90930-03089 Plug, Breather, No.1 (Atm)
35104 35104-32170 Case Sub-Assy, Automatic Transaxle
35104 90311-35019 Seal, Oil, No.2(For Transaxle Case)
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90301-06196 O Ring, Transaxle Case, No.1
35104 90105-12052 Bolt (For Transaxle Case)
35104 90105-12263 Bolt (For Rear Axle Carrier)
35106 90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)
35106 90430-18008 Gasket
35106 90430-T0021 Gasket(For Manual Transmission Filler Plug)
35106 35106-10022 Pan Sub-Assy, Automatic Transaxle Oil
35106 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35148 35148-16010 Gasket (For Automatic Transfer Case)
35159 35159-32011 Gasket, Brake Drum
35168 35168-32010 Gasket, Automatic Transaxle Oil Pan
35175 35175-32010 Cap, Transaxle Case, No.2
35175 90301-21002 Ring, O (For Transaxle Case Cap)
35179 35179-32010 Gasket, Overdrive Brake
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
35519 35519-32040 Label, Automatic Transmission Information
9010508287 90105-08287 New Genuine Part
9011908358 90119-08358 BOLT WWASHER
9011908358 91621-G0816 BOLT WWASHER
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
