ST202

Toyota CARINA · 1993 · 4,710 parts · 229 categories
ST202 ×

← Back to categories

4,710 items

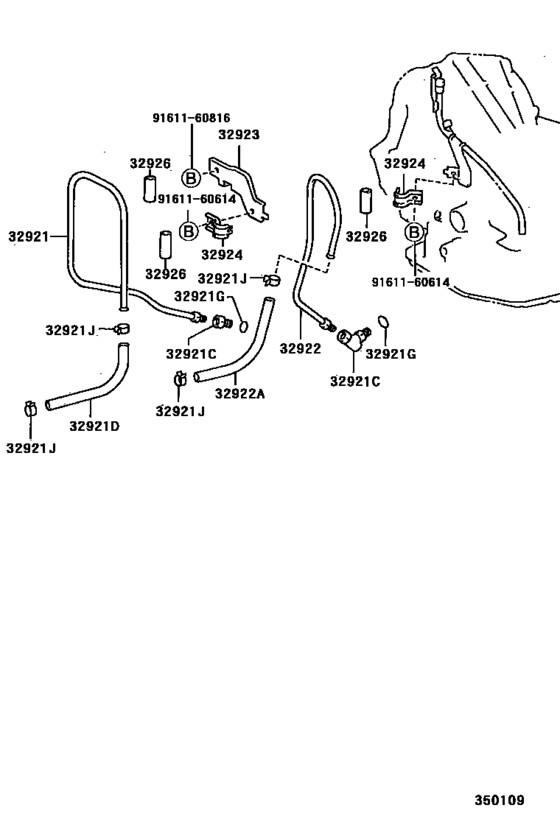

Oil Cooler & Tube (Atm) ([09.1993 - 04.1998] A140E (9309-9804)ST200,201,202,203..ATM) 16
#OEMPart name
32921 32921-20380 Tube, Oil Cooler Inlet, No.1
32921 32901-32060 Union(For Oil Cooler Tube)
32921 90404-16031 Union(For Transaxle Housing)
32921 90445-17106 Hose(For Oil Cooler Inlet)
32921 90301-10189 Ring, O(For Oil Cooler Tube Union)
32921 90467-16013 Clip(For Oil Return Hose)
32921 90467-16022 Clip(For Water Inlet Hose)
32922 32922-20400 Tube, Oil Cooler Outlet, No.1
32923 32923-20111 Clamp, Automatic Transmission Oil Cooler Tube
32924 32924-20080 Clamp, Oil Cooler Tube, No.2
32924 32924-48010 Clamp, Oil Cooler Tube, No.2
32926 32926-20010 Cushion, Oil Cooler Tube(Atm)
9161160614 91611-60614 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614 91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
