ST202

Toyota CARINA · 1993 · 4,710 parts · 229 categories
ST202 ×

← Back to categories

4,710 items

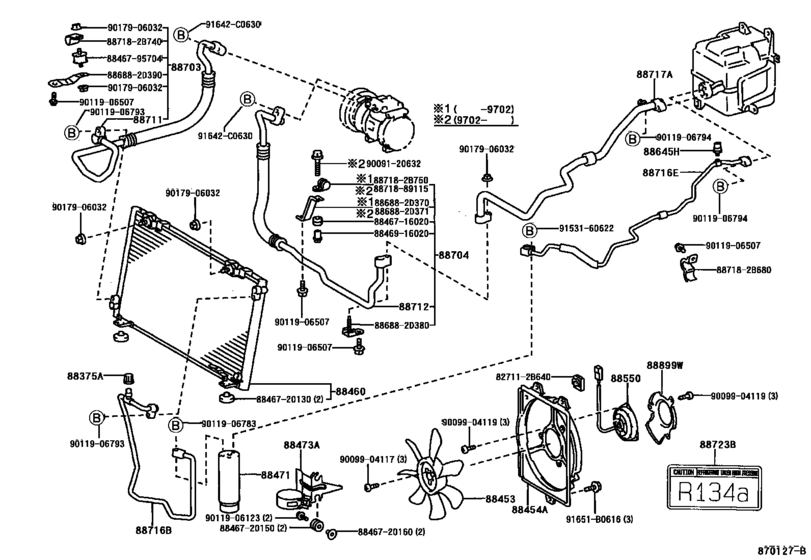

Heating & Air Conditioning - Cooler Piping ([09.1993 - ] (9309- )) 65
#OEMPart name
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88453 88453-20070 Fan, Cooling (For Condenser)
88454 88454-20140 Shroud, Fan
88460 88460-20470 Condenser Assy, Cooler
88471 88471-20050 Receiver & Dryer Assy, Cooler
88471 88471-34010 Receiver & Dryer Assy, Cooler
88473 88472-20170 Holder, Receiver
88550 16363-46030 Motor, Cooling Fan
88645 88645-20050 Switch, Pressure
88703 88703-20120 Hose Sub-Assy, Discharge
88704 88704-20170 Hose Sub-Assy, Suction
88704 88704-20150 Hose Sub-Assy, Suction
88711 88711-2B130 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-2B590 Hose, Cooler Refrigerant Suction, No.1
88712 88712-2B510 Hose, Cooler Refrigerant Suction, No.1
88716 88706-20130 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2D290 Pipe, Cooler Refrigerant Liquid, E
88717 88717-2B460 Pipe, Cooler Refrigerant Suction, A
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
88899 88899-20280 Support Sub-Assy, B
88899 88899-20270 Support Sub-Assy, B
91642 91642-C0630 New Genuine Part
91651 91651-B0616 BOLT WWASHER
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
886882 88688-2D370 Bracket, Cooler Diaphragm
886882 88688-2D371 Bracket, Cooler Diaphragm
886882 88688-2D380 Bracket, Cooler Diaphragm
886882 88688-2D390 Bracket, Cooler Diaphragm
887182 88718-2B680 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2B740 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2B750 Pipe, Cooler Refrigerant Suction, No.2
8846716020 88467-16020 Cushion, Cooler Condenser, No.2
8846720130 88467-20130 Cushion, Cooler Condenser, No.1
8846720150 88467-20150 Cushion, Cooler Condenser, No.1
8846720160 88467-20160 Cushion, Cooler Condenser, No.1
8846795704 88467-95704 Cushion, Cooler Condenser, No.1
8846916020 88469-16020 Insulator, Cooler Condenser Mounting
8871889115 88718-89115 Pipe, Cooler Refrigerant Suction, No.2
9009120632 90091-20632 New Genuine Part
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904119 90099-04119 BOLT WASHER HEAD
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914045 90099-14045 Ring, O(For Cooler Refrigerant Suction Hose)
9009914046 90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose)
9009914056 90099-14056 New Genuine Part
9009914067 90099-14067 New Genuine Part
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9009914122 90099-14122 O-RING
9009914125 90099-14125 RINGO
9011906123 90119-06123 New Genuine Part
9011906123 90119-06465 BOLT
9011906507 90119-06507 New Genuine Part
9011906783 90119-06783 New Genuine Part
9011906783 91651-B0628 New Genuine Part
9011906793 90119-06793 New Genuine Part
9011906793 90119-06775 BOLT WWASHER
9011906794 90119-06794 New Genuine Part
9011906794 91632-G0635 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9153160622 91531-60622 New Genuine Part
