ST202

Toyota CARINA · 1993 · 4,710 parts · 229 categories
ST202 ×

← Back to categories

4,710 items

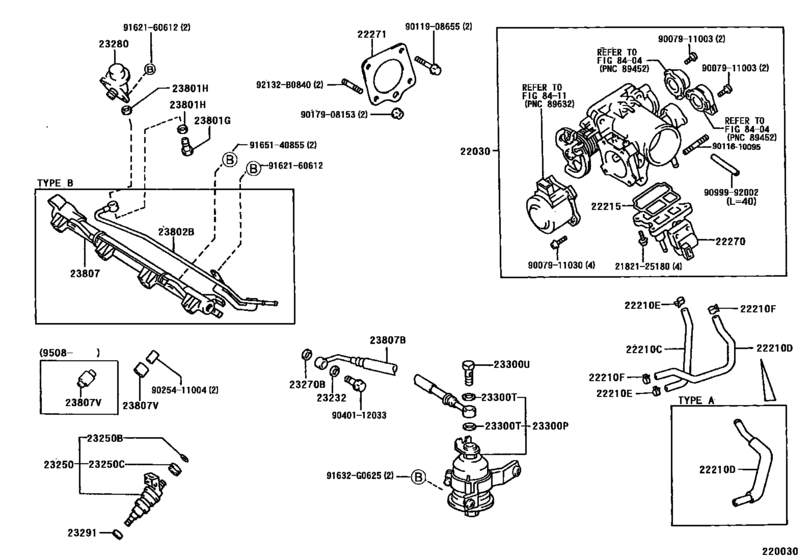

Fuel Injection System ([09.1993 - 06.1996] ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) (9309-9606)3SFE) 46
#OEMPart name
22030 22030-74040 Body Assy, Throttle W/motor
22210 16282-74050 Hose, Water By-Pass, No.1
22210 16283-74050 Hose, Water By-Pass, No.1
22210 16282-74100 Hose, Water By-Pass, No.1
22210 16283-74010 Hose, Water By-Pass, No.1
22210 90467-13050 Clamp Or Clip, Hose(For Water By-Pass Hose)
22210 96135-51300 Clamp, Hose
22215 22215-74400 Gasket, Throttle Body Cover
22270 22270-74250 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-74260 Valve Assy, Idle Speed Control(For Thlottle Body)
22270 22270-74270 Valve Assy, Idle Speed Control(For Thlottle Body)
22271 22271-74022 Gasket, Throttle Body
22271 22271-74070 Gasket, Throttle Body
23232 23279-74010 Gasket(For Fuel Pump Hose)
23250 23209-74040 Injector Assy, Fuel
23250 23209-74170 Injector Assy, Fuel
23250 90301-07001 Ring, O(For Fuel Injector)
23250 90480-13005 Grommet(For Fuel Injector)
23280 23280-74151 Regulator Assy, Fuel Pressure
23291 23291-41010 Insulator, Injector Vibration
23300 23300-79425 Filter, Fuel(For Efi)
23300 90430-12026 Gasket
23300 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
23300 96341-11200 Bolt, Union(For Turbo Oil Inlet Pipe)
23801 90401-08004 Bolt Union(For Oil Jet)
23801 90430-08014 Gasket(For Oil Filter Outlet Pipe)
23802 23802-74070 Pipe Sub-Assy, Fuel, No.2
23807 23814-74110 Pipe Sub-Assy, Fuel Delivery
23807 23814-74071 Pipe Sub-Assy, Fuel Delivery
23807 23271-74460 Hose, Fuel Delivery Pipe
23807 23271-74540 Hose, Fuel Delivery Pipe
23807 90561-08053 Spacer, No.1(For Delivery Pipe)
91632 91632-G0625 New Genuine Part
91632 91631-G0625 New Genuine Part
92132 92132-B0840 New Genuine Part
2182125180 21821-25180 Screw, Set, No.2(For Carburetor Body Set)
9007911003 90079-11003 New Genuine Part
9007911030 90079-11030 New Genuine Part
9011908655 90119-08655 New Genuine Part
9017908153 90179-08153 NUT
9025411004 90254-11004 New Genuine Part
9040112033 90401-12033 Bolt, Union(For Fuel Pipe)
9099992002 90999-92002 Air Hose (300 mm)
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9165140855 91651-40855 New Genuine Part
