ST202

Toyota CARINA · 1993 · 4,710 parts · 229 categories

4,710 items

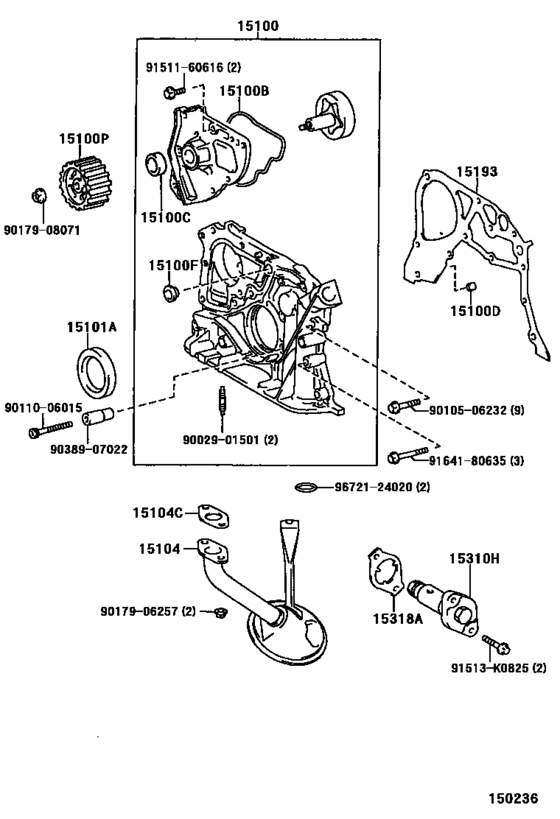

Engine Oil Pump ([09.1993 - ] (9309- )3SGE) 26

#	OEM	Part name
15100	15100-88460	Pump Assy, Oil
15100	15188-88382	Ring, O(For Oil Pump)
15100	15188-74050	Ring, O(For Oil Pump)
15100	15165-88382	Seal(For Oil Pump)
15100	90253-09001	Pin, Ring W/head
15100	90029-38302	Bush (For Oil Pump)
15100	13524-88460	Pulley, Oil Pump Drive Shaft
15101	90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
15104	15104-88461	Strainer Sub-Assy, Oil
15104	15104-88460	Strainer Sub-Assy, Oil
15104	15149-88460	Gasket(For Oil Strainer)
15193	15197-88460	Gasket, Oil Pump
15310	15310-88460	Regulator Assy, Oil
15318	15318-88460	Gasket, Oil Regulator Body
91513	91513-K0825	New Genuine Part
91513	90105-08380	New Genuine Part
9002901501	90029-01501	Bolt,stud(For Oil Pump)
9010506232	90105-06232	New Genuine Part
9011006015	90110-06015	New Genuine Part
9017906257	90179-06257	NUT
9017908071	90179-08071	New Genuine Part
9038907022	90389-07022	New Genuine Part
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9164180635	91641-80635	New Genuine Part
9672124020	96721-24020	O-Ring

OEM	Part name	Category
13524-88460	Pulley, Oil Pump Drive Shaft	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15100-88460	Pump Assy, Oil	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15104-88460	Strainer Sub-Assy, Oil	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15104-88461	Strainer Sub-Assy, Oil	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15149-88460	Gasket(For Oil Strainer)	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15165-88382	Seal(For Oil Pump)	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15188-74050	Ring, O(For Oil Pump)	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15188-88382	Ring, O(For Oil Pump)	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15197-88460	Gasket, Oil Pump	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15310-88460	Regulator Assy, Oil	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
15318-88460	Gasket, Oil Regulator Body	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90029-01501	Bolt,stud(For Oil Pump)	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90029-38302	Bush (For Oil Pump)	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90105-06232	New Genuine Part	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90105-08380	New Genuine Part	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90110-06015	New Genuine Part	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90179-06257	NUT	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90179-08071	New Genuine Part	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90253-09001	Pin, Ring W/head	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
90389-07022	New Genuine Part	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
91511-60616	BOLTFLANGE	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
91511-B0616	BOLT, FLANGE	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
91513-K0825	New Genuine Part	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
91641-80635	New Genuine Part	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
96721-24020	O-Ring	Engine Oil Pump ([09.1993 - ] (9309- )3SGE)
