ST200

Toyota CARINA · 1993 · 4,188 parts · 196 categories
ST200 ×

← Back to categories

4,188 items

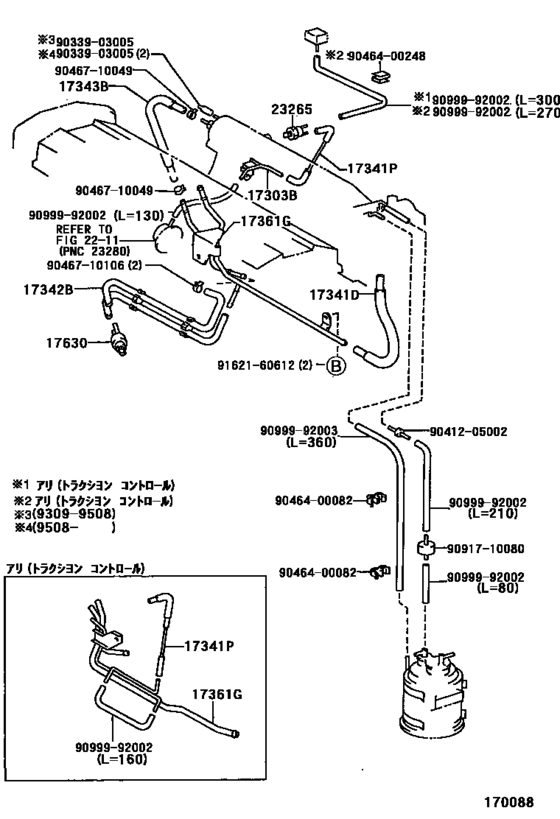

Vacuum Piping ([09.1993 - 06.1996] (9309-9606)3SFE,4SFE) 26
#OEMPart name
17303 17303-74040 Pipe Sub-Assy, Air, No.1
17341 17341-74340 Hose, No.1(For Idle-Up)
17341 17341-74350 Hose, Air
17342 17343-74100 Hose, No.2(For Idle-Up)
17343 17343-74040 Hose, No.2(For Idle-Up)
17343 17343-74160 Hose, No.2(For Idle-Up)
17361 17361-74100 Tube, Air(For Idle-Up)
17361 17361-74180 Tube, Air(For Idle-Up)
17630 17630-70020 Valve Assy, Air Control
17630 17630-16040 Valve Assy, Air Control
23265 90917-11022 Filter, Gas, No.1
23265 90917-11023 Filter, Gas, No.1
23265 90917-11037 Filter, Gas, No.1
9033903005 90339-03005 Plug, No.1
9041205002 90412-05002 Way, 2(For Fuel Expansion Tank)
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400248 90464-00248 New Genuine Part
9046710049 90467-10049 Clamp Or Clip(For Fuel Hose Set)
9046710049 90467-10149 Clip, No.2(For Idle-Up Hose)
9046710106 90467-10106 Clip, No.1(For Idle-Up Hose)
9046710106 96132-51000 Clip Or Clamp(For Ventilation Hose)
9091710080 90917-10080 Filter, Gas, No.1
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
