ST200

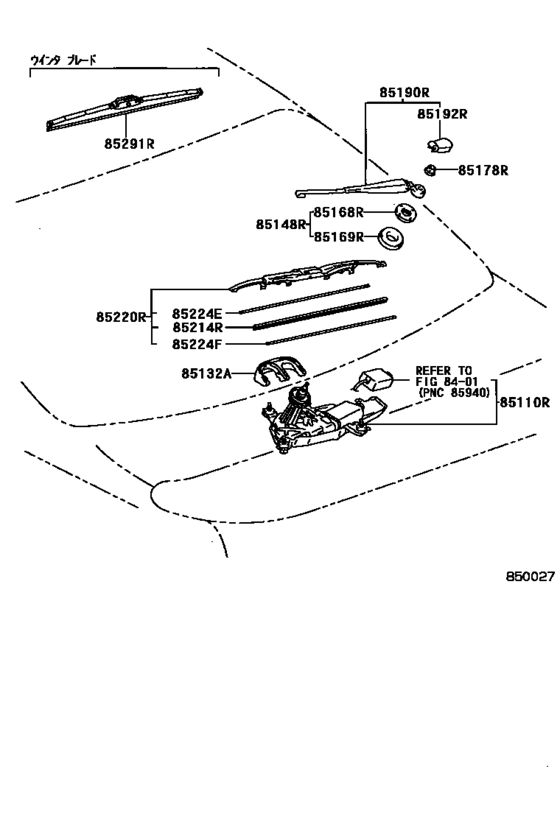

Rear Wiper ([09.1993 - ] (9309- )) 13
| # | OEM | Part name |
|---|---|---|
| 85110 | 85130-20740 | Motor Assy, Rear Wiper |
| 85132 | 85132-20710-B0 | Cover, Rear Wiper Shaft |
| 85148 | 85148-12020 | Nut, W/washer Packing, Rear Wiper Link Pivot |
| 85168 | 90179-22013 | Nut, Wiper Motor |
| 85169 | 90210-28002 | Washer, Rear Wiper Link Pivot, No.1 |
| 85178 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| 85190 | 85241-20050 | Arm Assy, Rear Wiper |
| 85192 | 85192-13060 | Cover, Rear Wiper Arm |
| 85214 | 85214-20380 | Rubber, Rear Wiper |
| 85220 | 85242-20040 | Blade Assy, Rear Wiper |
| 85224 | 85224-20380 | Plate, Rear Wiper Rubber Backing, No.1 |
| 85291 | 85291-60060 | Blade Assy, Windshield Wiper |
| 85291 | 85291-44080 | Blade Assy, Windshield Wiper |
| OEM | Part name | Category |
|---|---|---|
| 85130-20740 | Motor Assy, Rear Wiper | Rear Wiper ([09.1993 - ] (9309- )) |
| 85132-20710-B0 | Cover, Rear Wiper Shaft | Rear Wiper ([09.1993 - ] (9309- )) |
| 85148-12020 | Nut, W/washer Packing, Rear Wiper Link Pivot | Rear Wiper ([09.1993 - ] (9309- )) |
| 85192-13060 | Cover, Rear Wiper Arm | Rear Wiper ([09.1993 - ] (9309- )) |
| 85214-20380 | Rubber, Rear Wiper | Rear Wiper ([09.1993 - ] (9309- )) |
| 85224-20380 | Plate, Rear Wiper Rubber Backing, No.1 | Rear Wiper ([09.1993 - ] (9309- )) |
| 85241-20050 | Arm Assy, Rear Wiper | Rear Wiper ([09.1993 - ] (9309- )) |
| 85242-20040 | Blade Assy, Rear Wiper | Rear Wiper ([09.1993 - ] (9309- )) |
| 85291-44080 | Blade Assy, Windshield Wiper | Rear Wiper ([09.1993 - ] (9309- )) |
| 85291-60060 | Blade Assy, Windshield Wiper | Rear Wiper ([09.1993 - ] (9309- )) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Rear Wiper ([09.1993 - ] (9309- )) |
| 90179-22013 | Nut, Wiper Motor | Rear Wiper ([09.1993 - ] (9309- )) |
| 90210-28002 | Washer, Rear Wiper Link Pivot, No.1 | Rear Wiper ([09.1993 - ] (9309- )) |
