Search › Model › ST200

ST200

Toyota CARINA · 1993 · 4,188 parts · 196 categories

4,188 items

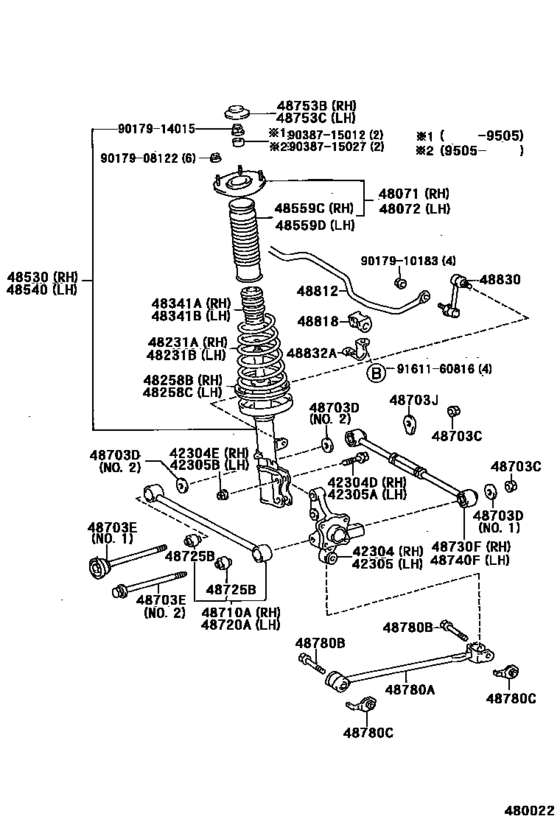

Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202) 40

#	OEM	Part name
42304	42304-20260	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-20270	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20260	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-20270	Carrier Sub-Assy, Rear Axle, Lh
48071	48071-20151	Support Sub-Assy, Rear Suspension, Rh
48072	48072-20061	Support Sub-Assy, Rear Suspension, Lh
48231	48231-2G280	Spring, Coil, Rear Rh
48258	48258-20030	Insulator, Rear Coil Spring, Lower
48341	48341-20240	Bumper, Rear Spring, No.1
48530	48530-29285	Absorber Assy, Shock, Rear Rh
48530	48530-29295	Absorber Assy, Shock, Rear Rh
48540	48540-29015	Absorber Assy, Shock, Rear Lh
48540	48540-29025	Absorber Assy, Shock, Rear Lh
48703	90179-14019	Nut
48703	90201-14017	Washer(For Rear Suspension Arm)
48703	90560-14022	Washer(For Rear Suspension Arm)
48703	90901-09001	Bolt(For Rear Suspension Arm)
48703	90901-19001	Bolt(For Rear Suspension Arm)
48703	48715-20010	Washer, No.2(For Rear Suspension Arm)
48710	48710-20310	Arm Assy, Rear Suspension, No.1 Rh
48725	48725-20460	Bush, Rear Suspension Arm, No.1
48730	48730-20191	Arm Assy, Rear Suspension, No.2 Rh
48753	48753-12050	Cover, Rear Suspension Support
48780	48780-20150	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12091	Nut(For Front Suspension Lower Arm)
48812	48812-20820	Bar, Stabilizer, Rear
48818	48818-20380	Bush, Stabilizer, Rear
48830	48830-20010	Link Assy, Rear Stabilizer
48832	48832-20070	Bracket, Rear Stabilizer Bar, No.1
9017908122	90179-08122	Nut(For Rear Suspension Support)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9017914015	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
9038715012	90387-15012	Collar(For Rear Support To Rear Shock Absorber)
9038715012	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
42304-20260	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
42304-20270	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
42305-20260	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
42305-20270	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48071-20151	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48072-20061	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48231-2G280	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48258-20030	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48341-20240	Bumper, Rear Spring, No.1	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48530-29285	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48530-29295	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48540-29015	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48540-29025	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48710-20310	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48715-20010	Washer, No.2(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48725-20460	Bush, Rear Suspension Arm, No.1	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48730-20191	Arm Assy, Rear Suspension, No.2 Rh	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48753-12050	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48780-20150	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48812-20820	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48818-20380	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
48832-20070	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90179-10183	Nut(For Front Stabilizer Link)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90179-12091	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90179-14019	Nut	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90201-14017	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90387-15012	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90560-14022	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90901-09001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
90901-19001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([09.1993 - ] (9309- )ST200,202)
