ST200

Toyota CARINA · 1993 · 4,188 parts · 196 categories
ST200 ×

← Back to categories

4,188 items

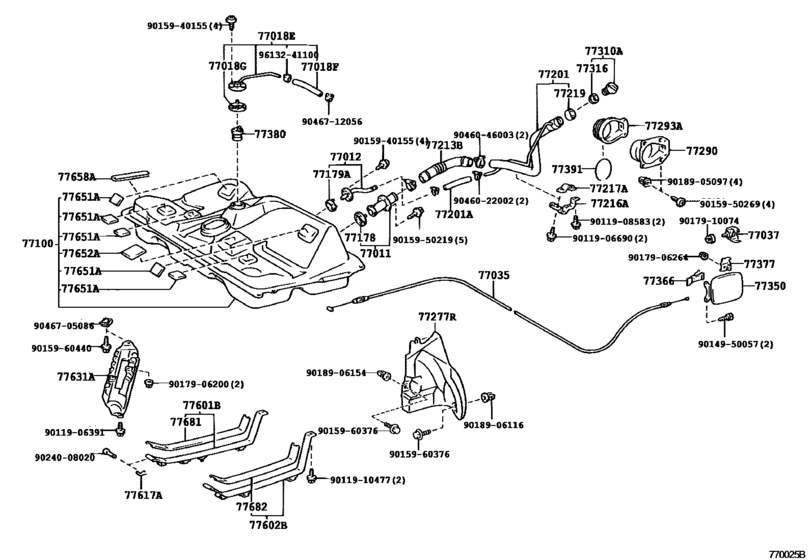

Fuel Tank & Tube ([09.1993 - ] (9309- )ST200,201,202,203) 115
#OEMPart name
77011 77011-20050 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-20110 Tube Sub-Assy, Fuel Tank Breather
77018 77018-20200 Tube Sub-Assy, Fuel Tank Evaporation Vent
77018 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77018 95337-06020 Hose, Differential Pressure Control
77018 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77018 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77035 77035-20480 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-14020 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-20941 Tank Assy, Fuel
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-20040 Gasket, Fuel Tank Breather Tube
77201 77201-20480 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-20570 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-20560 Pipe Sub-Assy, Fuel Tank Inlet
77201 95311-13016 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77201 95311-13017 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-20110 Hose, Fuel Tank To Filler Pipe
77216 77216-20150 Support, Fuel Tank Filler Pipe, No.1
77217 77217-20040 Support, Fuel Tank Filler Pipe, No.2
77219 77219-32030 Cover, Fuel Tank Filler Pipe
77251 77251-20700 Tube, Fuel Main
77251 77251-20710 Tube, Fuel Main
77255 77255-20570 Tube, Fuel Return
77255 77255-20580 Tube, Fuel Return
77261 77261-20350 Tube, Fuel Tank To Canister
77266 77266-20130 Protector, Fuel Tube, No.1
77267 77267-20130 Protector, Fuel Tube, No.2
77277 77277-20240 Protector, Fuel Tank Filler Pipe
77277 23271-74500 Hose, Fuel, No.1(For Return Tube, No.1)
77277 90447-12084 Hose, Fuel
77285 77285-20110 Clamp, Fuel Tube, No.1
77286 77286-10010 Clamp, Fuel Tube W/grommet, No.2
77286 77286-20080 Clamp, Fuel Tube, No.2
77289 77289-20020 Clamp, Fuel Tube, No.3
77289 77289-20030 Clamp, Fuel Tube, No.3
77289 77289-22020 Clamp, Fuel Tube W/grommet, No.3
77290 77290-20170 Shield Assy, Fuel Tank Filler Pipe
77293 77293-20110 Shield, Fuel Tank Filler Pipe, No.3
77295 77295-22090 Grommet, Fuel Tube
77298 77298-20030 Clamp, Fuel Tube, No.4
77299 77299-20030 Clamp, Fuel Tube, No.5
77310 77310-16011 Cap Assy, Fuel Tank
77310 77310-12140 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-20260 Lid Assy, Fuel Filler Opening
77366 77360-20050 Spring, Fuel Filler Opening Lid Hinge
77377 77377-20050 Retainer, Fuel Filler Opening Lid Lock
77380 77380-26010 Valve Assy, Fuel Cut Off
77391 77391-14020 Ring, Fuel Inlet Box
77411 77411-20040 Support, Fuel Tube Grommet, No.1
77412 77412-20050 Support, Fuel Tube Grommet, No.2
77601 77601-20180 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-20210 Band Sub-Assy, Fuel Tank, No.1 Lh
77617 77617-12010 Union, Auxiliary Fuel Band
77631 77631-20080 Protector, Fuel Tank, Lower Center
77651 77652-12100 Cushion, Fuel Tank, No.1
77652 77652-33010 Cushion, Fuel Tank, No.2
77658 77658-20020 Protector, Fuel Tank Edge, No.1
77681 77681-32060 Seat, Fuel Tank Band, Rh
77740 77740-20441 Canister Assy, Charcoal
77740 77740-20470 Canister Assy, Charcoal
77751 77751-20350 Bracket, Charcoal Canister Base
77751 77751-20351 Bracket, Charcoal Canister Base
77754 77754-20360 Hose, Charcoal Canister Outlet, No.1
77754 77754-20350 Hose, Charcoal Canister Outlet, No.2
77779 77779-20050 Tube, Charcoal Canister Outlet
91642 91642-H0614 New Genuine Part
91642 91641-H0614 New Genuine Part
2586174080 25861-74080 Bracket, Vacuum Switching Valve
9011906340 90119-06340 BOLT
9011906374 90119-06374 BOLT
9011906374 91653-A0614 BOLT WWASHER
9011906391 90119-06391 Bolt, W/Washer
9011906690 90119-06690 BOLT, W/WASHER
9011906690 90119-06375 Bolt (For Transmission Housing & Case Setting)
9011908583 90119-08583 New Genuine Part
9011910477 90119-10477 New Genuine Part
9011910477 91655-B1040 BOLT WWASHER
9014950057 90149-50057 New Genuine Part
9015940155 90159-40155 SCREW WWASHER
9015950048 90159-50048 Bolt
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950269 90159-50269 SCREW WWASHER
9015960376 90159-60376 New Genuine Part
9015960440 90159-60440 SCREW WWASHER
9017906200 90179-06200 New Genuine Part
9017906263 90179-06263 Nut (For Rear Wiper Arm Setting)
9017906263 90179-06178 Nut (For Rear Wiper Arm Setting)
9017906264 90179-06264 NUT, WWASHER
9017910074 90179-10074 New Genuine Part
9018905097 90189-05097 GROMMET SCREW
9018906116 90189-06116 CLIP
9018906154 90189-06154 GROMMET SCREW
9024008020 90240-08020 Pin (For Fuel Tank Band)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046705086 90467-05086 New Genuine Part
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9048001268 90480-01268 New Genuine Part
9048017028 90480-17028 Grommet, Radiator Reserve Tank Hose
9091012128 90910-12128 New Genuine Part
9091710085 90917-10085 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9163260612 91632-60612 BOLT WWASHER
9163260612 91631-J0612 BRACKET
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
