ST191

Toyota CALDINA · 1992 · 6,042 parts · 278 categories
ST191 ×

← Back to categories

6,042 items

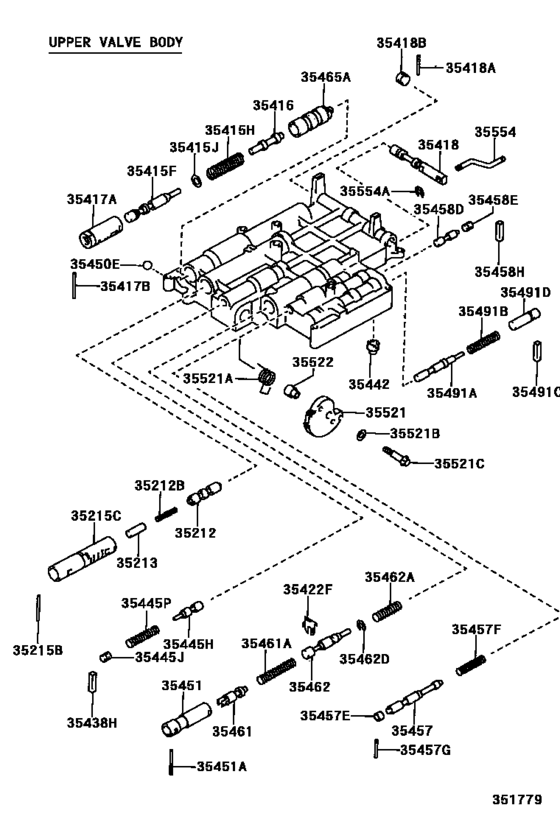

Valve Body & Oil Strainer (Atm) ([01.1996 - 08.1997] A241E (9211-9601)ST190,191..4FC ; (9601-9708)ST191) 79
#OEMPart name
35211 35211-32020 Valve, Lock Up Signal
35211 90501-07028 Spring, Compression (For Lock Up Signal Valve)
35211 90282-03002 Key, Straight (For Lock Up Signal Valve)
35212 35212-12010 Valve, Lock Up Relay
35212 90501-16077 Spring, Compression (For Lock Up Relay Valve)
35213 35213-12010 Valve, Lock Up Relay Control
35215 90250-03038 Pin, Straight (For Lock Up Relay Valve Sleeve)
35215 35215-12021 Sleeve, Lock Up Relay Valve
35415 35415-12020 Valve, Primary Regulator
35415 90201-08021 Washer, Plate (For Pressure Regulator Valve)
35416 35416-17010 Plunger, Primary Regulator Valve, No.1
35417 35417-12020 Sleeve, Primary Regulator Valve
35418 35418-12020 Valve, Manual
35418 90250-02007 Pin, Straight (For Lock Up Signal Valve)
35418 90339-04007 Plug (For Manual Valve)
35419 35419-12030 Valve, Check, No.1
35419 90501-10079 Spring, Compression (For Check Valve)
35422 35422-22010 Stopper, Valve Vibrating
35437 35437-12020 Plate, Valve Body Cover
35437 35437-12030 Plate, Valve Body Cover
35438 35438-22020 Seat (For Direct Clutch Modulator Valve Plug)
35441 35441-12010 Strainer, Solenoid Oil
35442 35442-32010 Strainer, Throttle Modulator Oil
35445 35445-12010 Valve, 2Nd Coast Modulator
35445 90339-04002 Plug(For Low-High Shift Valve)
35445 90501-09062 Spring, Compression (For Lock Up Signal Valve)
35445 90501-10081 Spring, Compression (For Low Modulator Valve)
35449 35449-32010 Valve, Pressure Relief
35449 90501-09032 Spring, Compression (For Valve Pressure Relief)
35450 90360-06023 Ball (For Rear Upper Valve Body)
35451 35451-32010 Sleeve, Throttle Valve
35451 90250-03045 Pin, Straight (For Line Pressure Contorol Solenoid)
35456 35456-12010 Valve, 2-3 Shift
35456 90501-09053 Spring, Compression (For 2-3 Shift Valve)
35456 90339-03004 Plug (For Lock Up Control Valve)
35457 35457-12010 Valve, Throttle Modulator
35457 90339-05006 Plug (For Pressure Regulator Valve No.2)
35457 90501-09040 Spring, Compression (For Throttle Modulator Valve)
35458 35458-32020 Valve, Cut Back
35458 90282-03010 Key, Straight (For Lock Up Signal Valve)
35461 35408-32010 Plug, Down Shift
35461 90501-10131 Spring, Compression (For Down Shift Plug)
35462 35462-12030 Valve, Throttle
35462 90501-07027 Spring, Compression (For Throttle Valve)
35462 90523-06023 Ring, E (For Throttle Valve)
35464 35464-12030 Valve, 1-2 Shift
35465 35465-17010 Sleeve, Primary Regulator Valve Plunger
35468 35468-12020 Valve, Secondary Regulator
35468 90501-14105 Spring, Compression (For Secondary Regulator Valve)
35468 90282-03001 Key, Straight (For Lock Up Signal Valve)
35472 35472-12010 Cover, Lower Valve Body
35477 35477-12010 Gasket, Valve Body Cover
35491 35491-20010 Valve, Accumulator Control, No.1
35491 90501-09110 Spring, Compression (For Accumulator Control Valve No.1)
35491 90282-03003 Key, Straight (For Lock Up Signal Valve)
35491 90339-04042 Plug (For Accumulator Control Valve No.1)
35497 35497-12010 Valve, 3-4 Shift
35521 35521-20040 Cam, Throttle Valve
35521 90508-11003 Spring (For Throttle Valve Cam Return)
35521 90201-06472 Washer (For Throttle Valve Cam Set)
35521 90105-06018 Bolt (For Throttle Valve Cam Set)
35522 35522-22010 Pin, Throttle Valve Cam
35554 35554-12011 Rod, Manual Valve Connecting
35554 96160-00400 Ring, E(For Release Arm)
9010505003 90105-05003 Bolt (For Pressure Regulator Valve No.2)
9010505003 90119-05035 Bolt (For Pressure Regulator Valve No.2)
9010505007 90105-05007 New Genuine Part
9010505009 90105-05009 New Genuine Part
9010505010 90105-05010 New Genuine Part
9010505014 90105-05014 Bolt (For Pressure Regulator Valve No.2)
9010506014 90105-06014 New Genuine Part
9010506017 90105-06017 Bolt(for Cylinder Head Cover)
9010506017 91551-A0625 Bolt(For Cylinder Head Cover)
9010506020 90105-06020 New Genuine Part
9010506020 91511-C0630 New Genuine Part
9010506026 90105-06026 Bolt (For Transaxle Case Upper Cover)
9010506026 91511-H0620 Bolt (For Transaxle Case Upper Cover)
9010506049 90105-06049 Bolt(For Transmission Case No.2 Plate)
9010506053 90105-06053 Bolt(For Sensor Rotor Adapter)
