ST191

Toyota CALDINA · 1992 · 6,042 parts · 278 categories
ST191 ×

← Back to categories

6,042 items

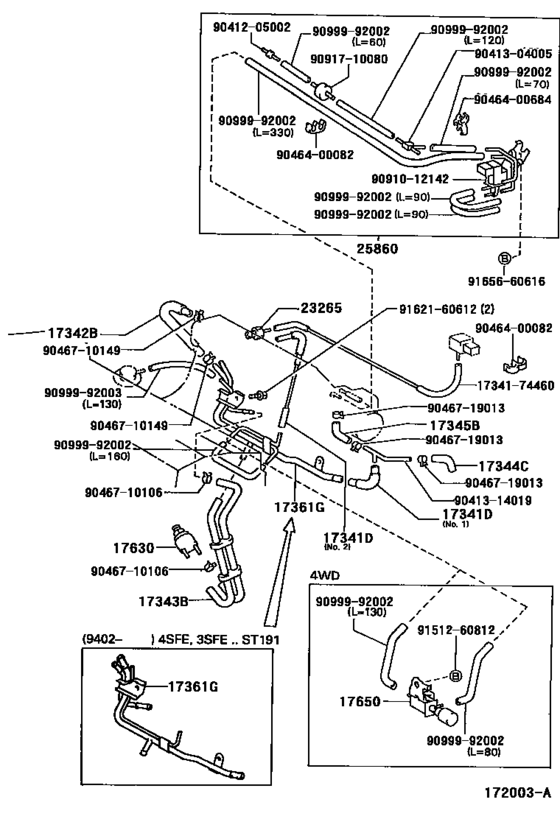

Vacuum Piping ([11.1992 - 01.1996] (9211-9601)3SFE,4SFE) 39
#OEMPart name
17341 17341-74340 Hose, No.1(For Idle-Up)
17341 17341-74380 Hose, No.1(For Idle-Up)
17341 17341-74430 Hose, No.1(For Idle-Up)
17341 17341-74650 Hose, No.1(For Idle-Up)
17342 17343-74141 Hose, No.2(For Idle-Up)
17342 17343-74160 Hose, No.2(For Idle-Up)
17343 17343-74100 Hose, No.2(For Idle-Up)
17344 17344-74050 Hose, No.4(For Idle-Up)
17345 17345-74060 Hose, No.5(For Idle-Up)
17361 17361-74110 Tube, Air(For Idle-Up)
17361 17361-74150 Tube, Air(For Idle-Up)
17361 17361-74180 Tube, Air(For Idle-Up)
17630 17630-70020 Valve Assy, Air Control
17630 17630-16040 Valve Assy, Air Control
23265 90917-11022 Filter, Gas, No.1
23265 90917-11023 Filter, Gas, No.1
23265 90917-11037 Filter, Gas, No.1
25860 25860-16200 Valve Assy, Vacuum Switching
25860 25860-74100 Valve Assy, Vacuum Switching, No.1
1734174460 17341-74460 Hose, No.1(for Air Injection System)
9041205002 90412-05002 Way, 2(For Fuel Expansion Tank)
9041304005 90413-04005 Way, 3, No.1 (For Front Drive Shift)
9041314019 90413-14019 New Genuine Part
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400684 90464-00684 New Genuine Part
9046710106 90467-10106 Clip, No.1(For Idle-Up Hose)
9046710106 96132-51000 Clip Or Clamp(For Ventilation Hose)
9046710149 90467-10149 Clip, No.2(For Idle-Up Hose)
9046719013 90467-19013 Clamp Or Clip(For Water By-Pass Hose No.4)
9091012142 90910-12142 Valve, Vacuum Switching, No.1
9091710080 90917-10080 Filter, Gas, No.1
9099992002 90999-92002 Air Hose (300 mm)
9099992003 90999-92003 Hose, Breather (For Transfer Case)
9151260812 91512-60812 BOLT FLANGE
9151260812 91511-B0812 BOLT FLANGE
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9165660616 91656-60616 BOLT
9165660616 91651-60616 BOLT
