Search › Model › ST191

ST191

Toyota CALDINA · 1992 · 6,042 parts · 278 categories

6,042 items

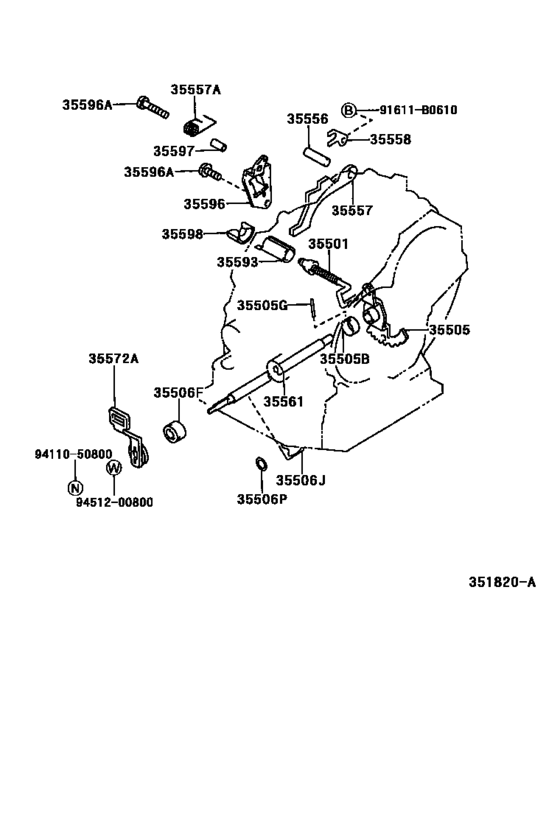

Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC) 24

#	OEM	Part name
35501	35501-12010	Rod Sub-Assy, Parking Lock
35505	35505-12040	Lever Sub-Assy, Manual Valve
35505	90560-20006	Spacer (For Manual Valve Lever)
35505	90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506	90311-12002	Oil Seal, Type T
35506	90524-11001	Spring, Retainer (For Manual Valve Lever Shaft)
35506	90201-12028	Washer, Plate (For Manual Valve Lever Shaft)
35556	35556-12020	Shaft, Parking Lock Pawl
35557	35557-12020	Pawl, Parking Lock
35557	90508-21003	Spring, Torsion (For Parking Lock Pawl)
35558	35558-12010	Clamp, Pawl Shaft
35561	35561-12020	Shaft Sub-Assy, Manual Valve Lever
35572	35572-20190	Lever, Transmission Control Shaft
35572	35572-20210	Lever, Transmission Control Shaft
35593	35593-12010	Sleeve, Cam Guide
35596	35596-12010	Plate, Pawl Stopper
35596	90105-08068	Bolt (For Transaxle Rear Cover Setting)
35596	91551-C0835	Bolt (For Rear Differential Carrier)
35596	90105-08070	Bolt (For Pawl Stopper Plate)
35597	35597-12010	Sleeve, Spring Guide
35598	35598-12010	Sleeve, Parking Lock
91611	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
35501-12010	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35505-12040	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35556-12020	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35557-12020	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35558-12010	Clamp, Pawl Shaft	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35561-12020	Shaft Sub-Assy, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35572-20190	Lever, Transmission Control Shaft	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35572-20210	Lever, Transmission Control Shaft	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35593-12010	Sleeve, Cam Guide	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35596-12010	Plate, Pawl Stopper	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35597-12010	Sleeve, Spring Guide	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
35598-12010	Sleeve, Parking Lock	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90105-08068	Bolt (For Transaxle Rear Cover Setting)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90105-08070	Bolt (For Pawl Stopper Plate)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90201-12028	Washer, Plate (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90311-12002	Oil Seal, Type T	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90508-21003	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90524-11001	Spring, Retainer (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
90560-20006	Spacer (For Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
91551-C0835	Bolt (For Rear Differential Carrier)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
94110-50800	Nut(For Repair Actuator Set)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Throttle Link & Valve Lever (Atm) ([01.1996 - ] A241E,A241L,A245E (9211-9601)CT190,196,ST190,191..4FC ; (9601- )AT191,CT190,196,197,ST191..4FC)
