ST191

Toyota CALDINA · 1992 · 6,042 parts · 278 categories

← Back to categories

6,042 items

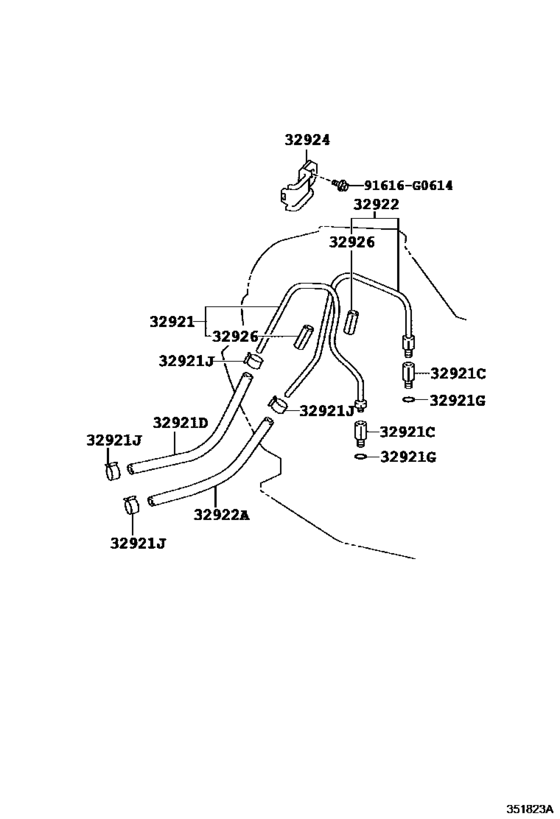

Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191) 19

#	OEM	Part name
32921	32921-20310	Tube, Oil Cooler Inlet, No.1
32921	32921-20390	Tube, Oil Cooler Inlet, No.1
32921	90404-14007	Union(For Oil Cooler Tube)
32921	90404-16031	Union(For Transaxle Housing)
32921	90445-15052	Hose(For Oil Cooler Inlet)
32921	90445-17106	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90467-13039	Clamp, Hose
32921	96135-51300	Clamp, Hose
32922	32922-20360	Tube, Oil Cooler Outlet, No.1
32922	32922-20410	Tube, Oil Cooler Outlet, No.1
32922	90445-15048	Hose(For Oil Cooler Inlet)
32924	32924-20080	Clamp, Oil Cooler Tube, No.2
32924	32924-48010	Clamp, Oil Cooler Tube, No.2
32924	32924-20100	Clamp, Oil Cooler Tube, No.2
32926	32926-20010	Cushion, Oil Cooler Tube(Atm)
32926	32926-22010	Cushion, Oil Cooler Tube(Atm)
91616	91616-G0614	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
91616	91611-G0612	Bolt

OEM	Part name	Category
32921-20310	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32921-20390	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32922-20360	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32922-20410	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32924-20080	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32924-20100	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32924-48010	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32926-20010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
32926-22010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
90404-14007	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
90404-16031	Union(For Transaxle Housing)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
90445-15048	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
90445-15052	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
90445-17106	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
90467-13039	Clamp, Hose	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
91616-G0614	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([01.1996 - ] A241E (9601- )ST191)
