ST191

Toyota CALDINA · 1992 · 6,042 parts · 278 categories

6,042 items

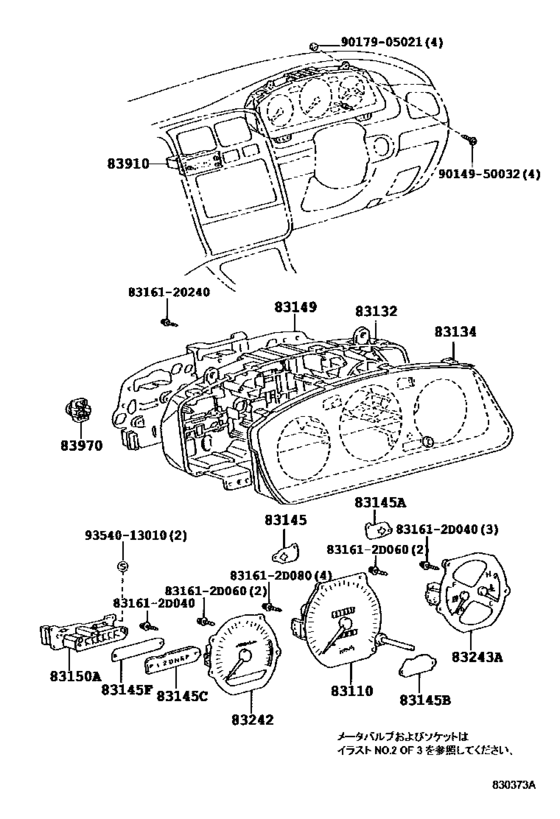

Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601)) 50

#	OEM	Part name
83110	83110-2D310	Speedometer Assy
83110	83110-2D590	Speedometer Assy
83110	83220-20030	Speedometer Assy
83132	83132-20600	Case, Combination Meter
83132	83132-20640	Case, Combination Meter
83132	83132-2D060	Case, Combination Meter
83132	83841-20130	Case, Combination Meter
83134	83134-20160	Cover, Combination Meter, No.1
83134	83134-20220	Cover, Combination Meter, No.1
83134	83134-20260	Cover, Combination Meter, No.1
83134	83821-20140	Cover, Combination Meter, No.1
83145	83145-2D640	Lens, Meter, No.1
83145	83146-20520	Lens, Meter, No.1
83145	83831-20130	Lens, Meter, No.1
83145	83145-2D620	Lens, Meter, No.2
83145	83145-2D720	Lens, Meter, No.1
83145	83146-20500	Lens, Meter, No.2
83145	83832-20130	Lens, Meter, No.2
83145	83831-20610	Lens, Meter, No.2
83145	83145-2D660	Lens, Meter, No.3
83145	83146-20580	Lens, Meter, No.3
83145	83831-20140	Lens, Meter, No.3
83145	83134-2D040	Lens, Meter, No.4
83145	83832-20140	Lens, Meter, No.4
83145	83145-2D680	Lens, Meter, No.7
83149	83149-20280	Plate, Meter Circuit
83149	83861-20140	Plate, Meter Circuit
83150	83150-20010	Indicator Assy
83150	83151-2D020	Indicator Assy
83242	83242-20520	Tachometer Assy, Engine
83242	83242-20540	Tachometer Assy, Engine
83242	83242-20760	Tachometer Assy, Engine
83242	83242-2D180	Tachometer Assy, Engine
83242	83242-2D200	Tachometer Assy, Engine
83242	83881-20150	Tachometer Assy, Engine
83243	83243-20660	Gauge Sub-Assy, Fuel Receiver
83243	83243-20820	Gauge Sub-Assy, Fuel Receiver
83243	83243-2D040	Gauge Sub-Assy, Fuel Receiver
83243	83882-20130	Gauge Sub-Assy, Fuel Receiver
83910	83910-20640	Clock Assy
83910	83910-20720	Clock Assy
83970	83970-12020	Buzzer Assy, Reverse Warning
83970	83970-20010	Buzzer Assy, Reverse Warning
831612	83161-2D040	Case, Combination Meter Mirror, No.1
831612	83161-2D060	Case, Combination Meter Mirror, No.1
831612	83161-2D080	Case, Combination Meter Mirror, No.1
8316120240	83161-20240	Case, Combination Meter Mirror, No.1
9014950032	90149-50032	Screw
9017905021	90179-05021	NUT
9354013010	93540-13010	SCREW

OEM	Part name	Category
83110-2D310	Speedometer Assy	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83110-2D590	Speedometer Assy	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83132-20600	Case, Combination Meter	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83132-20640	Case, Combination Meter	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83132-2D060	Case, Combination Meter	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83134-20160	Cover, Combination Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83134-20220	Cover, Combination Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83134-20260	Cover, Combination Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83134-2D040	Lens, Meter, No.4	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83145-2D620	Lens, Meter, No.2	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83145-2D640	Lens, Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83145-2D660	Lens, Meter, No.3	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83145-2D680	Lens, Meter, No.7	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83145-2D720	Lens, Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83146-20500	Lens, Meter, No.2	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83146-20520	Lens, Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83146-20580	Lens, Meter, No.3	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83149-20280	Plate, Meter Circuit	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83150-20010	Indicator Assy	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83151-2D020	Indicator Assy	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83161-20240	Case, Combination Meter Mirror, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83161-2D040	Case, Combination Meter Mirror, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83161-2D060	Case, Combination Meter Mirror, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83161-2D080	Case, Combination Meter Mirror, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83220-20030	Speedometer Assy	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83242-20520	Tachometer Assy, Engine	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83242-20540	Tachometer Assy, Engine	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83242-20760	Tachometer Assy, Engine	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83242-2D180	Tachometer Assy, Engine	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83242-2D200	Tachometer Assy, Engine	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83243-20660	Gauge Sub-Assy, Fuel Receiver	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83243-20820	Gauge Sub-Assy, Fuel Receiver	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83243-2D040	Gauge Sub-Assy, Fuel Receiver	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83821-20140	Cover, Combination Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83831-20130	Lens, Meter, No.1	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83831-20140	Lens, Meter, No.3	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83831-20610	Lens, Meter, No.2	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83832-20130	Lens, Meter, No.2	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83832-20140	Lens, Meter, No.4	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83841-20130	Case, Combination Meter	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83861-20140	Plate, Meter Circuit	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83881-20150	Tachometer Assy, Engine	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83882-20130	Gauge Sub-Assy, Fuel Receiver	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83910-20640	Clock Assy	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83910-20720	Clock Assy	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83970-12020	Buzzer Assy, Reverse Warning	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
83970-20010	Buzzer Assy, Reverse Warning	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
90149-50032	Screw	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
90179-05021	NUT	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
93540-13010	SCREW	Meter ([02.1994 - 01.1996] ｱﾅﾛｸﾞﾒ-ﾀ, ｱﾘ(ﾀｺﾒ-ﾀ) (9402-9601))
