Search › Model › ST191

ST191

Toyota CALDINA · 1992 · 6,042 parts · 278 categories

6,042 items

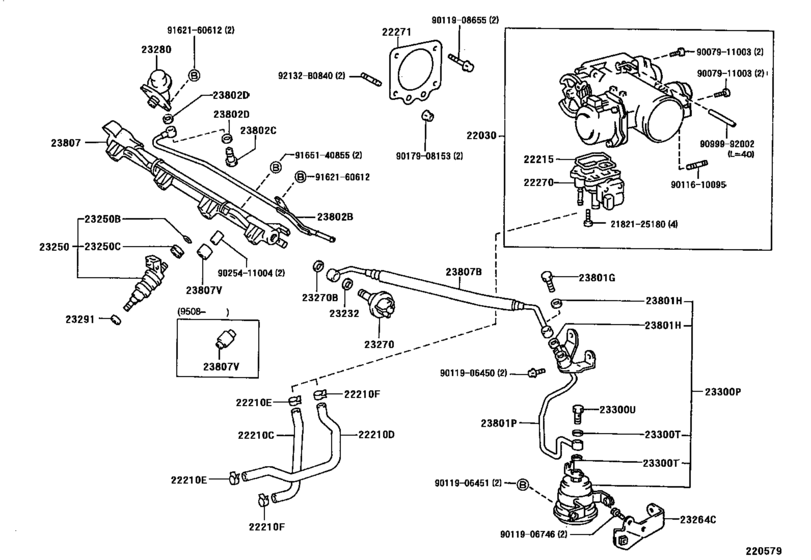

Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE) 64

#	OEM	Part name
22030	22030-74020	Body Assy, Throttle W/motor
22210	16283-74010	Hose, Water By-Pass, No.1
22210	16283-74050	Hose, Water By-Pass, No.1
22210	16282-74050	Hose, Water By-Pass, No.1
22210	16282-74080	Hose, Water By-Pass, No.1
22210	16282-74100	Hose, Water By-Pass, No.1
22210	90467-13050	Clamp Or Clip, Hose(For Water By-Pass Hose)
22210	96135-51300	Clamp, Hose
22215	22215-74380	Gasket, Throttle Body Cover
22215	22215-74400	Gasket, Throttle Body Cover
22270	22270-74040	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-74250	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-74160	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-74260	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-74270	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-74350	Valve Assy, Idle Speed Control(For Thlottle Body)
22271	22271-74021	Gasket, Throttle Body
22271	22271-74022	Gasket, Throttle Body
22271	22271-74070	Gasket, Throttle Body
23232	23232-41081	Gasket(For Fuel Pump Hose)
23232	23279-74010	Gasket(For Fuel Pump Hose)
23250	23209-74040	Injector Assy, Fuel
23250	23209-74170	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23264	23264-74060	Bracket, Fuel Filter
23270	23207-46010	Damper Assy, Fuel Pressure Pulsation
23270	23207-74010	Damper Assy, Fuel Pressure Pulsation
23280	23280-74100	Regulator Assy, Fuel Pressure
23280	23280-74151	Regulator Assy, Fuel Pressure
23291	23291-41010	Insulator, Injector Vibration
23300	23300-19465	Filter, Fuel(For Efi)
23300	23300-79335	Filter, Fuel(For Efi)
23300	90430-12026	Gasket
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)
23801	23801-74070	Pipe Sub-Assy, Fuel, No.1
23802	23802-74070	Pipe Sub-Assy, Fuel, No.2
23802	90401-08004	Bolt Union(For Oil Jet)
23802	90430-08014	Gasket(For Oil Filter Outlet Pipe)
23807	23814-74070	Pipe Sub-Assy, Fuel Delivery
23807	23814-74071	Pipe Sub-Assy, Fuel Delivery
23807	23814-74100	Pipe Sub-Assy, Fuel Delivery
23807	23814-74110	Pipe Sub-Assy, Fuel Delivery
23807	23271-74380	Hose, Fuel Delivery Pipe
23807	23271-74570	Hose, Fuel Delivery Pipe
23807	90560-11020	Spacer, No.1(For Delivery Pipe)
23807	90561-08053	Spacer, No.1(For Delivery Pipe)
92132	92132-B0840	New Genuine Part
2182125180	21821-25180	Screw, Set, No.2(For Carburetor Body Set)
9007911003	90079-11003	New Genuine Part
9011610095	90116-10095	Bolt, Stud(For Manifold To Cylinder Head)
9011906450	90119-06450	New Genuine Part
9011906450	90119-06442	BOLT WWASHER
9011906451	90119-06451	BOLT WWASHER
9011906746	90119-06746	New Genuine Part
9011906746	91631-J0612	BRACKET
9011908655	90119-08655	New Genuine Part
9017908153	90179-08153	NUT
9025411004	90254-11004	New Genuine Part
9099992002	90999-92002	Air Hose (300 mm)
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9165140855	91651-40855	New Genuine Part

OEM	Part name	Category
16282-74050	Hose, Water By-Pass, No.1	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
16282-74080	Hose, Water By-Pass, No.1	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
16282-74100	Hose, Water By-Pass, No.1	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
16283-74010	Hose, Water By-Pass, No.1	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
16283-74050	Hose, Water By-Pass, No.1	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
21821-25180	Screw, Set, No.2(For Carburetor Body Set)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22030-74020	Body Assy, Throttle W/motor	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22215-74380	Gasket, Throttle Body Cover	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22215-74400	Gasket, Throttle Body Cover	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22270-74040	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22270-74160	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22270-74250	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22270-74260	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22270-74270	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22270-74350	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22271-74021	Gasket, Throttle Body	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22271-74022	Gasket, Throttle Body	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
22271-74070	Gasket, Throttle Body	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23207-46010	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23207-74010	Damper Assy, Fuel Pressure Pulsation	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23209-74040	Injector Assy, Fuel	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23209-74170	Injector Assy, Fuel	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23232-41081	Gasket(For Fuel Pump Hose)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23264-74060	Bracket, Fuel Filter	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23271-74380	Hose, Fuel Delivery Pipe	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23271-74570	Hose, Fuel Delivery Pipe	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23279-74010	Gasket(For Fuel Pump Hose)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23280-74100	Regulator Assy, Fuel Pressure	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23280-74151	Regulator Assy, Fuel Pressure	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23300-19465	Filter, Fuel(For Efi)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23300-79335	Filter, Fuel(For Efi)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23801-74070	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23802-74070	Pipe Sub-Assy, Fuel, No.2	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23814-74070	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23814-74071	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23814-74100	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
23814-74110	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90079-11003	New Genuine Part	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90116-10095	Bolt, Stud(For Manifold To Cylinder Head)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90119-06442	BOLT WWASHER	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90119-06450	New Genuine Part	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90119-06451	BOLT WWASHER	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90119-06746	New Genuine Part	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90119-08655	New Genuine Part	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90179-08153	NUT	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90254-11004	New Genuine Part	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90401-08004	Bolt Union(For Oil Jet)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90430-08014	Gasket(For Oil Filter Outlet Pipe)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90430-12026	Gasket	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90467-13050	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90560-11020	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90561-08053	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
90999-92002	Air Hose (300 mm)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
91621-60612	BOLTWWASHER	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
91621-J0612	BOLT W-WASHER	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
91631-J0612	BRACKET	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
91651-40855	New Genuine Part	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
92132-B0840	New Genuine Part	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
96135-51300	Clamp, Hose	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)
96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([11.1992 - 01.1996] ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ) (9211-9601)3SFE)

Source: Public OEM parts-catalog data
Variants: 1 / 2
Category: 278
Collected: 2026-08-02
