Search › Model › ST185

ST185

Toyota CELICA · 1989 · 5,063 parts · 317 categories
ST185 ×

← Back to categories

5,063 items

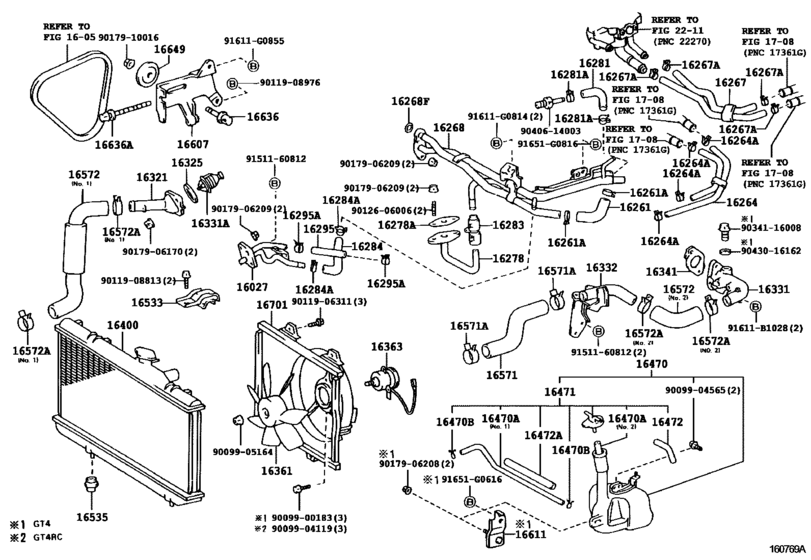

Radiator & Water Outlet ([08.1991 - ] (9108- )3SGTE) 96
#OEMPart name
16027 16027-88383 Pipe Sub-Assy, Turbo Water, No.1
16261 16261-88361 Hose, Water By-Pass
16261 90467-22003 Clip(For Ventilation Hose No.2)
16261 90467-21010 Clip(For Ventilation Hose No.2)
16264 16264-88382 Hose, Water By-Pass, No.2
16264 90467-13051 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 96135-51300 Clamp, Hose
16264 90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)
16264 16264-88383 Hose, Water By-Pass, No.2
16267 16267-88382 Hose, Water By-Pass, No.3
16268 16268-88383 Pipe, Water By-Pass, No.1
16268 96761-24017 Ring, O(For Water By-Pass Pipe)
16278 16278-88381 Pipe, Water By-Pass, No.2
16278 16258-88383 Gasket(For Heater Return)
16281 16281-88380 Hose, Water By-Pass, No.4
16281 90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)
16282 16282-88380 Hose, Oil Cooler
16282 90467-17005 Clamp Or Clip, Hose(For Oil Cooler Hose)
16282 90467-17013 Clamp Or Clip(For Water By-Pass Hose No.4)
16283 16283-88381 Hose, Water By-Pass, No.6
16284 16284-88381 Hose, Turbo Water, No.1
16284 90467-15016 Clip Or Clamp(For Ventilation Hose)
16284 96135-41400 Clip(For Water By-Pass Hose No.1)
16295 16295-88381 Hose, Water By-Pass, No.7
16321 16321-88381 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16331 16304-88382 Outlet, Water
16331 90916-03075 Thermostat
16331 16304-88387 Outlet, Water
16332 16306-88380 Pipe, Water Outlet, No.1
16341 16341-88381 Gasket, Water Outlet
16361 16361-63020 Fan
16361 16361-74070 Fan
16361 16361-55010 Fan
16363 16363-74030 Motor, Cooling Fan
16363 16363-74070 Motor, Cooling Fan
16400 16400-74560 Radiator Assy
16470 16470-74130 Tank Assy, Radiator Reserve
16470 85338-74130 Hose Or Pipe(For Radiator Reserve Tank)
16470 90445-12006 Hose Or Pipe(For Radiator Reserve Tank)
16470 95333-06040 Hose
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16470-74190 Tank Assy, Radiator Reserve
16471 16405-74110 Cap Sub-Assy, Reserve Tank
16471 16405-74180 Cap Sub-Assy, Reserve Tank
16472 85338-74040 Hose(For Radiator Drain Cock)
16472 16478-46020 Hose, No.3(For Radiator Reserve Tank)
16533 16533-74130 Support, Radiator, Upper
16535 16535-74101 Support, Radiator, Lower
16571 16571-74130 Hose, Radiator, Inlet
16571 90467-33003 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-74110 Hose, Radiator, Outlet
16572 16572-88381 Hose, Radiator, Outlet
16572 90467-33002 Clamp Or Clip, Hose(For Radiator Inlet)
16572 90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16572 90467-34003 Clip(For Oil Return Hose)
16603 16603-88360 Pulley Sub-Assy, Idler, No.1
16607 16631-74030 Bracket Sub-Assy, Idler Pulley, No.1
16611 16611-74070 Bracket, Radiator Reserve Tank
16636 16636-74020 Shaft, Idler Pully, No.1
16636 90109-08191 Bolt(For Idler Pully Tension)
16639 16639-88361 Spacer, Idler Pulley
16649 16649-88360 Plate, Idler Pulley Cover
16701 16711-74240 Shroud Sub-Assy, Fan
16701 16711-74420 Shroud Sub-Assy, Fan
91611 91611-B1028 New Genuine Part
91611 91611-G0814 Bolt(For Oil Receiver Pipe)
91611 91611-60814 Bolt
91611 91611-G0855 Bolt(For Rocker Support Set)
91611 91611-60855 Bolt(For Rocker Support Set)
91651 91651-G0616 BOLT WWASHER
91651 91651-G0816 New Genuine Part
91651 90119-08856 BOLT W-WASHER
9009900183 90099-00183 New Genuine Part
9009904119 90099-04119 BOLT WASHER HEAD
9009904357 90099-04357 New Genuine Part
9009904565 90099-04565 New Genuine Part
9009905164 90099-05164 Nut
9011906311 90119-06311 BOLT
9011908773 90119-08773 New Genuine Part
9011908813 90119-08813 BOLT W-WASHER
9011908976 90119-08976 New Genuine Part
9012606006 90126-06006 New Genuine Part
9017906170 90179-06170 New Genuine Part
9017906208 90179-06208 NUT
9017906209 90179-06209 New Genuine Part
9017906209 94150-80630 New Genuine Part
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9034116008 90341-16008 Plug(For Oil Heater Thermostat Hole)
9040614003 90406-14003 New Genuine Part
9043016162 90430-16162 Gasket(For Chain Tensioner Body)
9056008060 90560-08060 Bracket Sub-Assy, Idler Pulley, No.2
9151160812 91511-60812 BOLT
9151160812 91511-B0812 BOLT FLANGE
