Search › Model › ST185

ST185

Toyota CELICA · 1989 · 5,063 parts · 317 categories

5,063 items

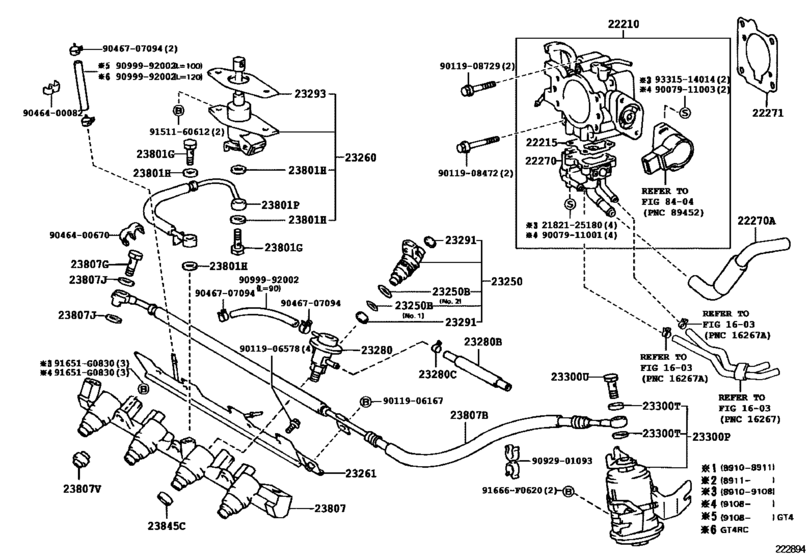

Fuel Injection System ([10.1989 - ] (8910- )3SGTE) 70

#	OEM	Part name
22210	22210-74660	Body Assy, Throttle
22210	22210-74670	Body Assy, Throttle
22215	22215-74380	Gasket, Throttle Body Cover
22270	22270-74080	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	17341-88381	Hose, Air, No.1(For Idle Speed Control Valve)
22271	22271-88381	Gasket, Throttle Body
23091	23091-74110	Tube Sub-Assy, Fuel Pump
23206	23206-74540	Bracket, Fuel Pump
23206	77169-14010	Gasket, Fuel Pump Bracket
23217	23217-16030	Filter, Fuel Pump
23220	23221-74010	Pump Assy, Fuel
23220	23221-50020	Pump Assy, Fuel
23229	23229-16010	Clip(For Fuel Pump Filter)
23229	23219-03010	Clip(For Fuel Pump Filter)
23233	23239-63010	Hose, Fuel Pump
23233	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
23233	96135-51300	Clamp, Hose
23249	23249-74150	Rubber, Cushion(For Fuel Pump)
23250	23209-79015	Injector Assy, Fuel
23250	90301-14006	Ring, O(For Fuel Injector)
23250	90301-17007	Ring, O(For Fuel Injector)
23260	23260-79175	Injector Assy, Cold Start Fuel
23261	23261-88380	Cover, Injector
23280	23280-74070	Regulator Assy, Fuel Pressure
23280	90447-12119	Hose, Fuel Pressure Regulator Return
23280	90467-11065	Clip(For Fuel Hose No.2)
23291	23291-75010	Insulator, Injector Vibration
23293	23293-88381	Gasket, Cold Start Injector
23300	23300-79235	Filter, Fuel(For Efi)
23300	90430-12026	Gasket
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23801	90401-08003	Bolt, Union
23801	90430-08012	Gasket
23801	23801-88381	Pipe Sub-Assy, Fuel, No.1
23807	23814-88382	Pipe Sub-Assy, Fuel Delivery
23807	90923-01365	Hose, Fuel Delivery Pipe
23807	90561-08032	Spacer, No.1(For Delivery Pipe)
23845	23845-88380	Insulator, Fuel Pipe
91651	91651-G0830	New Genuine Part
91651	91651-G0832	New Genuine Part
91666	91666-F0620	New Genuine Part
91666	91661-G0620	New Genuine Part
2182125180	21821-25180	Screw, Set, No.2(For Carburetor Body Set)
9007911001	90079-11001	SCREW
9007911003	90079-11003	New Genuine Part
9011906167	90119-06167	New Genuine Part
9011906578	90119-06578	Bolt(For Transaxle Case Receiver)
9011906578	91611-B0616	Bolt(For Transaxle Case Receiver)
9011908472	90119-08472	Bolt(For Clutch Master Cylinder Setting)
9011908472	90119-08108	Bolt(For Clutch Master Cylinder Setting)
9011908729	90119-08729	Bolt (for Transaxle Housing & Transaxle Case Setting)
9011908729	90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9046400082	90464-00082	Clamp(For Resistive Cord)
9046400670	90464-00670	New Genuine Part
9046707094	90467-07094	Clip, Hose Fuel(For Injection Pump)
9092301093	90923-01093	New Genuine Part
9092901093	90929-01093	New Genuine Part
9098004047	90980-04047	New Genuine Part
9098004061	90980-04061	New Genuine Part
9099992002	90999-92002	Air Hose (300 mm)
9151160612	91511-60612	BOLT
9165140614	91651-40614	Bolt
9331514014	93315-14014	SCREW
9411540400	94115-40400	NUT
9411540400	90076-01001	NUT
9411540500	94115-40500	Nut(For Lpg Filter Stud Bolt Set)
9451100400	94511-00400	WASHERSPRING
9451100500	94511-00500	Washer, Cover Set, No.2

OEM	Part name	Category
17341-88381	Hose, Air, No.1(For Idle Speed Control Valve)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
21821-25180	Screw, Set, No.2(For Carburetor Body Set)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
22210-74660	Body Assy, Throttle	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
22210-74670	Body Assy, Throttle	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
22215-74380	Gasket, Throttle Body Cover	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
22270-74080	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
22271-88381	Gasket, Throttle Body	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23091-74110	Tube Sub-Assy, Fuel Pump	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23206-74540	Bracket, Fuel Pump	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23209-79015	Injector Assy, Fuel	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23217-16030	Filter, Fuel Pump	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23219-03010	Clip(For Fuel Pump Filter)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23221-50020	Pump Assy, Fuel	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23221-74010	Pump Assy, Fuel	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23229-16010	Clip(For Fuel Pump Filter)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23239-63010	Hose, Fuel Pump	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23249-74150	Rubber, Cushion(For Fuel Pump)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23260-79175	Injector Assy, Cold Start Fuel	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23261-88380	Cover, Injector	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23280-74070	Regulator Assy, Fuel Pressure	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23291-75010	Insulator, Injector Vibration	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23293-88381	Gasket, Cold Start Injector	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23300-79235	Filter, Fuel(For Efi)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23801-88381	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23814-88382	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
23845-88380	Insulator, Fuel Pipe	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
77169-14010	Gasket, Fuel Pump Bracket	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90076-01001	NUT	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90079-11001	SCREW	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90079-11003	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90105-08233	Bolt (For Transaxle Housing & Transaxle Case Setting)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90119-06167	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90119-06578	Bolt(For Transaxle Case Receiver)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90119-08108	Bolt(For Clutch Master Cylinder Setting)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90119-08472	Bolt(For Clutch Master Cylinder Setting)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90119-08729	Bolt (for Transaxle Housing & Transaxle Case Setting)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90159-50219	BOLT	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90159-A0057	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90301-14006	Ring, O(For Fuel Injector)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90301-17007	Ring, O(For Fuel Injector)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90401-08003	Bolt, Union	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90430-08012	Gasket	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90430-12026	Gasket	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90447-12119	Hose, Fuel Pressure Regulator Return	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90464-00082	Clamp(For Resistive Cord)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90464-00670	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90467-07094	Clip, Hose Fuel(For Injection Pump)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90467-11065	Clip(For Fuel Hose No.2)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90561-08032	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90923-01093	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90923-01365	Hose, Fuel Delivery Pipe	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90929-01093	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90980-04047	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90980-04061	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
90999-92002	Air Hose (300 mm)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
91511-60612	BOLT	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
91611-B0616	Bolt(For Transaxle Case Receiver)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
91651-40614	Bolt	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
91651-G0830	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
91651-G0832	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
91661-G0620	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
91666-F0620	New Genuine Part	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
93315-14014	SCREW	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
94115-40400	NUT	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
94115-40500	Nut(For Lpg Filter Stud Bolt Set)	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
94511-00400	WASHERSPRING	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
94511-00500	Washer, Cover Set, No.2	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
96135-51300	Clamp, Hose	Fuel Injection System ([10.1989 - ] (8910- )3SGTE)
