ST185

Toyota CELICA · 1989 · 5,063 parts · 317 categories

5,063 items

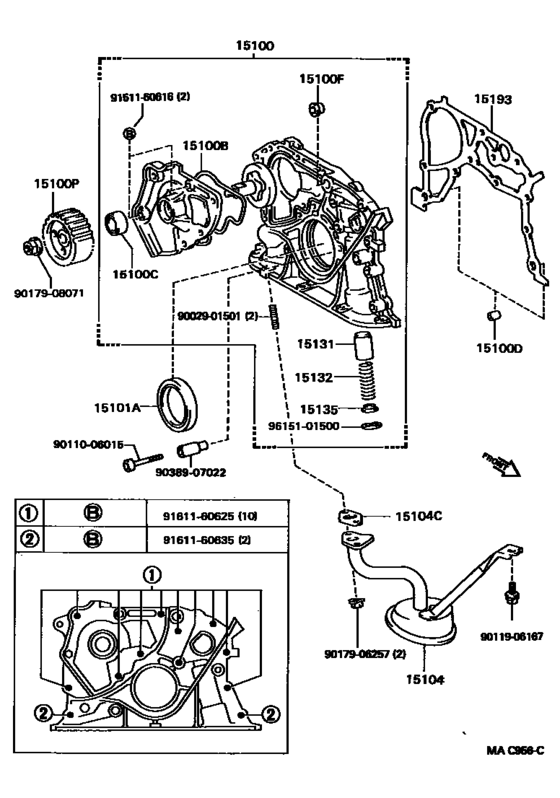

Engine Oil Pump ([10.1989 - ] (8910- )3SG#) 26

#	OEM	Part name
15100	15100-88382	Pump Assy, Oil
15100	15188-88382	Ring, O(For Oil Pump)
15100	15188-74050	Ring, O(For Oil Pump)
15100	15165-88382	Seal(For Oil Pump)
15100	90253-09001	Pin, Ring W/head
15100	90029-38302	Bush (For Oil Pump)
15100	13524-88360	Pulley, Oil Pump Drive Shaft
15101	90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
15104	15104-88380	Strainer Sub-Assy, Oil
15104	23293-88360	Gasket(For Oil Strainer)
15131	15131-63010	Valve, Oil Pump Relief
15132	15132-88380	Spring, Oil Pump Relief Valve
15135	15135-15010	Retainer, Oil Pump Relief Valve
15193	15197-63021	Gasket, Oil Pump
9002901501	90029-01501	Bolt,stud(For Oil Pump)
9011006015	90110-06015	New Genuine Part
9011906167	90119-06167	New Genuine Part
9017906257	90179-06257	NUT
9017908071	90179-08071	New Genuine Part
9038907022	90389-07022	New Genuine Part
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9161160625	91611-60625	Bolt, W/washer (For Parking Cove & Case)
9161160625	91611-B0625	Bolt (For Automatic Transmission Oil Pan)
9161160635	91611-60635	New Genuine Part
9615101500	96151-01500	Ring, Hole Snap (For Pressure Regulator Valve Set)

OEM	Part name	Category
13524-88360	Pulley, Oil Pump Drive Shaft	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15100-88382	Pump Assy, Oil	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15104-88380	Strainer Sub-Assy, Oil	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15131-63010	Valve, Oil Pump Relief	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15132-88380	Spring, Oil Pump Relief Valve	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15135-15010	Retainer, Oil Pump Relief Valve	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15165-88382	Seal(For Oil Pump)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15188-74050	Ring, O(For Oil Pump)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15188-88382	Ring, O(For Oil Pump)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
15197-63021	Gasket, Oil Pump	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
23293-88360	Gasket(For Oil Strainer)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90029-01501	Bolt,stud(For Oil Pump)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90029-38302	Bush (For Oil Pump)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90110-06015	New Genuine Part	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90119-06167	New Genuine Part	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90179-06257	NUT	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90179-08071	New Genuine Part	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90253-09001	Pin, Ring W/head	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
90389-07022	New Genuine Part	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
91511-60616	BOLTFLANGE	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
91511-B0616	BOLT, FLANGE	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
91611-60625	Bolt, W/washer (For Parking Cove & Case)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
91611-60635	New Genuine Part	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
91611-B0625	Bolt (For Automatic Transmission Oil Pan)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
96151-01500	Ring, Hole Snap (For Pressure Regulator Valve Set)	Engine Oil Pump ([10.1989 - ] (8910- )3SG#)
