Search › Model › ST185

ST185

Toyota CELICA · 1989 · 5,063 parts · 317 categories

5,063 items

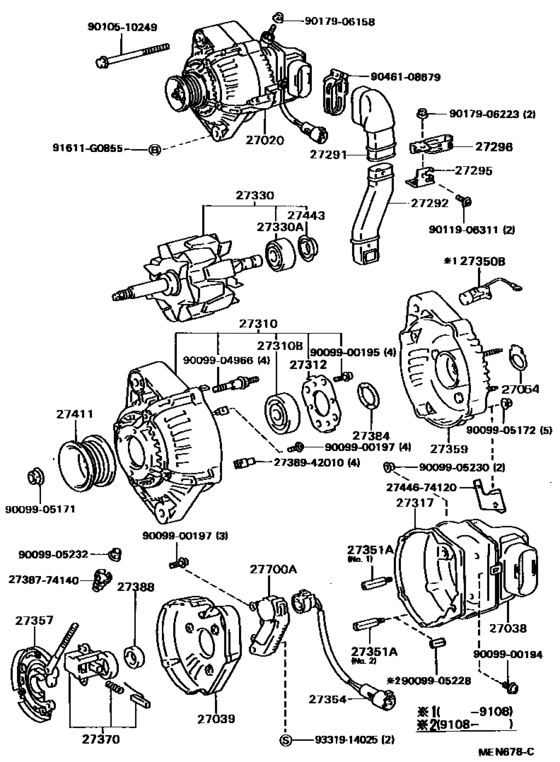

Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE) 51

#	OEM	Part name
27020	27060-74300	Alternator Assy
27038	27038-74120	Duct Sub-Assy, Alternator Air
27039	27039-74140	Cover, Alternator Rear End
27039	27039-74260	Cover, Alternator Rear End
27064	27064-42010	Seal, Alternator Plate
27291	27291-74020	Duct, Alternator, No.1
27292	27292-74020	Duct, Alternator, No.2
27295	27295-74020	Bracket, Alternator Duct
27296	27296-74010	Clamp, Alternator Duct
27310	27310-74120	Frame Assy, Drive End, Alternator
27310	90099-10192	Bearing(For Alternator Drive End Frame)
27312	27312-42010	Plate, Bearing Retainer, Alternator
27317	27317-74270	Packing, Cover, Rear End
27330	27330-76030	Rotor Assy, Alternator
27330	27330-16390	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27351	27351-74120	Collar, Adjusting Alternator
27351	27351-74270	Collar, Adjusting Alternator
27354	27037-74270	Wire Sub-Assy, Alternator Lead
27354	27037-74120	Wire Sub-Assy, Alternator Lead
27357	27357-74120	Holder, Alternator, W/rectifier
27357	27357-74290	Holder, Alternator, W/rectifier
27359	27359-74120	Frame, Alternator Rectifier End
27370	27370-75060	Holder Assy, Alternator Brush
27384	27384-50030	Holder, Alternator Brush, A
27388	27388-42010	Cover, Alternator Brush
27411	27411-74050	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-46030	Regulator Assy, Generator
27700	27700-72090	Regulator Assy, Generator
91611	91611-G0855	Bolt(For Rocker Support Set)
91611	91611-60855	Bolt(For Rocker Support Set)
2738774140	27387-74140	Insulator, Terminal
2738942010	27389-42010	Insulator, Terminal
2744674120	27446-74120	Clip, Alternator Cord
9009900194	90099-00194	New Genuine Part
9009900195	90099-00195	New Genuine Part
9009900197	90099-00197	Screw
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9009905228	90099-05228	New Genuine Part
9009905230	90099-05230	New Genuine Part
9009905232	90099-05232	New Genuine Part
9010510249	90105-10249	Bolt(For Alternator)
9011906311	90119-06311	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017906223	90179-06223	Clip(For Front Bumper), No.1
9017906223	90179-06206	Nut
9046108679	90461-08679	New Genuine Part
9331914025	93319-14025	Screw W Washer

OEM	Part name	Category
27037-74120	Wire Sub-Assy, Alternator Lead	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27037-74270	Wire Sub-Assy, Alternator Lead	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27038-74120	Duct Sub-Assy, Alternator Air	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27039-74140	Cover, Alternator Rear End	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27039-74260	Cover, Alternator Rear End	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27060-74300	Alternator Assy	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27064-42010	Seal, Alternator Plate	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27291-74020	Duct, Alternator, No.1	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27292-74020	Duct, Alternator, No.2	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27295-74020	Bracket, Alternator Duct	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27296-74010	Clamp, Alternator Duct	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27310-74120	Frame Assy, Drive End, Alternator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27312-42010	Plate, Bearing Retainer, Alternator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27317-74270	Packing, Cover, Rear End	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27330-16390	Rotor Assy, Alternator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27330-76030	Rotor Assy, Alternator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27351-74120	Collar, Adjusting Alternator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27351-74270	Collar, Adjusting Alternator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27357-74120	Holder, Alternator, W/rectifier	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27357-74290	Holder, Alternator, W/rectifier	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27359-74120	Frame, Alternator Rectifier End	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27370-75060	Holder Assy, Alternator Brush	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27384-50030	Holder, Alternator Brush, A	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27387-74140	Insulator, Terminal	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27388-42010	Cover, Alternator Brush	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27389-42010	Insulator, Terminal	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27411-74050	Pulley, Alternator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27443-63020	Cover, Alternator Bearing	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27446-74120	Clip, Alternator Cord	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27700-46030	Regulator Assy, Generator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
27700-72090	Regulator Assy, Generator	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-00194	New Genuine Part	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-00195	New Genuine Part	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-00197	Screw	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-05171	Nut(For Alternator Pulley)	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-05172	New Genuine Part	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-05228	New Genuine Part	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-05230	New Genuine Part	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-05232	New Genuine Part	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90099-10192	Bearing(For Alternator Drive End Frame)	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90105-10249	Bolt(For Alternator)	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90119-06311	BOLT	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90179-06206	Nut	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90179-06223	Clip(For Front Bumper), No.1	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
90461-08679	New Genuine Part	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
91611-60855	Bolt(For Rocker Support Set)	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
91611-G0855	Bolt(For Rocker Support Set)	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
93319-14025	Screw W Washer	Alternator ([10.1989 - ] 12V 70A,80A (8910- )3SGTE)
