ST184

Toyota CELICA · 1989 · 5,230 parts · 207 categories
ST184 ×

← Back to categories

5,230 items

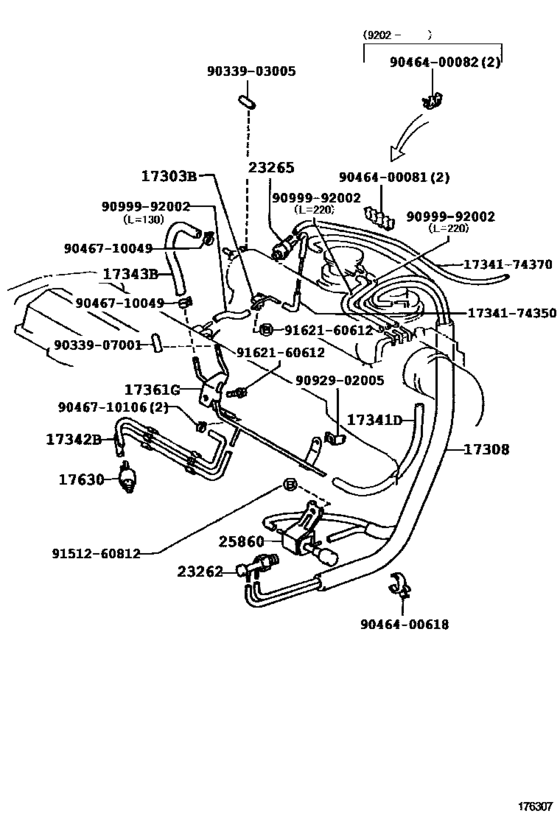

Vacuum Piping ([08.1991 - ] (9108- )5SFE) 34
#OEMPart name
17303 17303-74040 Pipe Sub-Assy, Air, No.1
17308 17308-74100 Hose Sub-Assy, Vacuum(For Idle-Up)
17308 17308-74130 Hose Sub-Assy, Vacuum(For Idle-Up)
17308 17308-74131 Hose Sub-Assy, Vacuum(For Idle-Up)
17341 17341-74040 Hose, No.1(For Idle-Up)
17341 17341-74340 Hose, No.1(For Idle-Up)
17342 17343-74011 Hose, No.2(For Idle-Up)
17342 17343-74100 Hose, No.2(For Idle-Up)
17343 17343-74040 Hose, No.2(For Idle-Up)
17361 17361-74030 Tube, Air(For Idle-Up)
17361 17361-74100 Tube, Air(For Idle-Up)
17630 17630-70020 Valve Assy, Air Control
17630 17630-16040 Valve Assy, Air Control
23262 90925-05068 Valve, Bimetal Vacuum Switching, No.1
23265 90917-11023 Filter, Gas, No.1
23265 90917-11032 Filter, Gas, No.1
25860 25860-74050 Valve Assy, Vacuum Switching, No.1
1734174350 17341-74350 Hose, Air
1734174370 17341-74370 Hose, No.1(for Air Injection System)
9033903005 90339-03005 Plug, No.1
9033907001 90339-07001 Plug, Heater Water
9046400081 90464-00081 Clamp (For Idle Up Divice), No.1
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400618 90464-00618 Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
9046710049 90467-10049 Clamp Or Clip(For Fuel Hose Set)
9046710049 90467-10149 Clip, No.2(For Idle-Up Hose)
9046710106 90467-10106 Clip, No.1(For Idle-Up Hose)
9046710106 96132-51000 Clip Or Clamp(For Ventilation Hose)
9092902005 90929-02005 New Genuine Part
9099992002 90999-92002 Air Hose (300 mm)
9151260812 91512-60812 BOLT FLANGE
9151260812 91511-B0812 BOLT FLANGE
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
