Search › Model › ST184

ST184

Toyota CELICA · 1989 · 5,230 parts · 207 categories

5,230 items

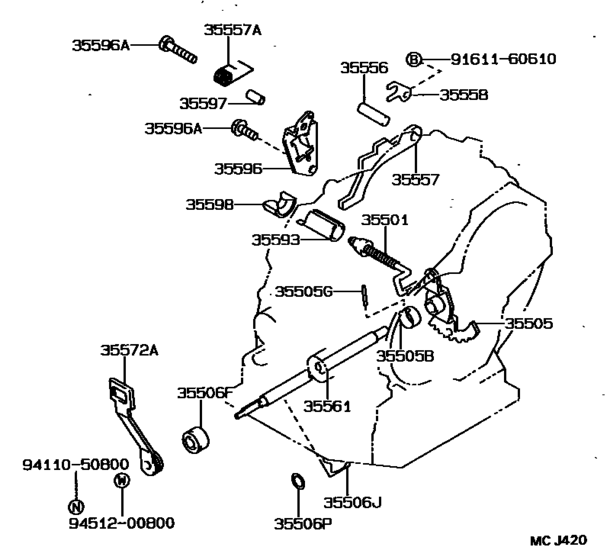

Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM) 39

#	OEM	Part name
35501	35501-12010	Rod Sub-Assy, Parking Lock
35505	35505-20040	Lever Sub-Assy, Manual Valve
35505	90560-20006	Spacer (For Manual Valve Lever)
35505	90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506	90311-12002	Oil Seal, Type T
35506	90524-11001	Spring, Retainer (For Manual Valve Lever Shaft)
35506	90201-12028	Washer, Plate (For Manual Valve Lever Shaft)
35520	35520-20310	Cable Assy, Throttle
35520	35520-20370	Cable Assy, Throttle
35523	35523-12080	Clamp, Throttle Cable
35523	35523-20300	Clamp, Throttle Cable, No.3
35523	90464-00617	Clamp(For Resistive Cord)
35523	35523-20340	Clamp, Throttle Cable, No.4
35524	35523-20190	Clamp, Throttle Cable, No.2
35524	35523-20270	Clamp, Throttle Cable, No.2
35556	35556-12020	Shaft, Parking Lock Pawl
35557	35557-12020	Pawl, Parking Lock
35557	90508-21003	Spring, Torsion (For Parking Lock Pawl)
35558	35558-12010	Clamp, Pawl Shaft
35561	35561-12020	Shaft Sub-Assy, Manual Valve Lever
35572	35572-20170	Lever, Transmission Control Shaft
35593	35593-12010	Sleeve, Cam Guide
35596	35596-12010	Plate, Pawl Stopper
35596	90105-08068	Bolt (For Transaxle Rear Cover Setting)
35596	91551-C0835	Bolt (For Rear Differential Carrier)
35596	90105-08070	Bolt (For Pawl Stopper Plate)
35597	35597-12010	Sleeve, Spring Guide
35598	35598-12010	Sleeve, Parking Lock
9010508158	90105-08158	Plug(For Fuel Sub-Tank)
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160814	91611-60814	Bolt
9165140816	91651-40816	BOLT
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
35501-12010	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35505-20040	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35520-20310	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35520-20370	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35523-12080	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35523-20190	Clamp, Throttle Cable, No.2	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35523-20270	Clamp, Throttle Cable, No.2	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35523-20300	Clamp, Throttle Cable, No.3	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35523-20340	Clamp, Throttle Cable, No.4	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35556-12020	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35557-12020	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35558-12010	Clamp, Pawl Shaft	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35561-12020	Shaft Sub-Assy, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35572-20170	Lever, Transmission Control Shaft	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35593-12010	Sleeve, Cam Guide	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35596-12010	Plate, Pawl Stopper	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35597-12010	Sleeve, Spring Guide	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
35598-12010	Sleeve, Parking Lock	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90105-08068	Bolt (For Transaxle Rear Cover Setting)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90105-08070	Bolt (For Pawl Stopper Plate)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90105-08158	Plug(For Fuel Sub-Tank)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90201-12028	Washer, Plate (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90311-12002	Oil Seal, Type T	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90464-00617	Clamp(For Resistive Cord)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90508-21003	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90524-11001	Spring, Retainer (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
90560-20006	Spacer (For Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91551-C0835	Bolt (For Rear Differential Carrier)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91611-60814	Bolt	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91611-G0612	Bolt	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
91651-40816	BOLT	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
94110-50800	Nut(For Repair Actuator Set)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Throttle Link & Valve Lever (Atm) ([10.1989 - ] A241L,A241E (8910- )ATM)

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 207
Collected: 2026-08-02
