| 17308-74070 |
Hose Sub-Assy, Vacuum(For Idle-Up) |

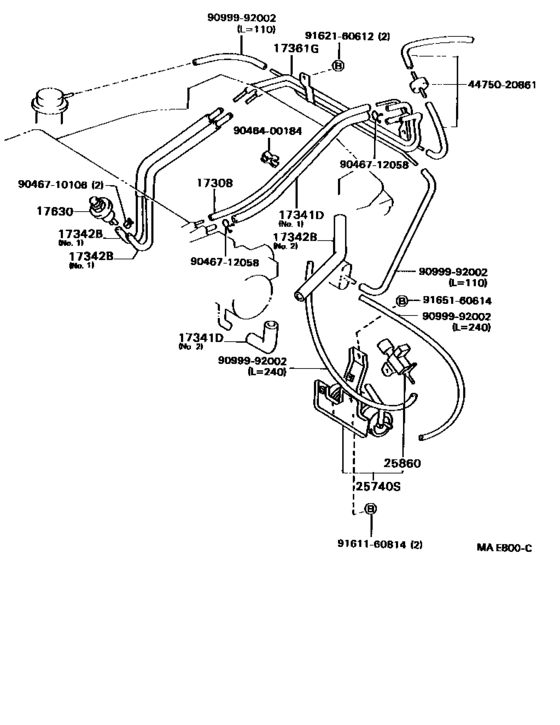

Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17341-74140 |
Hose, No.1(For Idle-Up) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17341-74150 |
Hose, No.1(For Idle-Up) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17342-74050 |
Hose, No.2(For Idle-Up) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17342-74180 |
Hose, No.2(For Idle-Up) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17342-88361 |
Hose, No.2(For Idle-Up) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17361-74040 |
Tube, Air(For Idle-Up) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17630-16040 |
Valve Assy, Air Control |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 17630-70020 |
Valve Assy, Air Control |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 25740-74010 |
Valve Assy, Air Control(For Idle Speed Control) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 25860-74020 |
Valve Assy, Vacuum Switching, No.1 |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 44750-20861 |
Hose Assy, Vacuum |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 90464-00184 |
Clamp, Vacuum Tube |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 90467-10106 |
Clip, No.1(For Idle-Up Hose) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 90467-12058 |
Clamp Or Clip(For Radiator Reserve Tank Hose) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 90999-92002 |
Air Hose (300 mm) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 91611-60814 |
Bolt |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 91621-60612 |
BOLTWWASHER |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 91621-J0612 |
BOLT W-WASHER |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 91651-60614 |
Bolt |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
| 96132-51000 |
Clip Or Clamp(For Ventilation Hose) |
Vacuum Piping ([08.1991 - ] (9108- )3SGE) |
