Search › Model › ST181

ST181

Toyota CARINA · 1989 · 5,602 parts · 198 categories

5,602 items

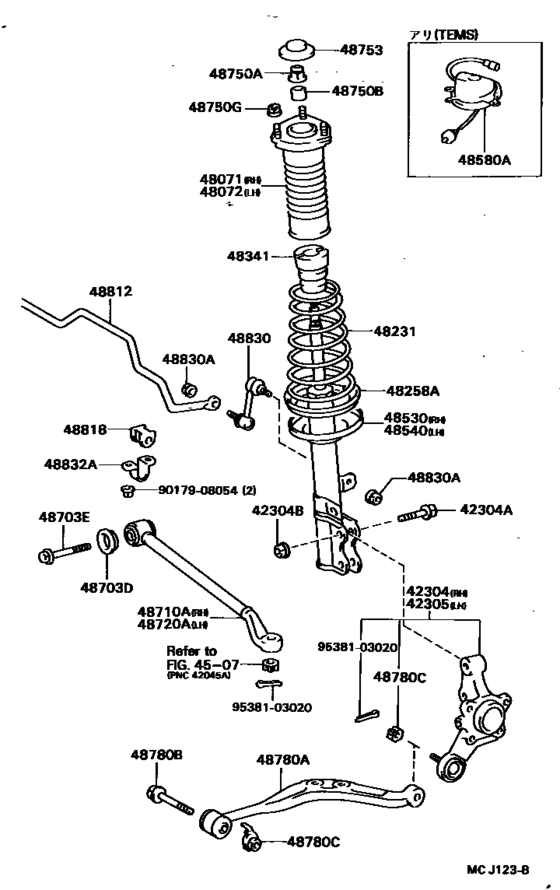

Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183) 39

#	OEM	Part name
42304	42304-29015	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-29035	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-29015	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-29035	Carrier Sub-Assy, Rear Axle, Lh
48071	48071-20080	Support Sub-Assy, Rear Suspension, Rh
48072	48072-20020	Support Sub-Assy, Rear Suspension, Lh
48231	48231-2B730	Spring, Coil, Rear
48231	48231-2D030	Spring, Coil, Rear
48231	48231-2G470	Spring, Coil, Rear Rh
48258	48258-32010	Insulator, Rear Coil Spring, Lower
48341	48341-20170	Bumper, Rear Spring
48530	48530-20510	Absorber Assy, Shock, Rear Rh
48530	48530-20520	Absorber Assy, Shock, Rear Rh
48540	48540-20510	Absorber Assy, Shock, Rear Lh
48540	48540-20520	Absorber Assy, Shock, Rear Lh
48703	90209-13005	Washer(For Rear Suspension Arm)
48703	90105-12192	Bolt(For Rear Suspension Arm)
48710	48710-20120	Arm Assy, Rear Suspension, No.1 Rh
48750	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48750	90387-15012	Collar(For Rear Support To Rear Shock Absorber)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48750	90179-08122	Nut(For Rear Suspension Support)
48753	48753-12010	Cover, Rear Suspension Support
48780	48780-20070	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90171-12008	Nut(For Strut Rod)
48780	90179-12065	Nut(For Strut Rod)
48812	48812-20500	Bar, Stabilizer, Rear
48812	48812-20620	Bar, Stabilizer, Rear
48818	48818-20200	Bush, Stabilizer, Rear
48818	48818-20240	Bush, Stabilizer, Rear
48830	48830-20010	Link Assy, Rear Stabilizer
48830	90179-10054	Nut, No.1 (For Center Support Bearing)
48832	48832-20070	Bracket, Rear Stabilizer Bar, No.1
9017908054	90179-08054	Nut (For Connecting Rod Swivel)
9538103020	95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)

OEM	Part name	Category
42304-29015	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
42304-29035	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
42305-29015	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
42305-29035	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48071-20080	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48072-20020	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48231-2B730	Spring, Coil, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48231-2D030	Spring, Coil, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48231-2G470	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48258-32010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48341-20170	Bumper, Rear Spring	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48530-20510	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48530-20520	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48540-20510	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48540-20520	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48710-20120	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48753-12010	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48780-20070	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48812-20500	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48812-20620	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48818-20200	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48818-20240	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
48832-20070	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90105-12192	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90171-12008	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90179-08054	Nut (For Connecting Rod Swivel)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90179-10054	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90179-12065	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90209-13005	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90387-15012	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)
95381-03020	Pin, Cotter(For Reverse Shaft Restrict Pin)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST181,183)

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 198
Collected: 2026-08-02
