Search › Model › ST180

ST180

Toyota CARINA · 1989 · 5,589 parts · 196 categories

5,589 items

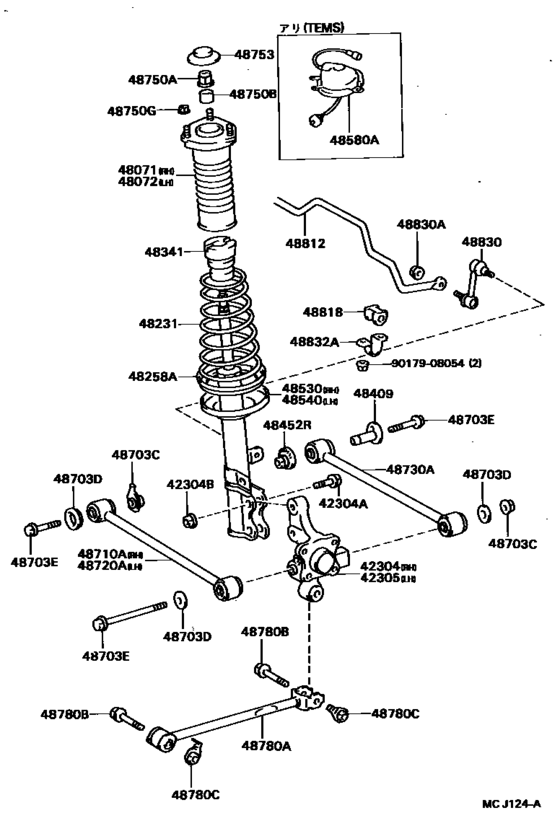

Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182) 49

#	OEM	Part name
42304	42304-20060	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-20080	Carrier Sub-Assy, Rear Axle, Rh
42304	42304-20270	Carrier Sub-Assy, Rear Axle, Rh
42304	90105-15001	Bolt (For Rear Axle Carrier)
42304	90179-15001	Nut (For Rear Axle Carrier)
42305	42305-20060	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-20080	Carrier Sub-Assy, Rear Axle, Lh
42305	42305-20270	Carrier Sub-Assy, Rear Axle, Lh
48071	48071-20080	Support Sub-Assy, Rear Suspension, Rh
48072	48072-20020	Support Sub-Assy, Rear Suspension, Lh
48231	48231-2B470	Spring, Coil, Rear
48231	48231-2G280	Spring, Coil, Rear Rh
48258	48258-32010	Insulator, Rear Coil Spring, Lower
48341	48341-20170	Bumper, Rear Spring
48409	48409-20040	Cam Sub-Assy, Rear Suspension Toe Adjust
48452	48452-32020	Plate, Rear Suspension Toe Adjust, No.2
48530	48530-20510	Absorber Assy, Shock, Rear Rh
48530	48530-20520	Absorber Assy, Shock, Rear Rh
48540	48540-20510	Absorber Assy, Shock, Rear Lh
48540	48540-20520	Absorber Assy, Shock, Rear Lh
48703	90179-12063	Nut(For Rear Suspension Arm)
48703	90179-14019	Nut
48703	90201-14017	Washer(For Rear Suspension Arm)
48703	90105-12132	Bolt(For Rear Suspension Arm)
48703	90105-14068	Bolt(For Rear Suspension Arm)
48703	90901-19001	Bolt(For Rear Suspension Arm)
48703	90109-12051	Bolt(For Rear Suspension Arm)
48710	48710-20110	Arm Assy, Rear Suspension, No.1 Rh
48710	48710-20150	Arm Assy, Rear Suspension, No.1 Rh
48730	48730-20090	Arm Assy, Rear Suspension, No.2
48730	48730-20110	Arm Assy, Rear Suspension, No.2
48750	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48750	90387-15012	Collar(For Rear Support To Rear Shock Absorber)
48750	90387-15027	Collar(For Rear Support To Rear Shock Absorber)
48750	90179-08122	Nut(For Rear Suspension Support)
48753	48753-12010	Cover, Rear Suspension Support
48780	48780-20020	Rod Assy, Strut, Rear
48780	90119-12131	Bolt(For Strut Rod)
48780	90080-11133	Bolt(For Strut Rod)
48780	90179-12062	Nut(For Rear Suspension Arm)
48780	90179-12065	Nut(For Strut Rod)
48812	48812-20420	Bar, Stabilizer, Rear
48812	48812-20440	Bar, Stabilizer, Rear
48818	48818-20190	Bush, Stabilizer, Rear
48818	48818-20200	Bush, Stabilizer, Rear
48830	48830-20010	Link Assy, Rear Stabilizer
48830	90179-10054	Nut, No.1 (For Center Support Bearing)
48832	48832-20070	Bracket, Rear Stabilizer Bar, No.1
9017908054	90179-08054	Nut (For Connecting Rod Swivel)

OEM	Part name	Category
42304-20060	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
42304-20080	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
42304-20270	Carrier Sub-Assy, Rear Axle, Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
42305-20060	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
42305-20080	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
42305-20270	Carrier Sub-Assy, Rear Axle, Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48071-20080	Support Sub-Assy, Rear Suspension, Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48072-20020	Support Sub-Assy, Rear Suspension, Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48231-2B470	Spring, Coil, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48231-2G280	Spring, Coil, Rear Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48258-32010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48341-20170	Bumper, Rear Spring	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48409-20040	Cam Sub-Assy, Rear Suspension Toe Adjust	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48452-32020	Plate, Rear Suspension Toe Adjust, No.2	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48530-20510	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48530-20520	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48540-20510	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48540-20520	Absorber Assy, Shock, Rear Lh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48710-20110	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48710-20150	Arm Assy, Rear Suspension, No.1 Rh	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48730-20090	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48730-20110	Arm Assy, Rear Suspension, No.2	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48753-12010	Cover, Rear Suspension Support	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48780-20020	Rod Assy, Strut, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48812-20420	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48812-20440	Bar, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48818-20190	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48818-20200	Bush, Stabilizer, Rear	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48830-20010	Link Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
48832-20070	Bracket, Rear Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90080-11133	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90105-12132	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90105-14068	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90105-15001	Bolt (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90109-12051	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90119-12131	Bolt(For Strut Rod)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-08054	Nut (For Connecting Rod Swivel)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-08122	Nut(For Rear Suspension Support)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-10054	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-12062	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-12063	Nut(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-12065	Nut(For Strut Rod)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-14019	Nut	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90179-15001	Nut (For Rear Axle Carrier)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90201-14017	Washer(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90387-15012	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90387-15027	Collar(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
90901-19001	Bolt(For Rear Suspension Arm)	Rear Spring & Shock Absorber ([09.1989 - ] (8909- )ST180,182)
