| 87124-28030 |
Clamp, Heater |

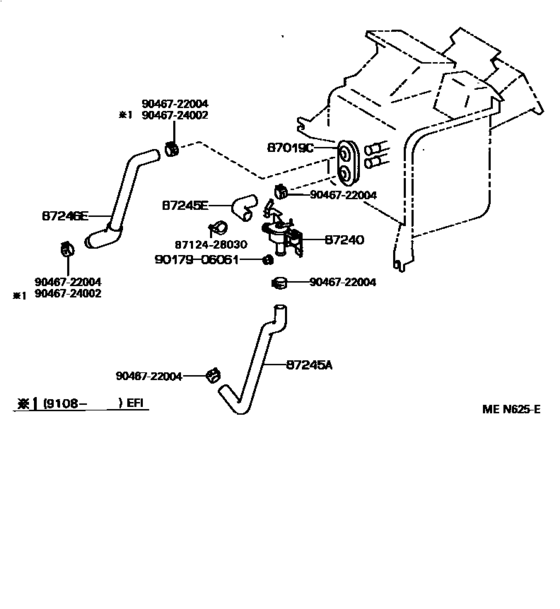

Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 87240-20350 |
Valve Assy, Heater Water |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 87245-2B450 |
Hose, Heater Water, Inlet A |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 87245-2B510 |
Hose, Heater Water, Inlet E |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 87245-2B550 |
Hose, Heater Water, Outlet E |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 87245-2B570 |
Hose, Heater Water, Outlet E |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 90179-06061 |
Direct |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 90179-06274 |
Nut |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 90467-21010 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 90467-22004 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 90467-24002 |
Clip(For Water By-Pass Hose No.2) |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
| 90480-01405 |
Grommet, Heater Hose |
Heating & Air Conditioning - Water Piping ([09.1989 - ] (8909- )) |
