ST180

Toyota CARINA · 1989 · 5,589 parts · 196 categories
ST180 ×

← Back to categories

5,589 items

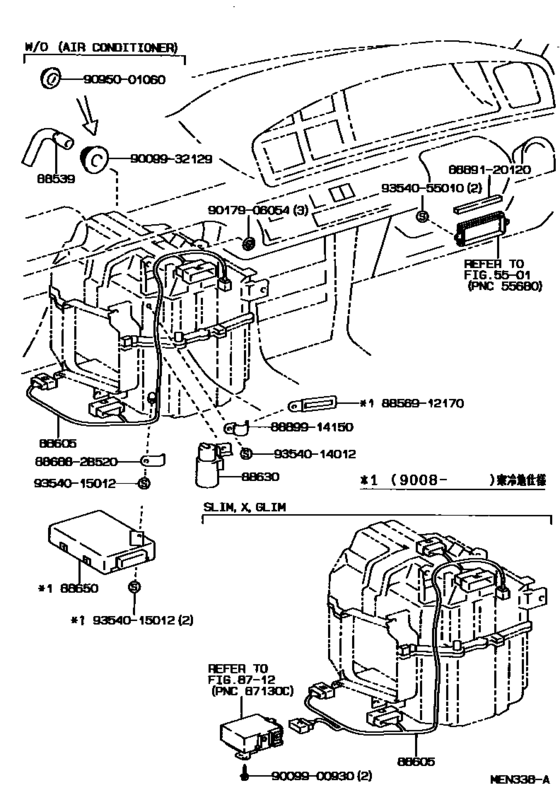

Heating & Air Conditioning - Cooler Unit ([09.1989 - 08.1991] (8909-9108)) 25
#OEMPart name
88539 88539-22110 Hose, Cooler Unit Drain, No.1
88605 88605-2D080 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D081 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D090 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D060 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D061 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D070 Harness Sub-Assy, Cooler Wiring, No.1
88630 88630-20230 Relay Assy, Cooler
88650 88650-20660 Amplifier Assy, Cooler Stabilizer
88650 88650-2B140 Amplifier Assy, Cooler Stabilizer
88650 88650-2B070 Amplifier Assy, Cooler Stabilizer
88650 88650-2B150 Amplifier Assy, Cooler Stabilizer
886882 88688-2B520 Bracket, Cooler Diaphragm
8856912170 88569-12170 Clamp (for Cooler Relay)
8889120120 88891-20120 Packing (for Cooler)
8889914150 88899-14150 Cover, Evaporator
9009900930 90099-00930 New Genuine Part
9009932129 90099-32129 Grommet (For Cooler Unit Drain Hose)
9017906054 90179-06054 NUT
9017906054 90179-06314 NUT
9095001060 90950-01060 Plug, Hole, No.1(For Dash Panel)
9095001060 90950-01866 Plug, Hole(For Front Door Panel)
9354014012 93540-14012 Screw
9354015012 93540-15012 New Genuine Part
9354055010 93540-55010 SCREW
