ST180

Toyota CARINA · 1989 · 5,589 parts · 196 categories
ST180 ×

← Back to categories

5,589 items

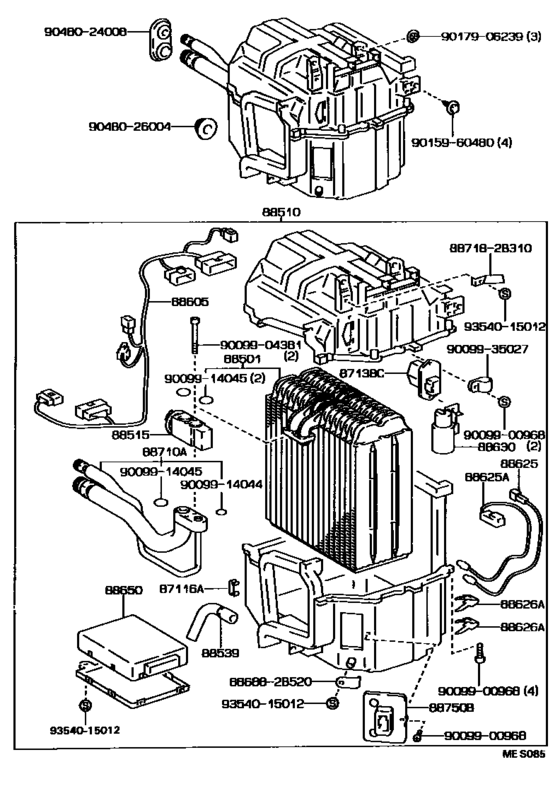

Heating & Air Conditioning - Cooler Unit ([08.1991 - ] (9108- )) 59
#OEMPart name
87116 87116-14010 Spring, Heater Case Fastening
87138 87138-20140 Resistor, Blower
87138 87138-20170 Resistor, Blower
87138 87138-20180 Resistor, Blower
87138 87138-20190 Resistor, Blower
87138 87138-20200 Resistor, Blower
88501 88501-20260 Evaporator Sub-Assy, Cooler, No.1
88501 88501-20261 Evaporator Sub-Assy, Cooler, No.1
88501 88501-20280 Evaporator Sub-Assy, Cooler, No.1
88501 88501-20281 Evaporator Sub-Assy, Cooler, No.1
88510 88510-2B060 Unit Assy, Cooler
88510 88510-2B100 Unit Assy, Cooler
88510 88510-2B200 Unit Assy, Cooler
88510 88510-2B210 Unit Assy, Cooler
88510 88510-2B240 Unit Assy, Cooler
88510 88510-2B250 Unit Assy, Cooler
88510 88510-2B120 Unit Assy, Cooler
88510 88510-2B190 Unit Assy, Cooler
88510 88510-2B220 Unit Assy, Cooler
88510 88510-2B230 Unit Assy, Cooler
88515 88515-14061 Valve, Cooler Expansion
88515 88515-33010 Valve, Cooler Expansion
88515 88515-14062 Valve, Cooler Expansion
88539 88539-22110 Hose, Cooler Unit Drain, No.1
88605 88605-2D080 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D081 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D090 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D060 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D061 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-2D070 Harness Sub-Assy, Cooler Wiring, No.1
88625 88625-20270 Thermistor, Cooler, No.1
88625 88625-20280 Thermistor, Cooler, No.1
88625 88625-20350 Thermistor, Cooler, No.1
88625 88625-60050 Thermistor, Cooler, No.1
88625 88625-60060 Thermistor, Cooler, No.1
88625 88625-20340 Thermistor, Cooler, No.1
88626 88626-28010 Holder, Thermistor
88630 88630-20230 Relay Assy, Cooler
88650 88650-20660 Amplifier Assy, Cooler Stabilizer
88650 88650-2B140 Amplifier Assy, Cooler Stabilizer
88650 88650-2B070 Amplifier Assy, Cooler Stabilizer
88650 88650-2B150 Amplifier Assy, Cooler Stabilizer
88710 88710-20190 Tube Assy, Air Conditioner
88710 88710-20270 Tube Assy, Air Conditioner
88750 88750-20010 Transistor Assy, Blower Resistor
886882 88688-2B520 Bracket, Cooler Diaphragm
887182 88718-2B310 Pipe, Cooler Refrigerant Suction, No.2
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009904381 90099-04381 BOLT
9009914044 90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)
9009914045 90099-14045 Ring, O(For Cooler Refrigerant Suction Hose)
9009935027 90099-35027 New Genuine Part
9015960480 90159-60480 New Genuine Part
9017906239 90179-06239 New Genuine Part
9017906239 90179-06314 NUT
9048024008 90480-24008 Grommet (For Cooler Unit)
9048024008 90099-32137 Grommet (For Cooler Unit)
9048026004 90480-26004 Grommet, Heater Hose
9354015012 93540-15012 New Genuine Part
