Search › Model › ST180

ST180

Toyota CARINA · 1989 · 5,589 parts · 196 categories
ST180 ×

← Back to categories

5,589 items

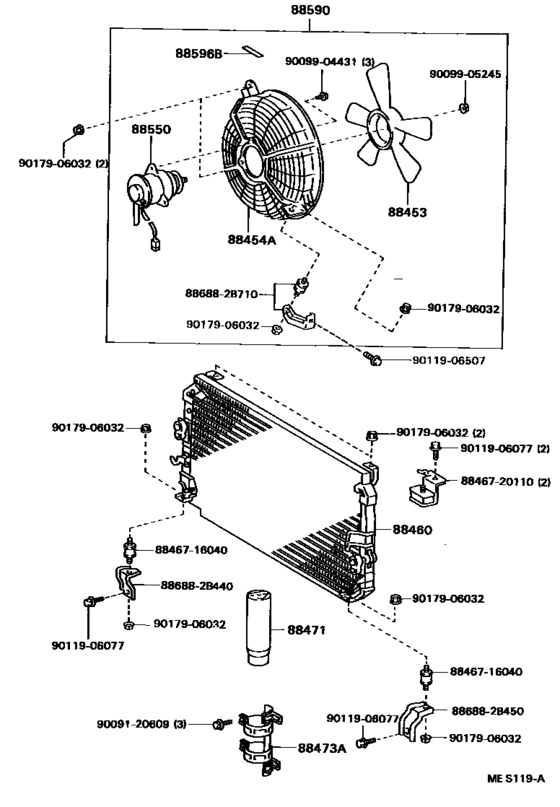

Heating & Air Conditioning - Cooler Piping ([08.1991 - ] (9108- )) 63
#OEMPart name
88375 88375-20010 Cap, Service Valve (For Cooler Pipe)
88453 88453-20060 Fan, Cooling (For Condenser)
88454 88454-20100 Shroud, Fan
88460 88460-20301 Condenser Assy, Cooler
88460 88460-20340 Condenser Assy, Cooler
88470 88475-12020 Bolt, Fuse
88471 88471-16040 Receiver & Dryer Assy, Cooler
88471 88471-16050 Receiver & Dryer Assy, Cooler
88473 88473-20070 Holder, Receiver
88473 88473-20100 Holder, Receiver
88550 88550-20070 Motor Assy, Blower (For Condenser)
88590 88590-20240 Blower Assy, W/shroud
88590 88590-20260 Blower Assy, W/shroud
88596 88596-24010 Plate, Caution, No.1
88645 88645-20040 Switch, Pressure No.1
88703 88703-20061 Hose Sub-Assy, Discharge
88704 88704-20111 Hose Sub-Assy, Suction
88706 88706-20070 Pipe Sub-Assy, Liquid
88706 88706-20091 Pipe Sub-Assy, Liquid
88711 88711-20730 Hose, Cooler Refrigerant Discharge, No.1
88711 88720-20380 Hose & Accessory, Air Conditioner
88711 88711-20790 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-2B121 Hose, Cooler Refrigerant Suction, No.1
88712 88712-2B640 Hose, Cooler Refrigerant Suction, No.1
88712 88712-2B180 Hose, Cooler Refrigerant Suction, No.1
88716 88716-2B830 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2D010 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2B840 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2D040 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2B860 Pipe, Cooler Refrigerant Liquid, E
88716 88716-2D021 Pipe, Cooler Refrigerant Liquid, E
88717 88717-2B050 Pipe, Cooler Refrigerant Suction, A
88717 88717-2B150 Pipe, Cooler Refrigerant Suction, A
88717 88717-2B090 Pipe, Cooler Refrigerant Suction, C
88717 88717-2B140 Pipe, Cooler Refrigerant Suction, C
91651 91651-B0835 BOLT
886882 88688-2B440 Bracket, Cooler Diaphragm
886882 88688-2B450 Bracket, Cooler Diaphragm
886882 88688-2B710 Bracket, Cooler Diaphragm
886882 88688-2B691 Bracket, Cooler Diaphragm
886882 88688-2B720 Bracket, Cooler Diaphragm
886882 88688-2B730 Bracket, Cooler Diaphragm
886882 88688-2B740 Bracket, Cooler Diaphragm
887182 88718-2B350 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2B360 Pipe, Cooler Refrigerant Suction, No.2
887182 88718-2B370 Pipe, Cooler Refrigerant Suction, No.2
8846716040 88467-16040 Insulator, Cooler Condenser Mounting
8846716040 88467-95701 Insulator, Cooler Condenser Mounting
8846720110 88467-20110 Cushion, Cooler Condenser, No.1
9009120609 90091-20609 BOLT
9009904431 90099-04431 New Genuine Part
9009905245 90099-05245 New Genuine Part
9011906077 90119-06077 Bolt
9011906507 90119-06507 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017908035 90179-08035 New Genuine Part
9165160845 91651-60845 Bolt(For Rocker Support Set)
9165160845 91651-B0845 Bolt, Flange (For Idler)
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9331514008 93315-14008 New Genuine Part
9338556025 93385-56025 New Genuine Part
